45'High Cube Reefer container

45HCReefer container rotating GIF animation - Prefix PIRU

Dimensions, weight and capacity

Internal dimensions	Length	13.102 mm	42'11 3/4 ft
	Width	2.290 mm	7'6 1/8 ft
	Height	2.525 mm	8'2 3/8 ft
	Height to load line	2.420 mm	7'9 5/8 ft
Door opening	Width	2.286 mm	7'6 ft
Door opening	Height	2.420 mm	8'3 3/4 ft
Weights	Max. Gross	32.500 kgs	71.648 lbs
	Tare	5.200 kgs	11.464 lbs
	Max. Payload	29.700 kgs	60.184 lbs
Capacity		72.4 cbm	2.556 cu.ft

Please note that above is only for your guidance, contact your shipping line in order to get detail information about a specific container.

Click to enlarge picture

45HCReefer container picture rotated 90 degrees - Prefix PIRU	45HCReefer container picture rotated 100 degrees - Prefix PIRU

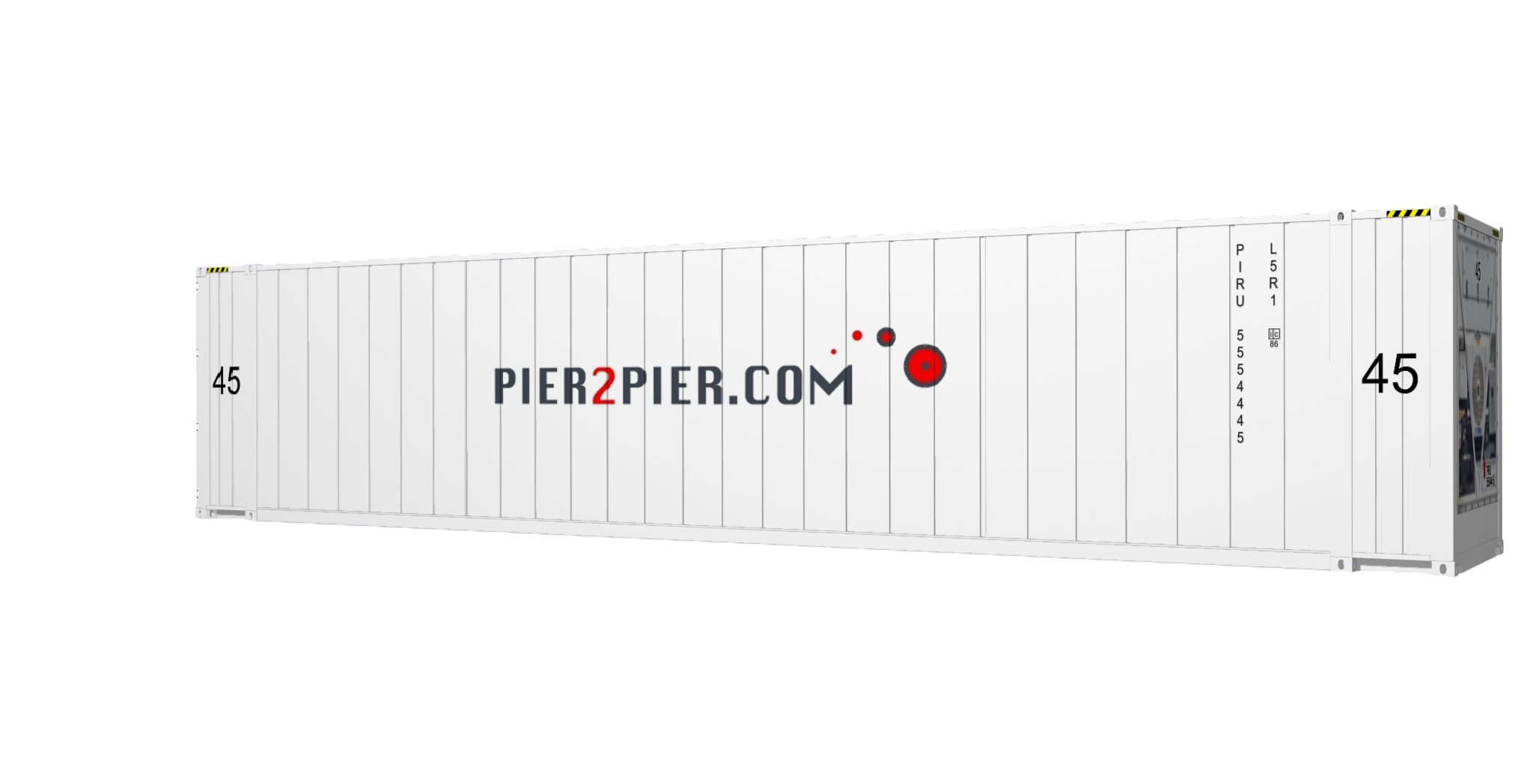

45HCReefer container picture rotated 110 degrees - Prefix PIRU	45HCReefer container picture rotated 120 degrees - Prefix PIRU
45HCReefer container picture rotated 130 degrees - Prefix PIRU	45HCReefer container picture rotated 140 degrees - Prefix PIRU

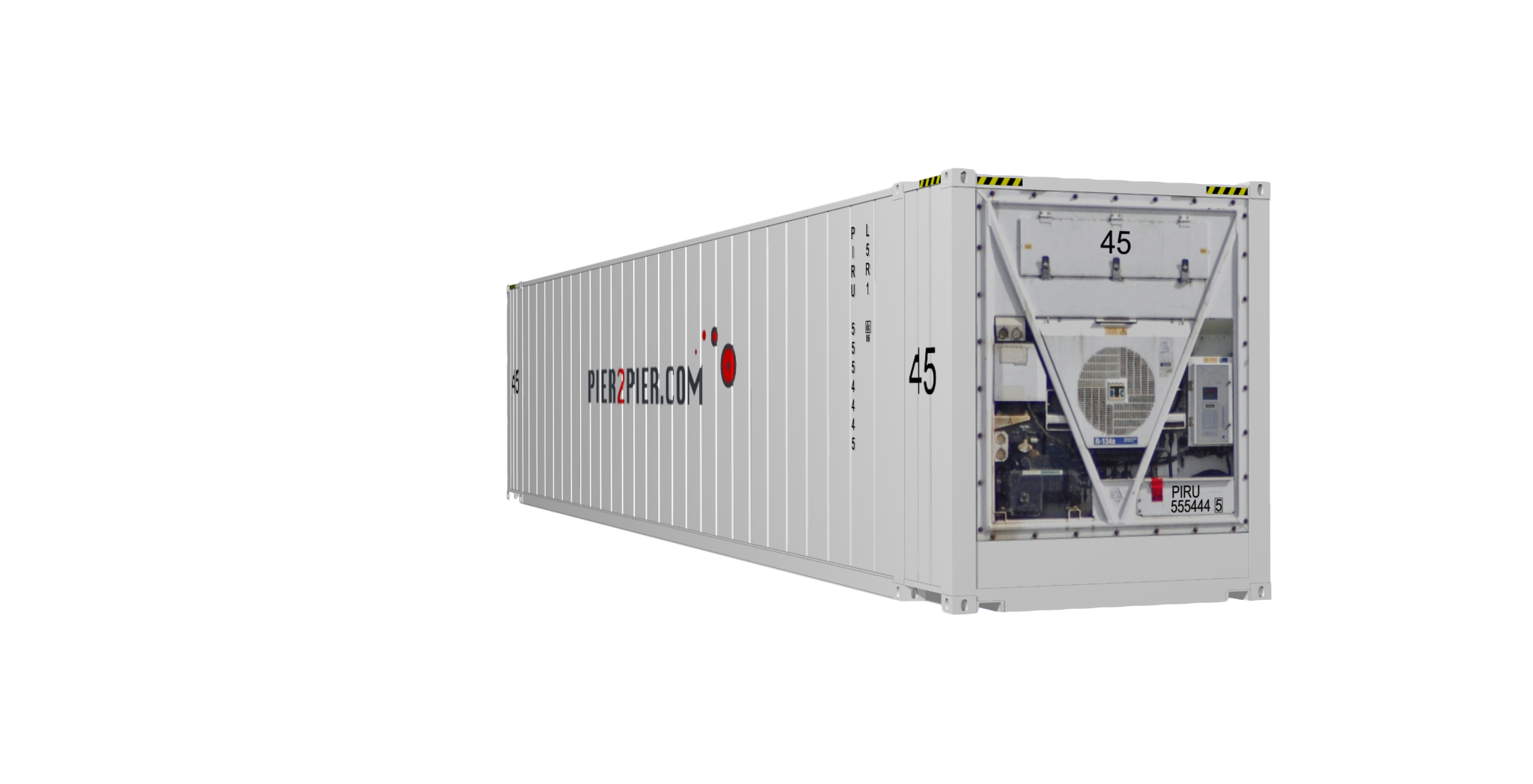

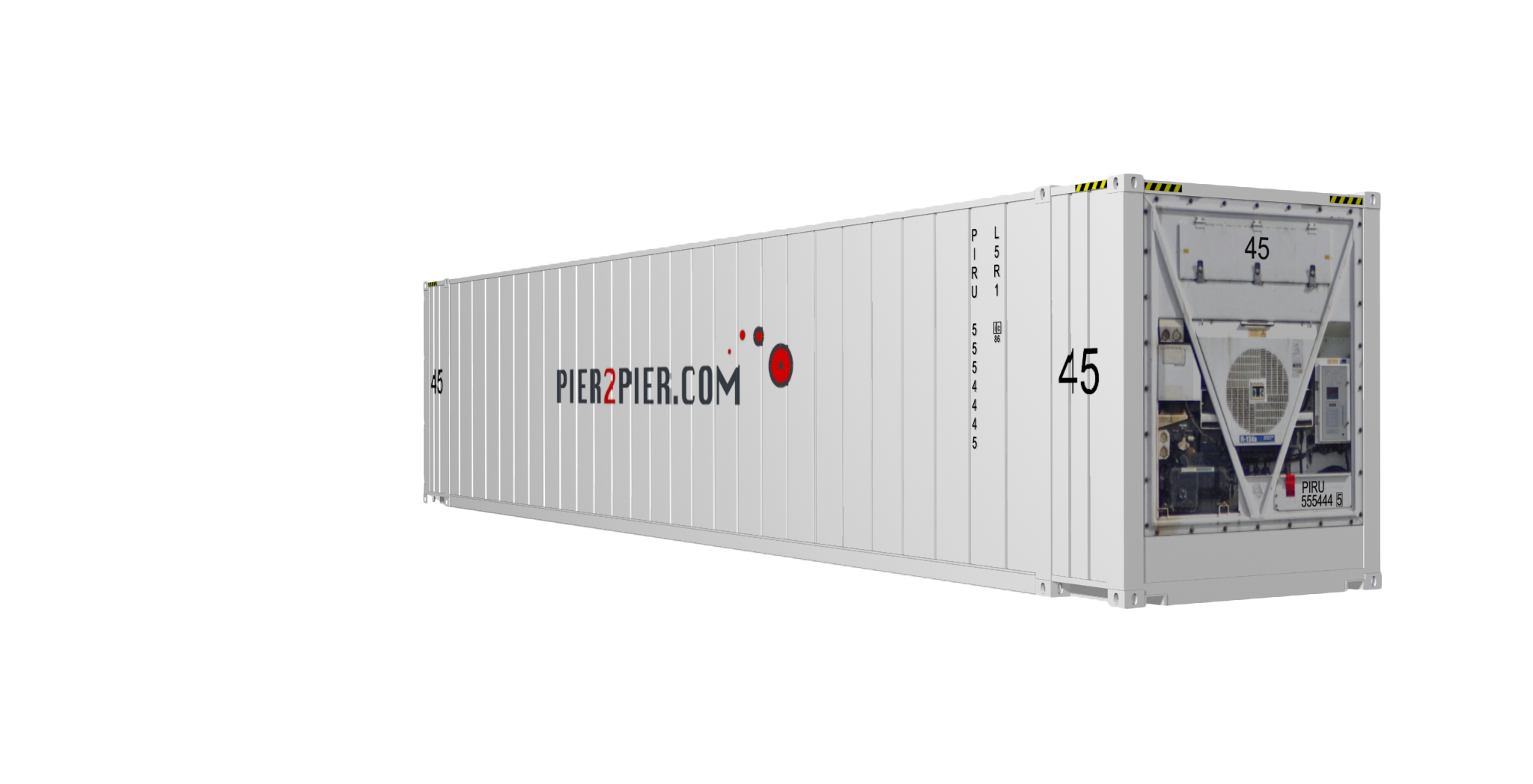

45HCReefer container picture rotated 150 degrees - Prefix PIRU	45HCReefer container picture rotated 160 degrees - Prefix PIRU

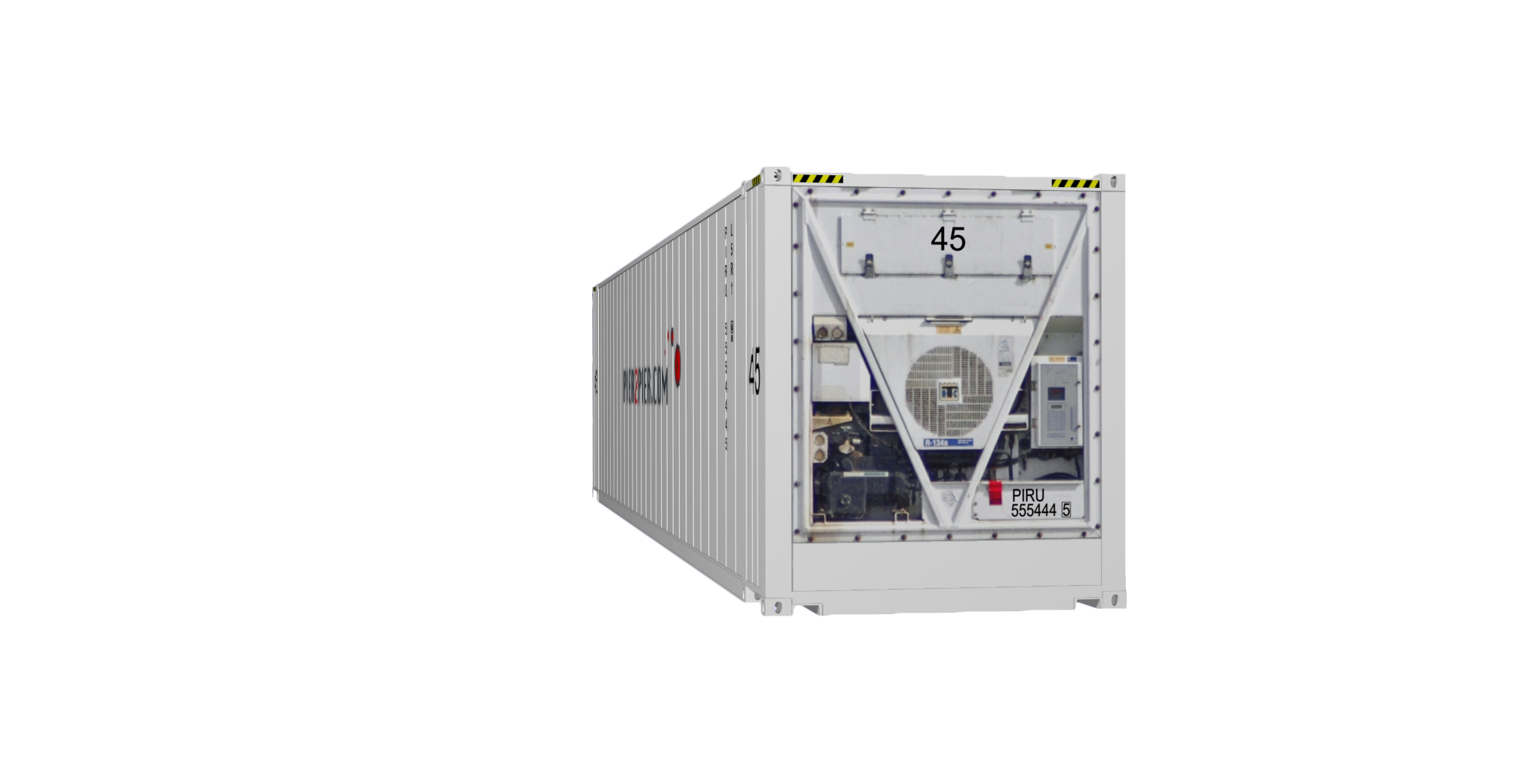

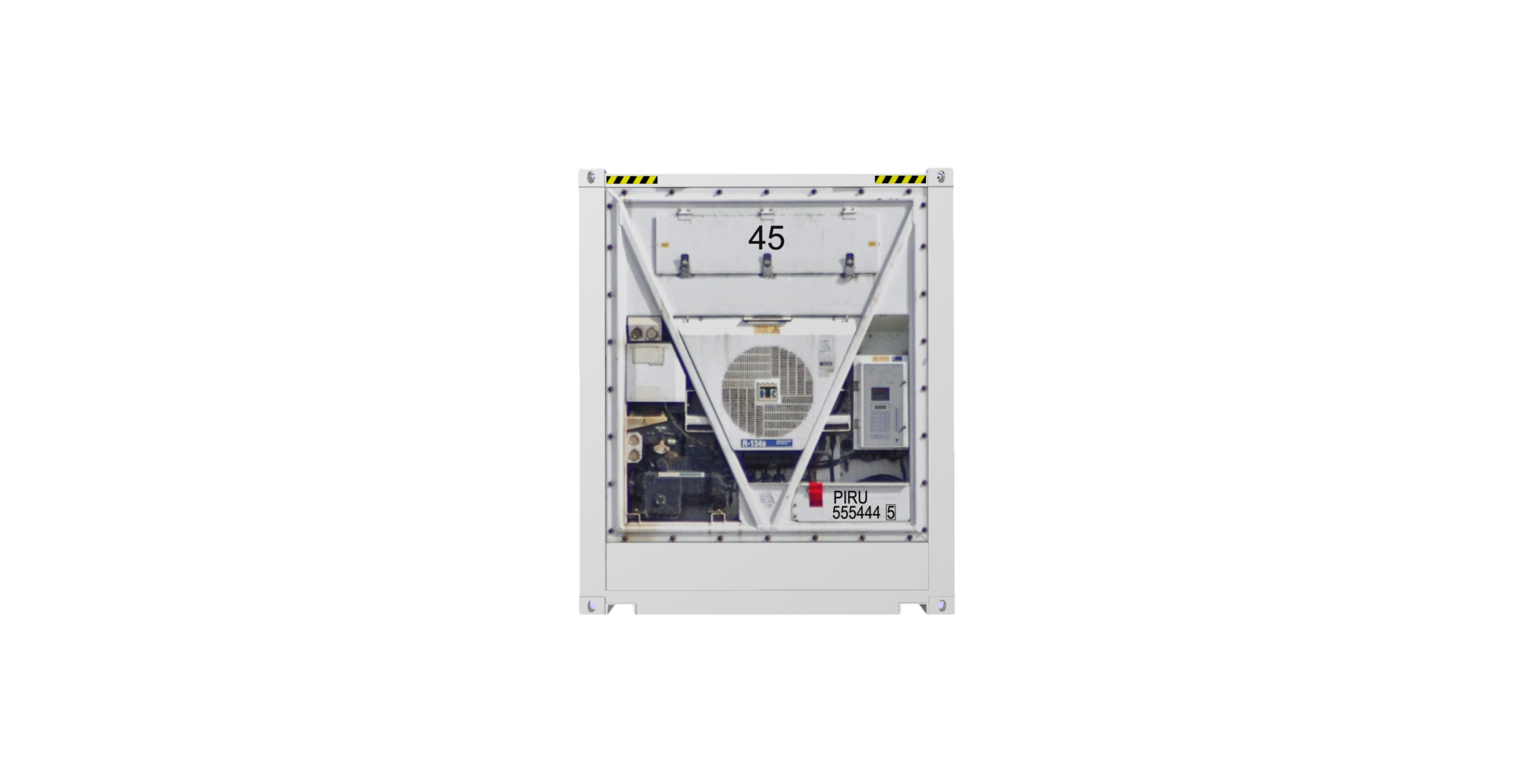

45HCReefer container picture rotated 170 degrees - Prefix PIRU	45HCReefer container picture rotated 180 degrees - Prefix PIRU

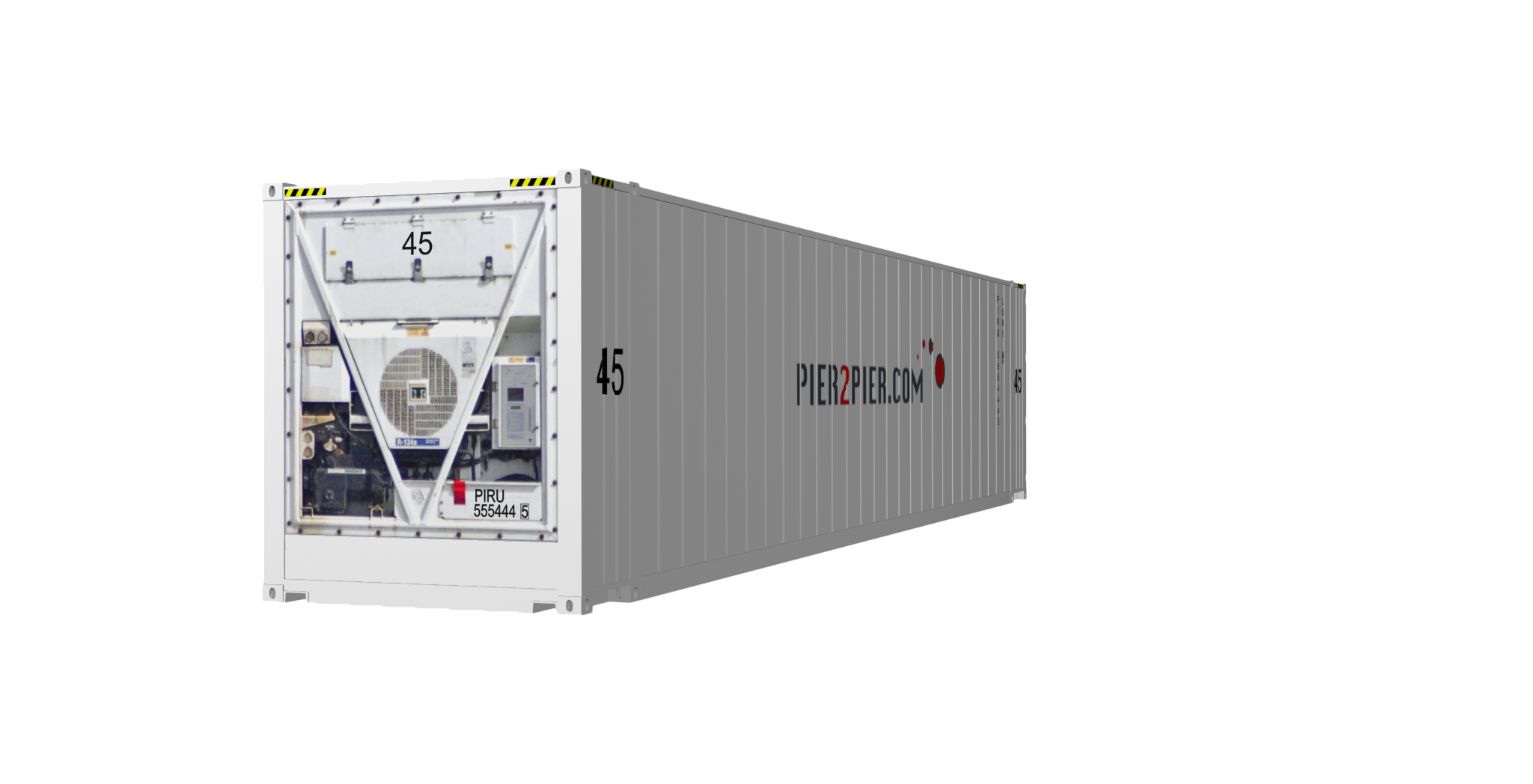

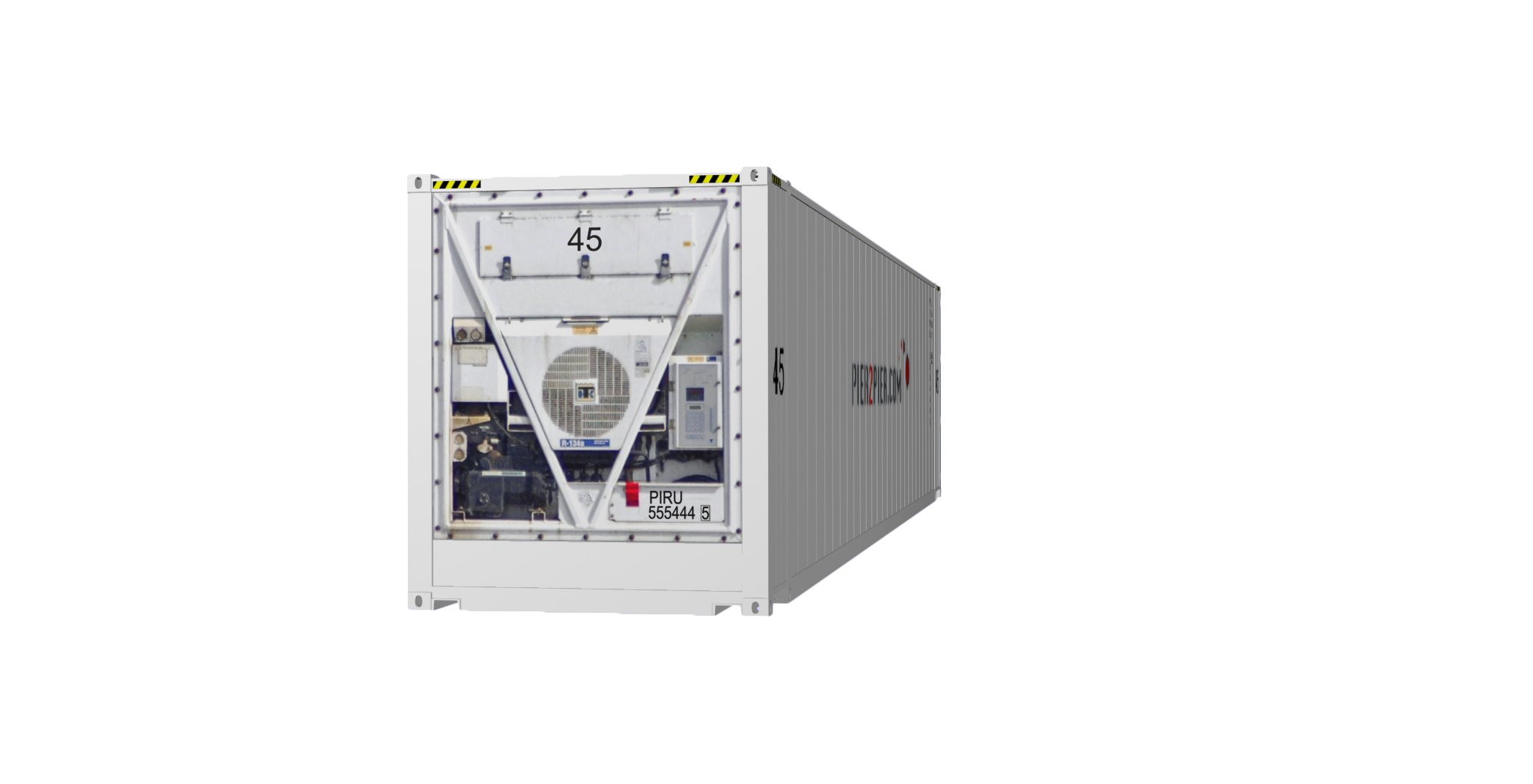

45HCReefer container picture rotated 190 degrees - Prefix PIRU	45HCReefer container picture rotated 200 degrees - Prefix PIRU

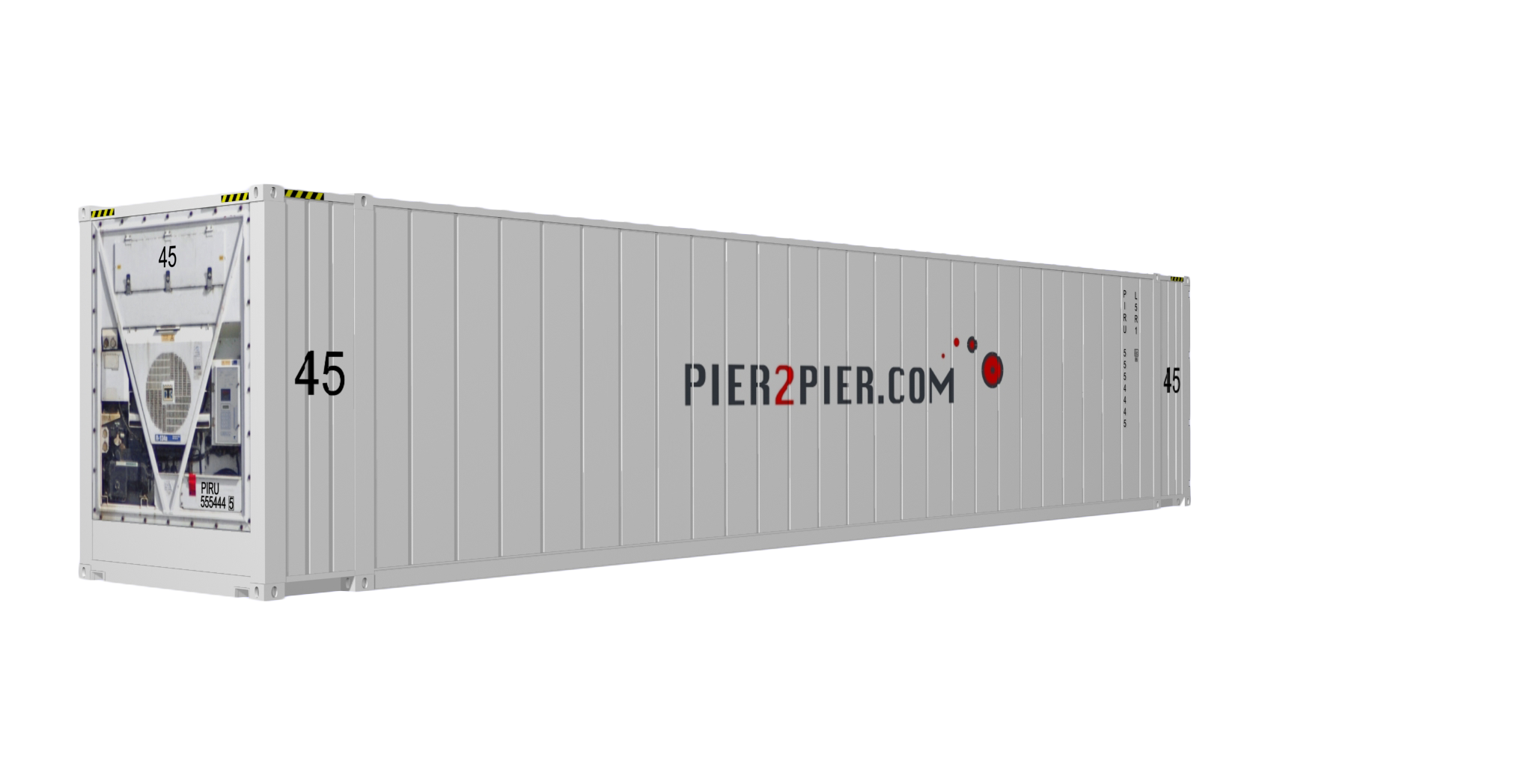

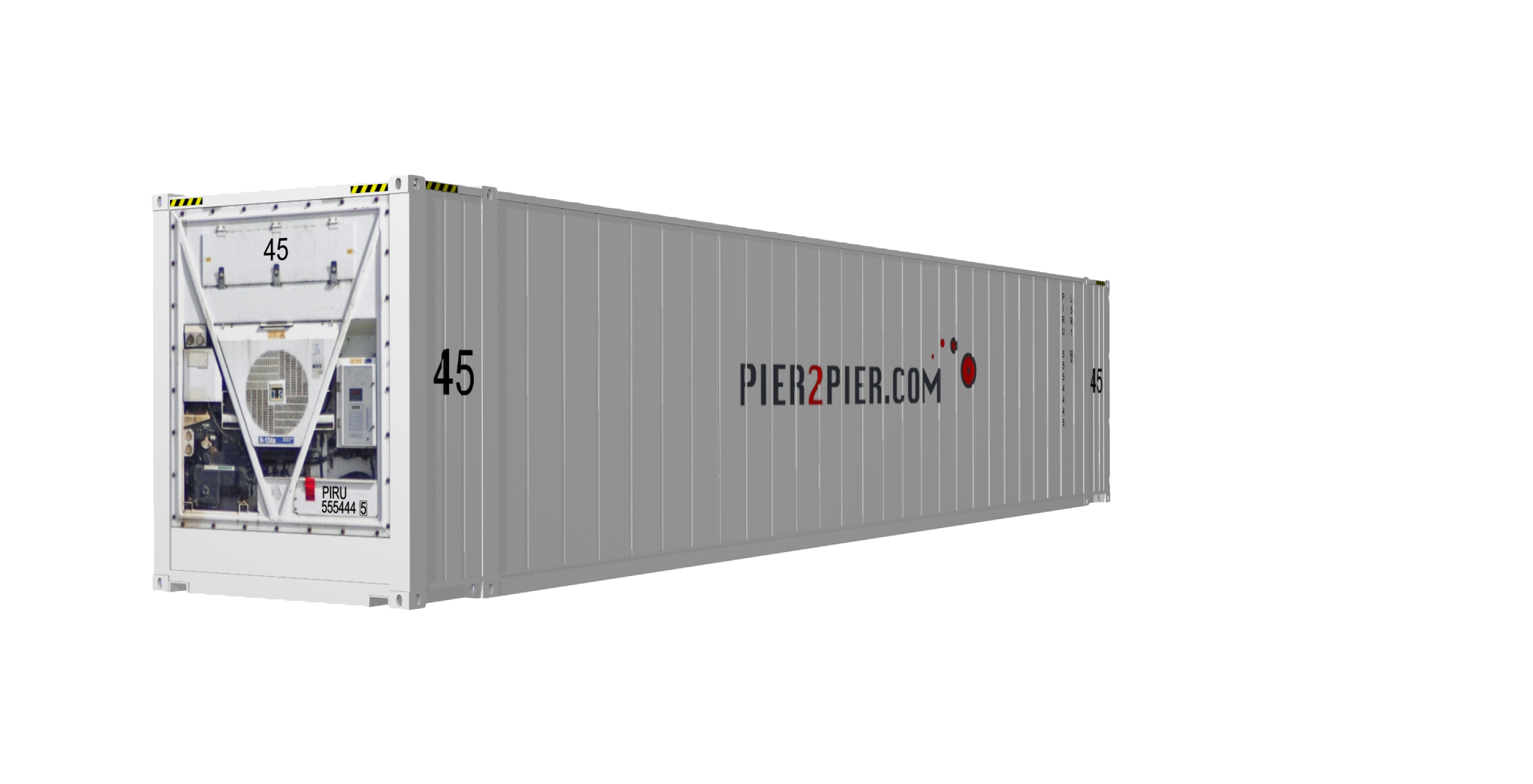

45HCReefer container picture rotated 210 degrees - Prefix PIRU	45HCReefer container picture rotated 220 degrees - Prefix PIRU

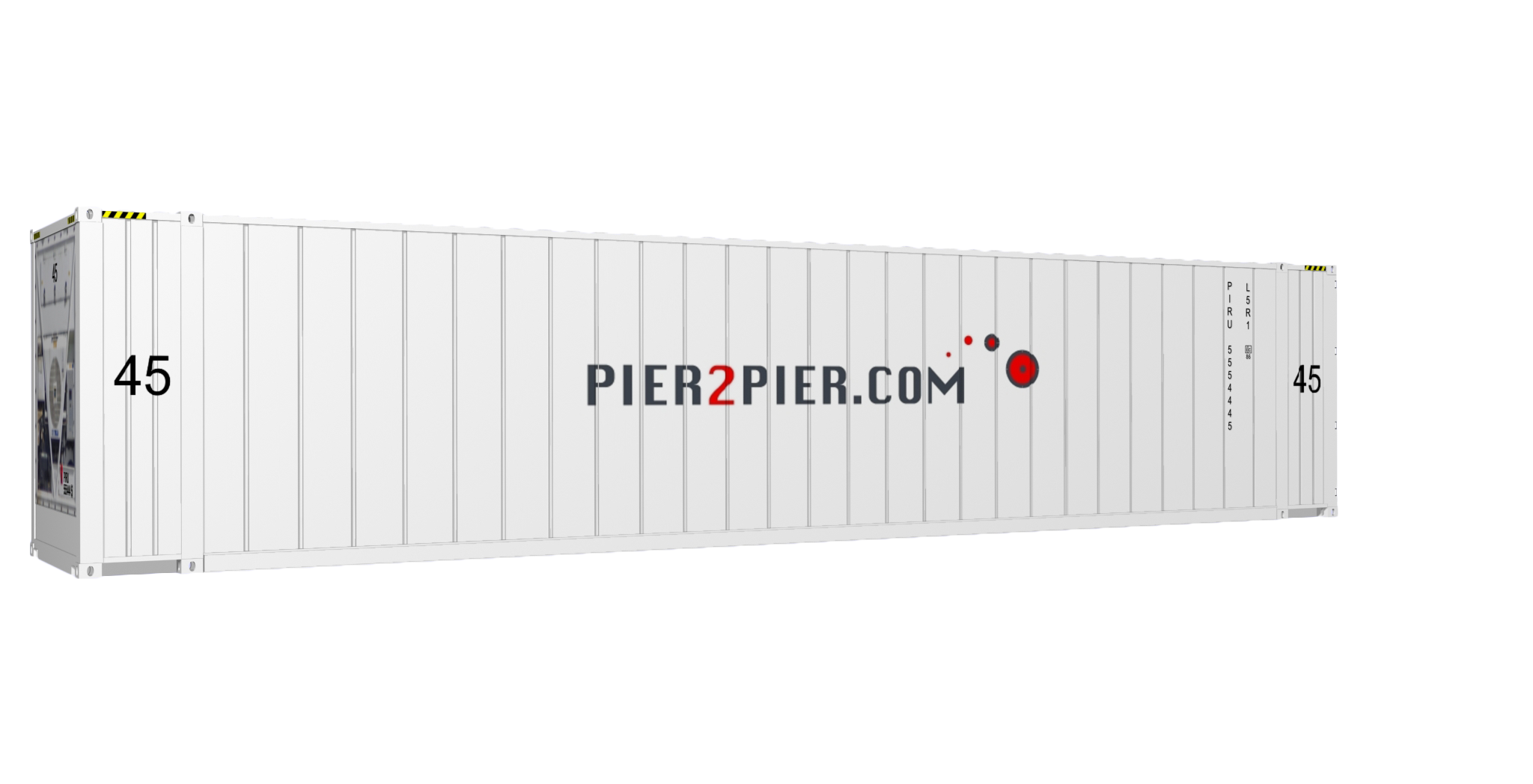

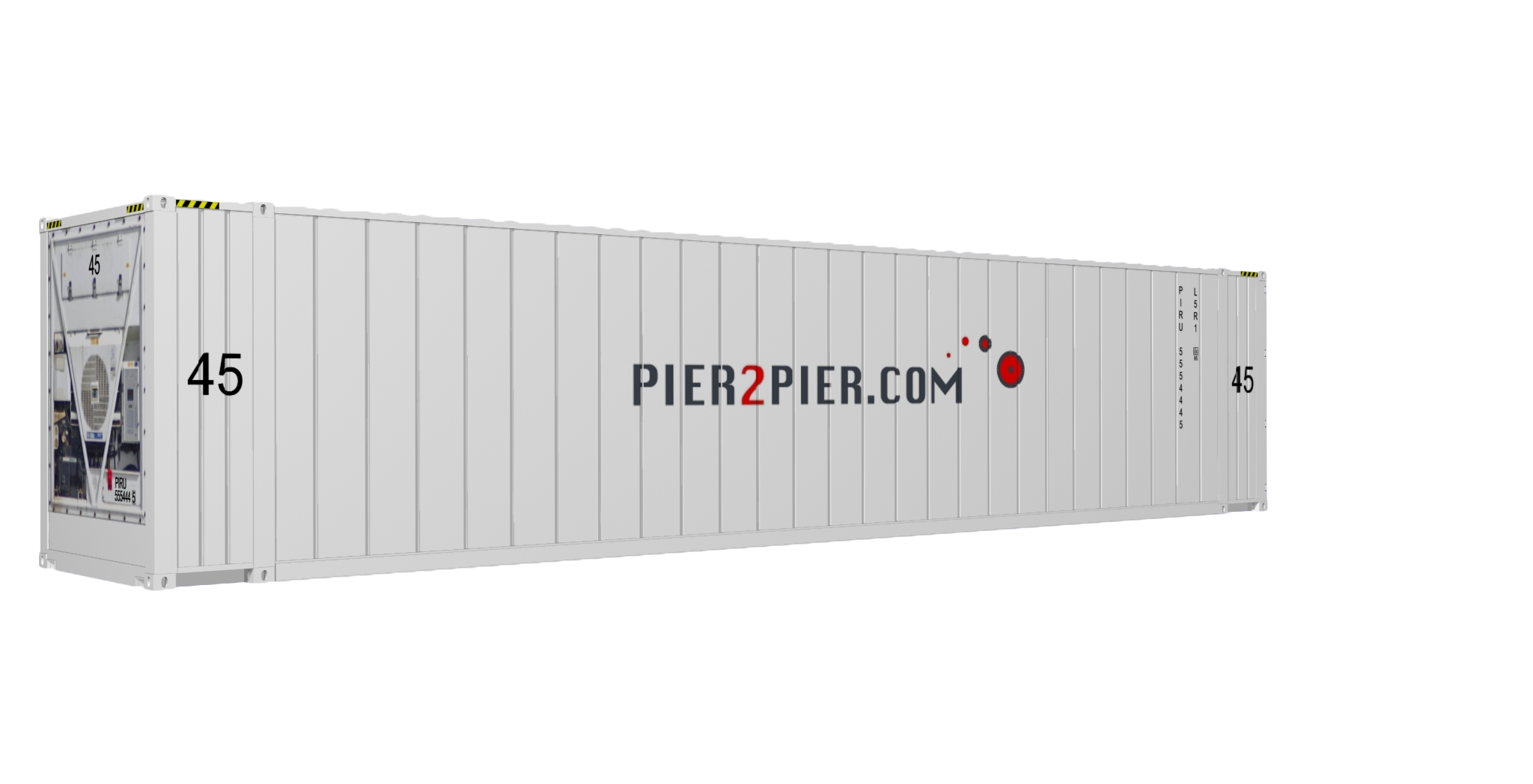

45HCReefer container picture rotated 230 degrees - Prefix PIRU	45HCReefer container picture rotated 240 degrees - Prefix PIRU

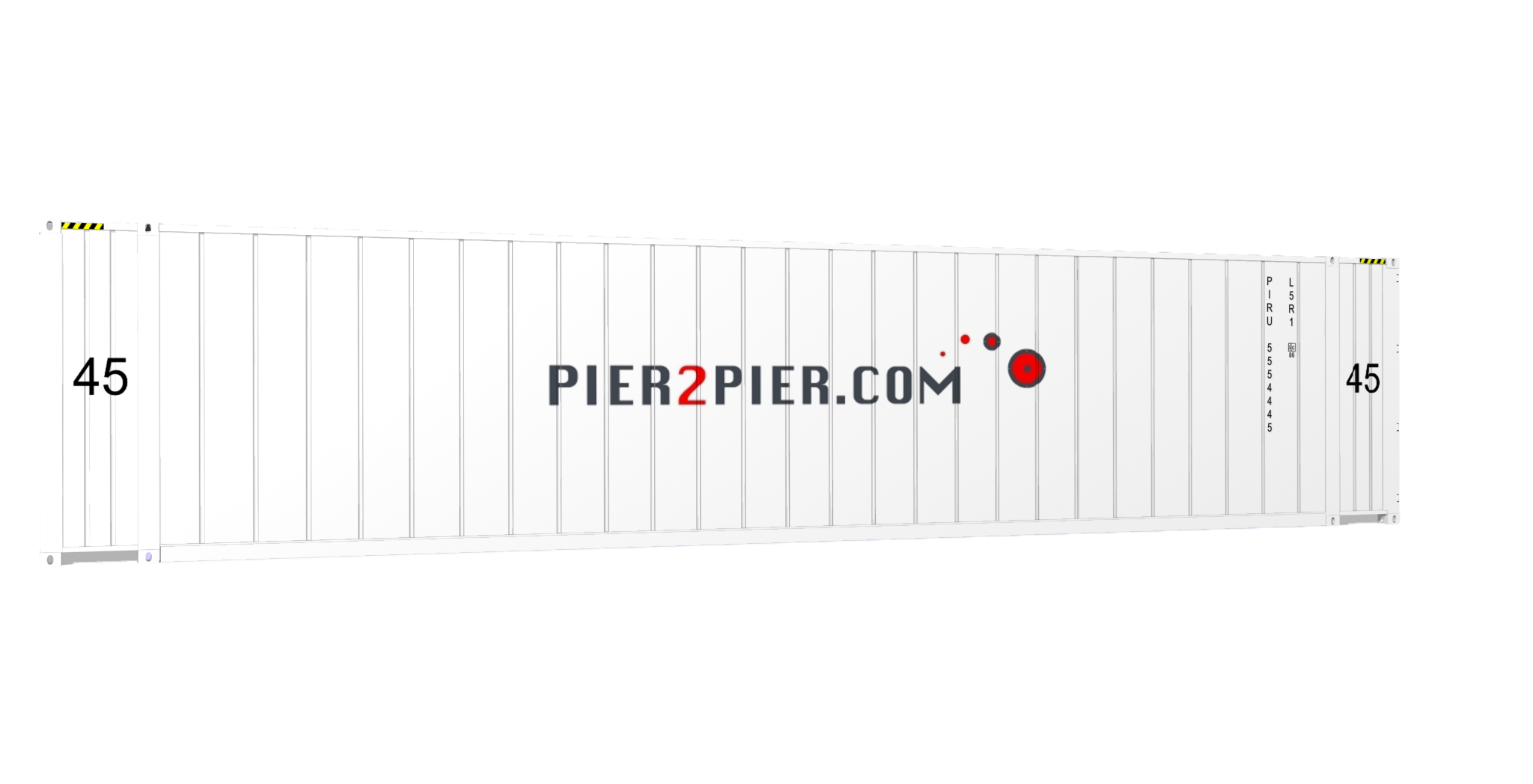

45HCReefer container picture rotated 250 degrees - Prefix PIRU	45HCReefer container picture rotated 260 degrees - Prefix PIRU
45HCReefer container picture rotated 270 degrees - Prefix PIRU	45HCReefer container picture rotated 280 degrees - Prefix PIRU

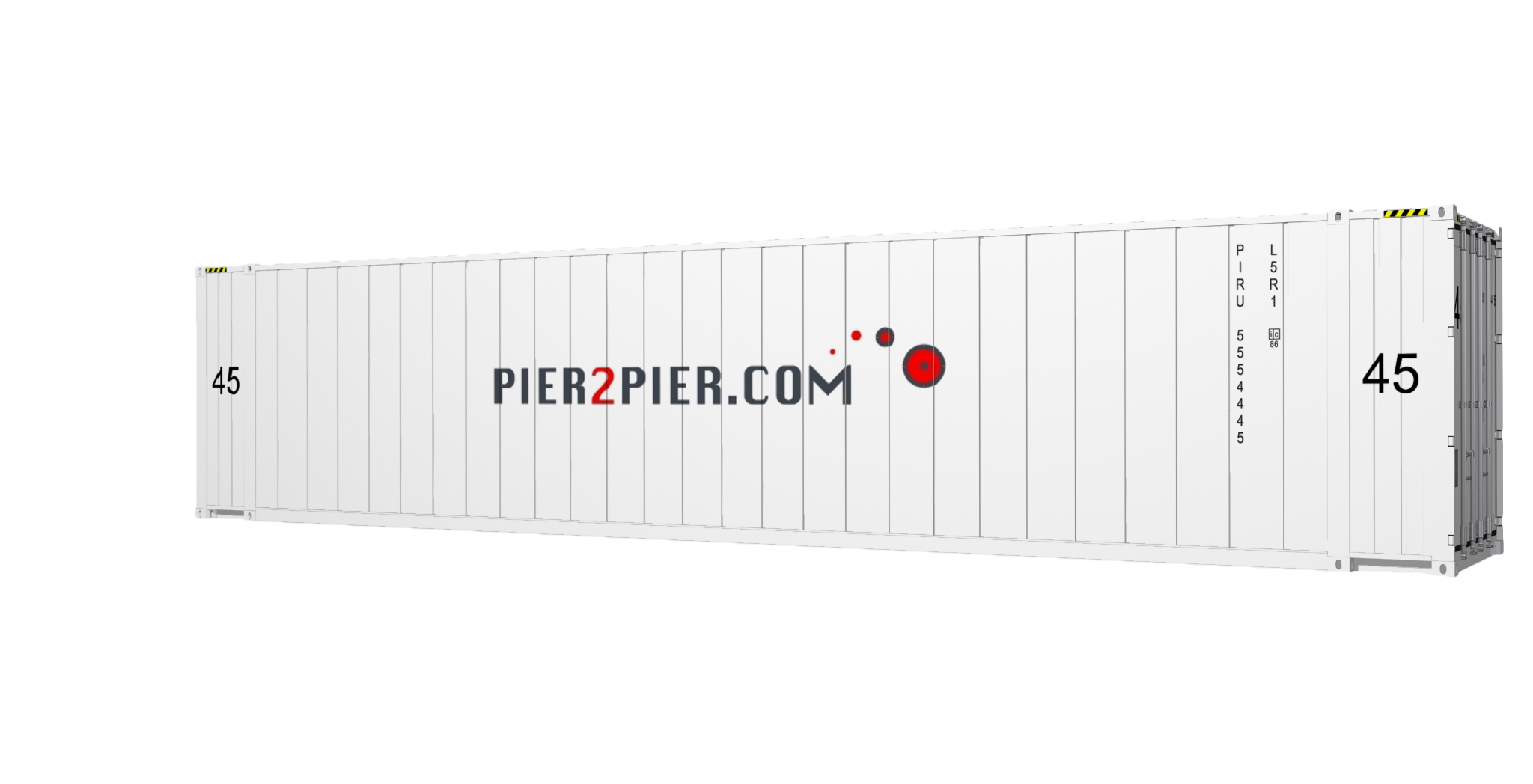

45HCReefer container picture rotated 290 degrees - Prefix PIRU	45HCReefer container picture rotated 300 degrees - Prefix PIRU

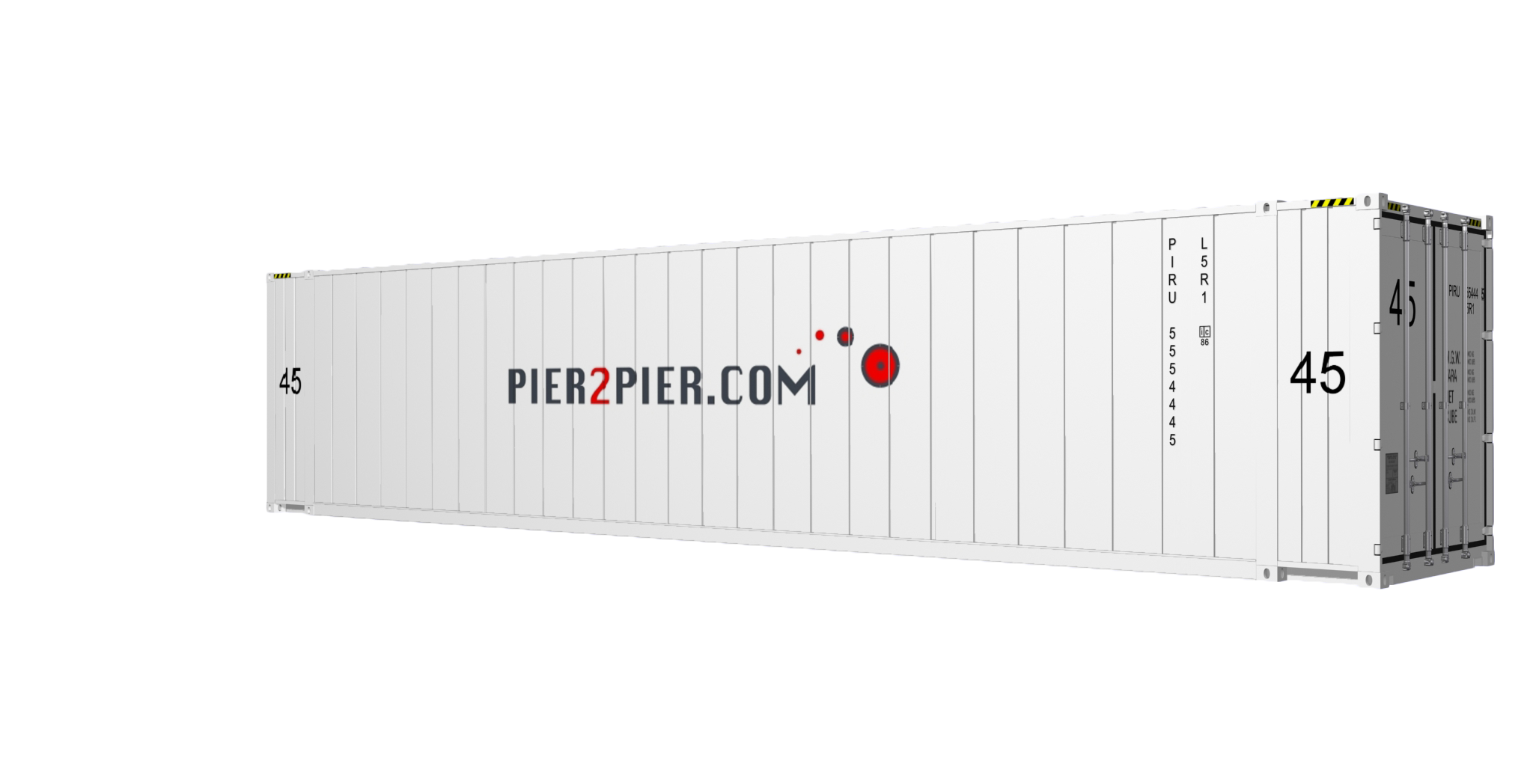

45HCReefer container picture rotated 310 degrees - Prefix PIRU	45HCReefer container picture rotated 320 degrees - Prefix PIRU

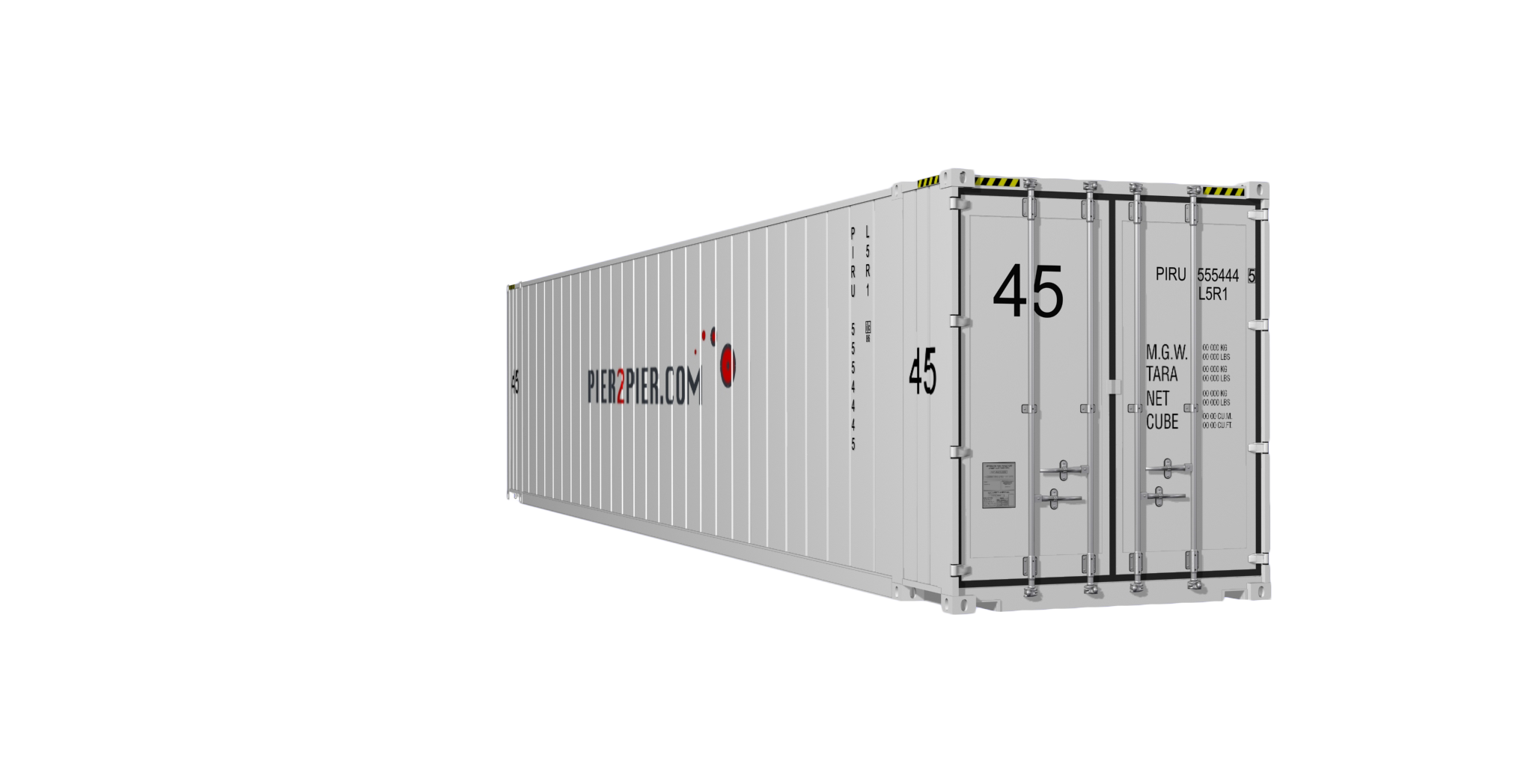

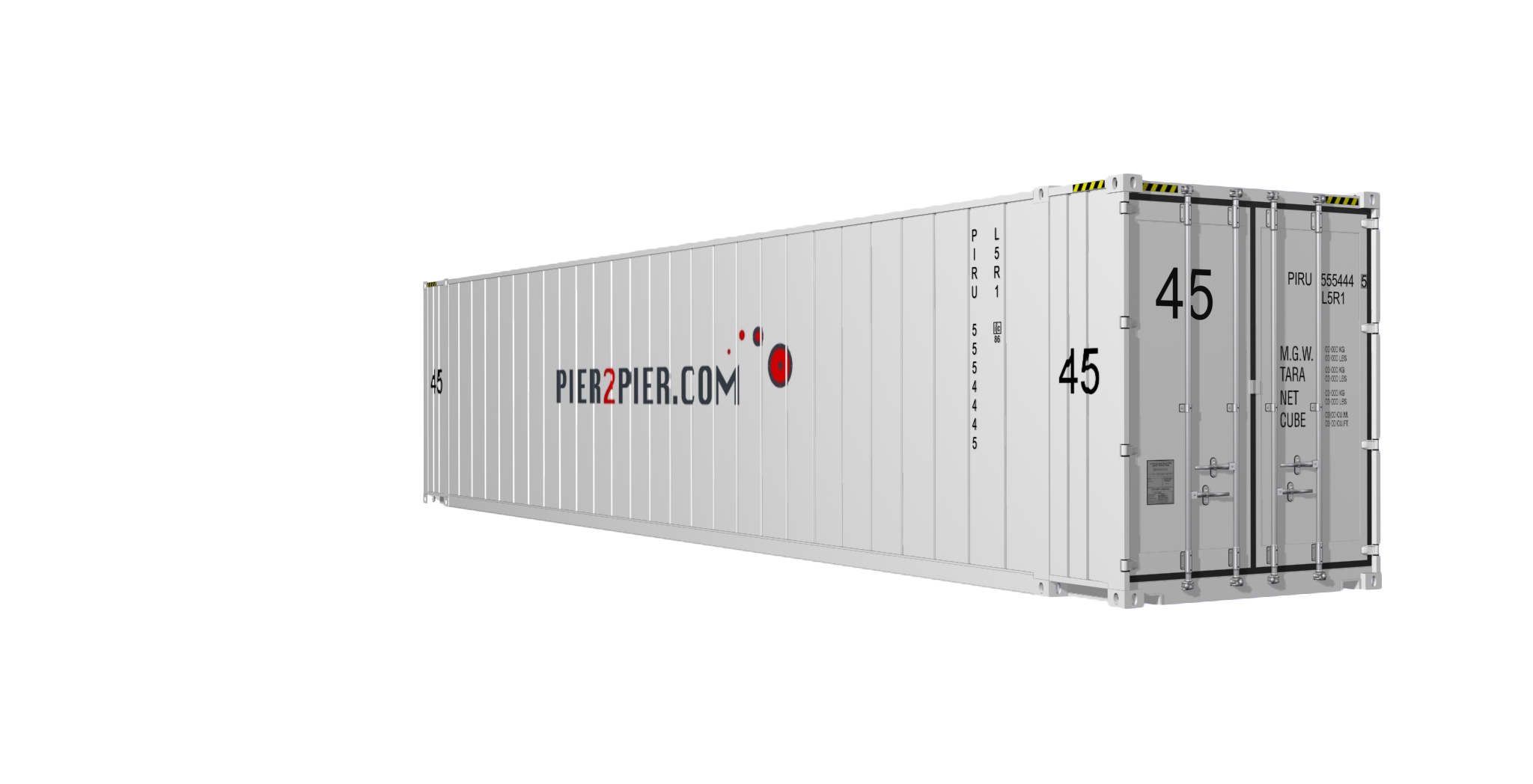

45HCReefer container picture rotated 330 degrees - Prefix PIRU	45HCReefer container picture rotated 340 degrees - Prefix PIRU

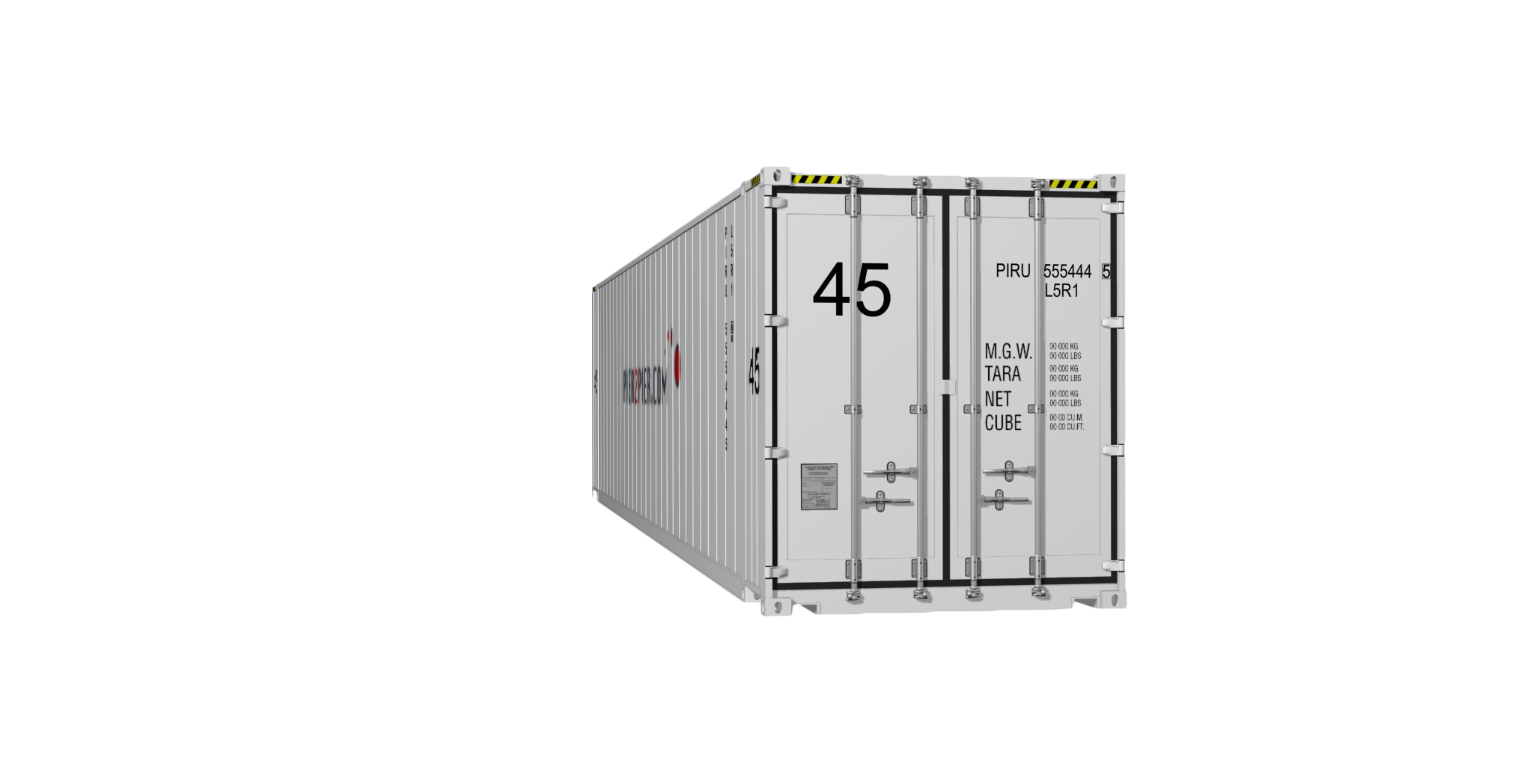

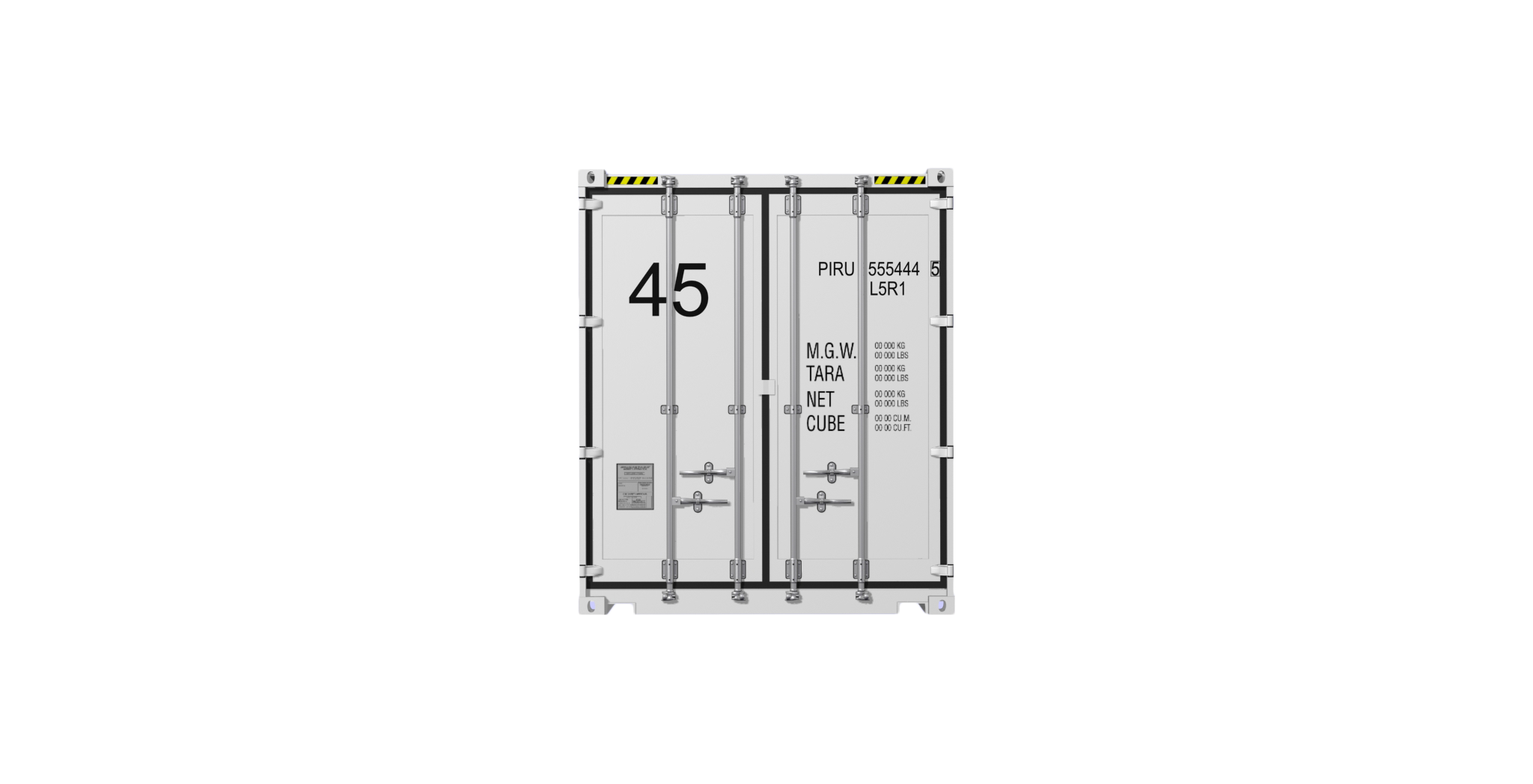

45HCReefer container picture rotated 350 degrees - Prefix PIRU	45HCReefer container picture rotated 0 degrees - Prefix PIRU

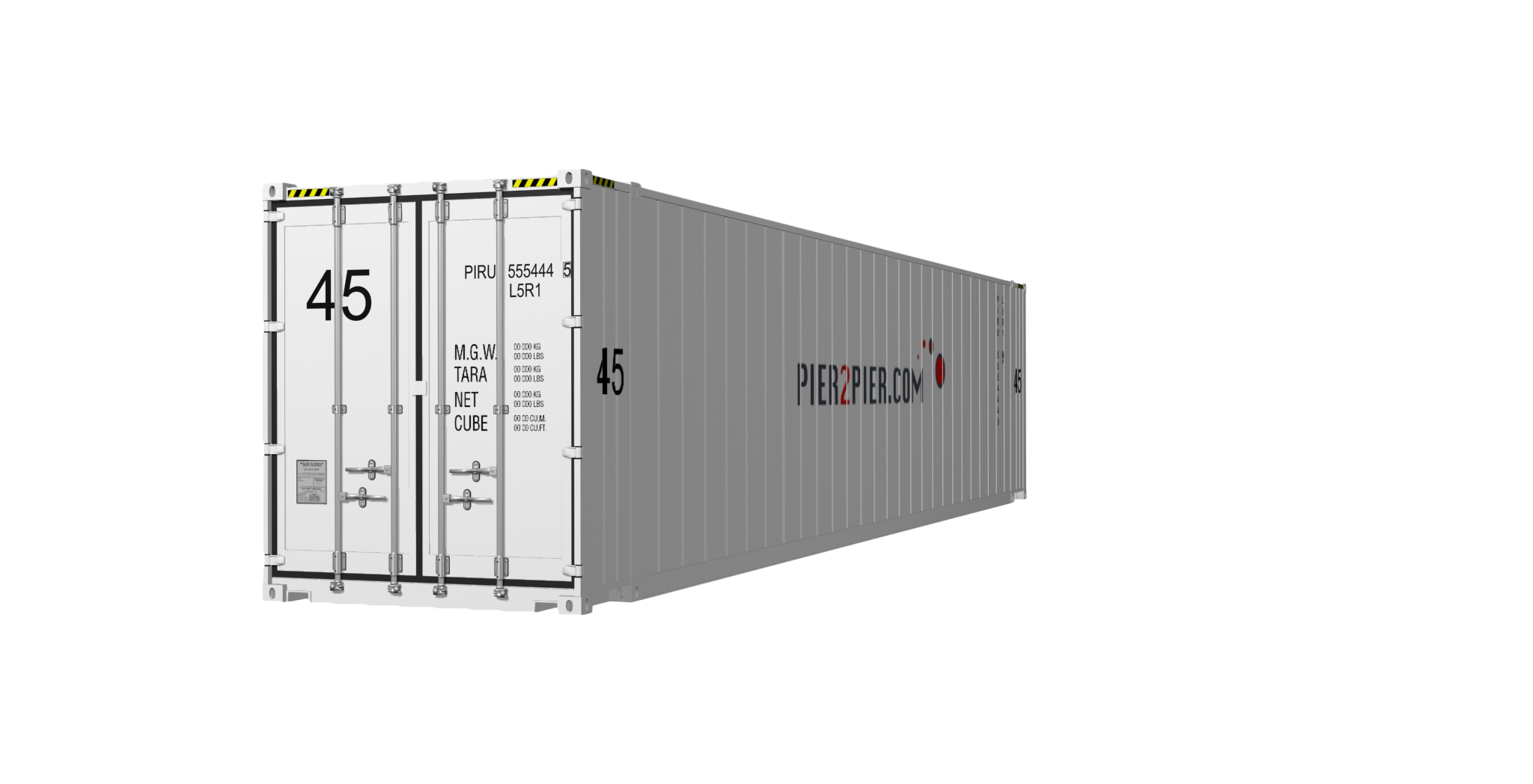

45HCReefer container picture rotated 10 degrees - Prefix PIRU	45HCReefer container picture rotated 20 degrees - Prefix PIRU

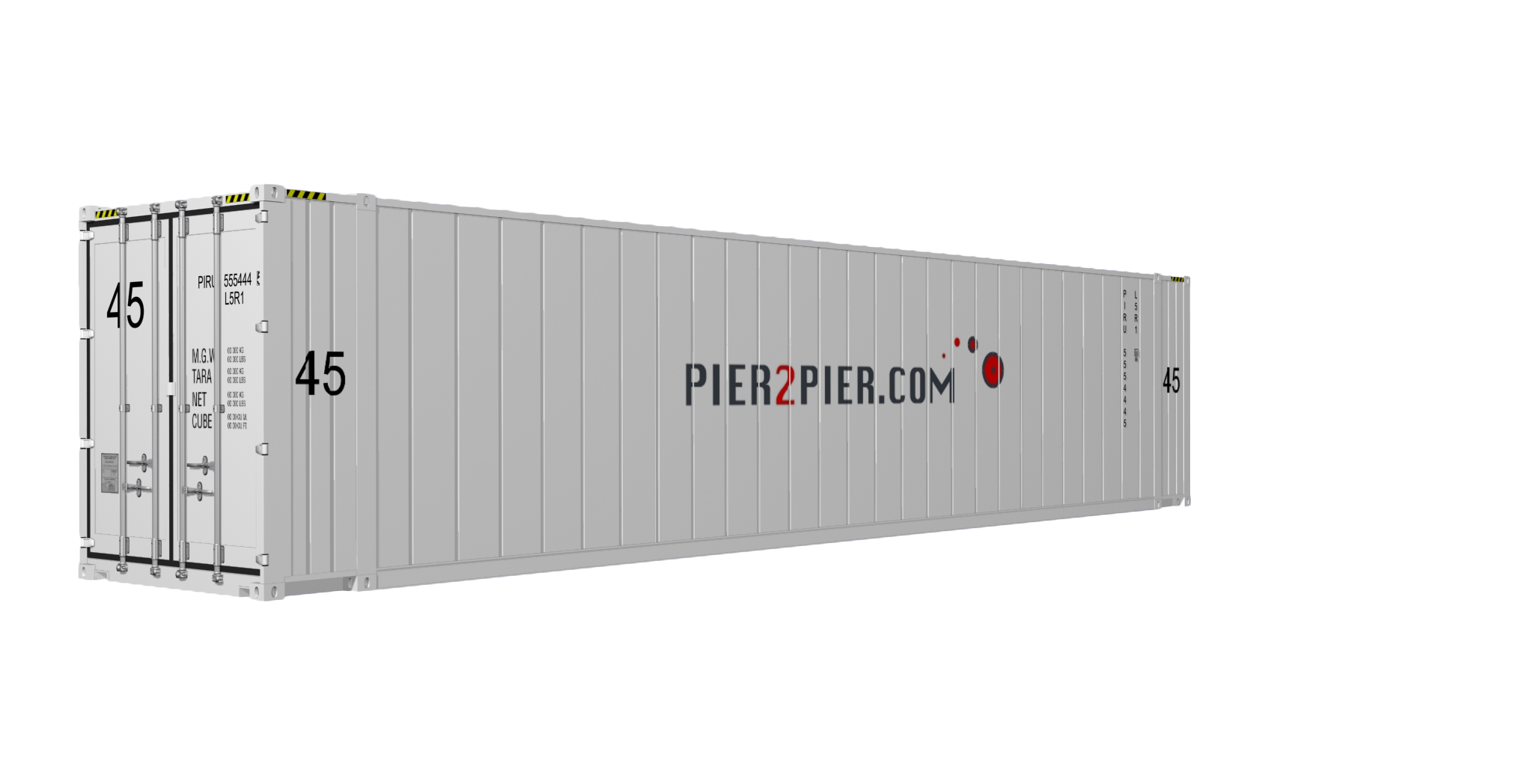

45HCReefer container picture rotated 30 degrees - Prefix PIRU	45HCReefer container picture rotated 40 degrees - Prefix PIRU

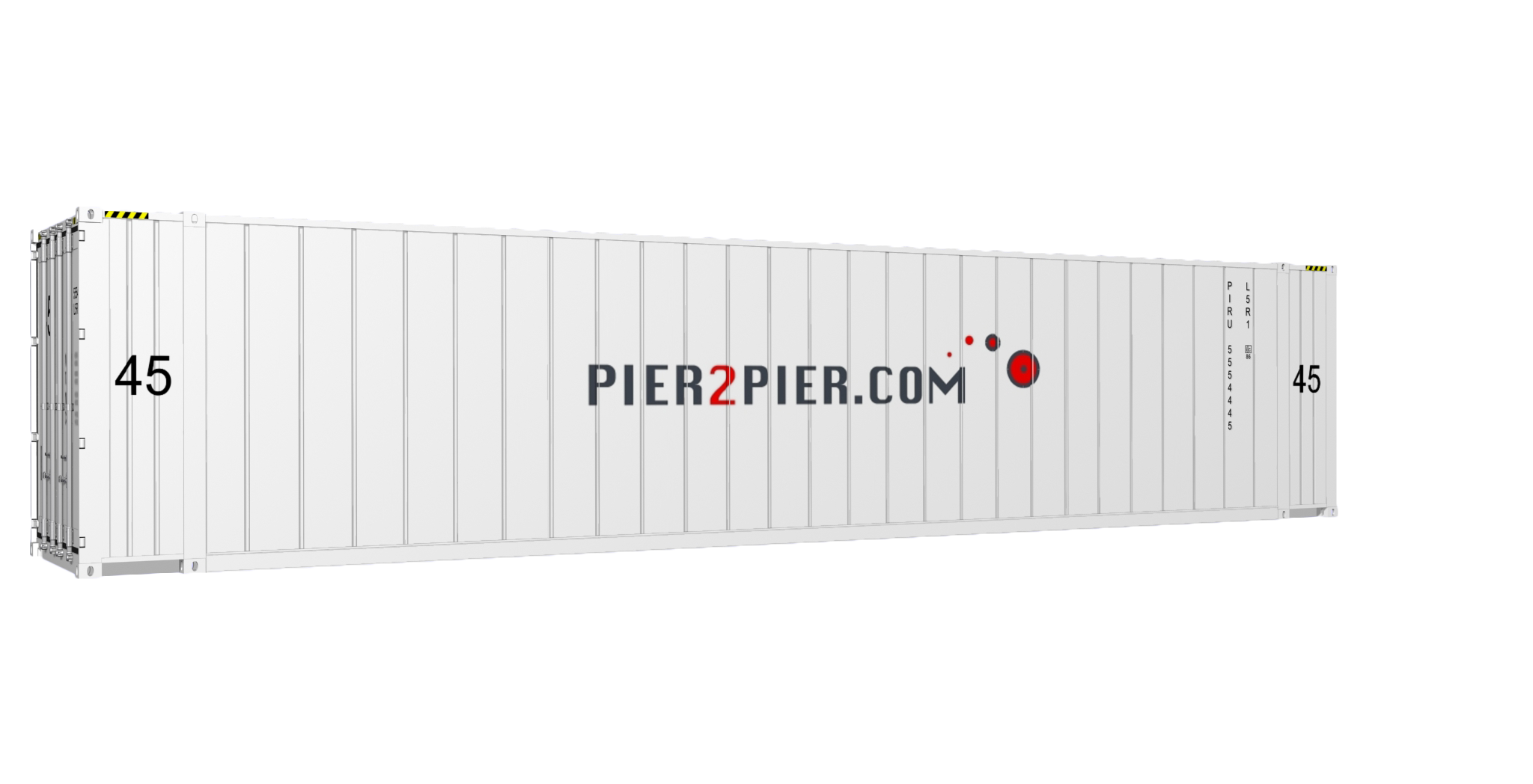

45HCReefer container picture rotated 50 degrees - Prefix PIRU	45HCReefer container picture rotated 60 degrees - Prefix PIRU
45HCReefer container picture rotated 70 degrees - Prefix PIRU	45HCReefer container picture rotated 80 degrees - Prefix PIRU

High resolution images:

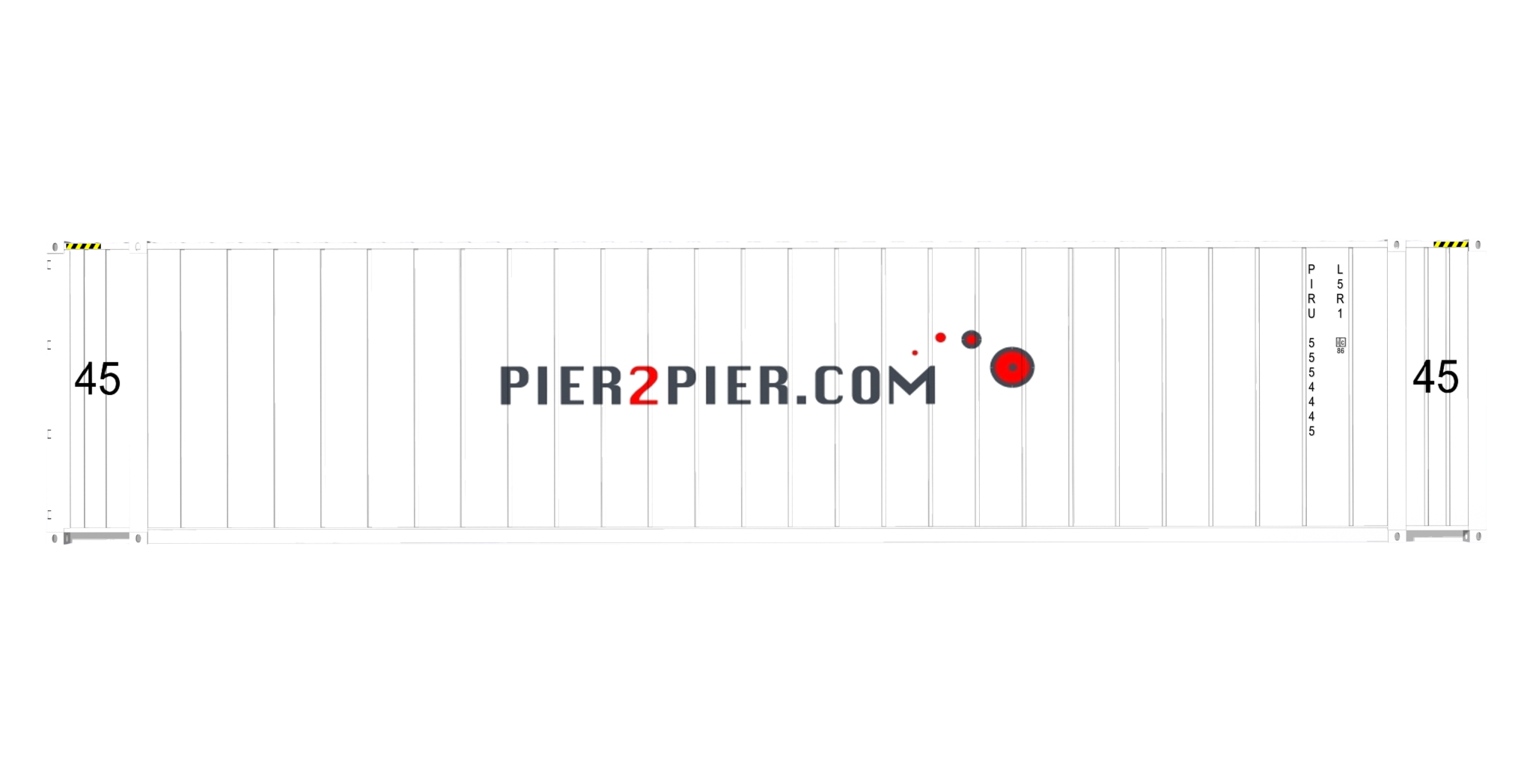

45HCReefer container picture rotated 90 degrees - Prefix PIRU

45HCReefer container picture rotated 100 degrees - Prefix PIRU

45HCReefer container picture rotated 110 degrees - Prefix PIRU

45HCReefer container picture rotated 120 degrees - Prefix PIRU

45HCReefer container picture rotated 130 degrees - Prefix PIRU

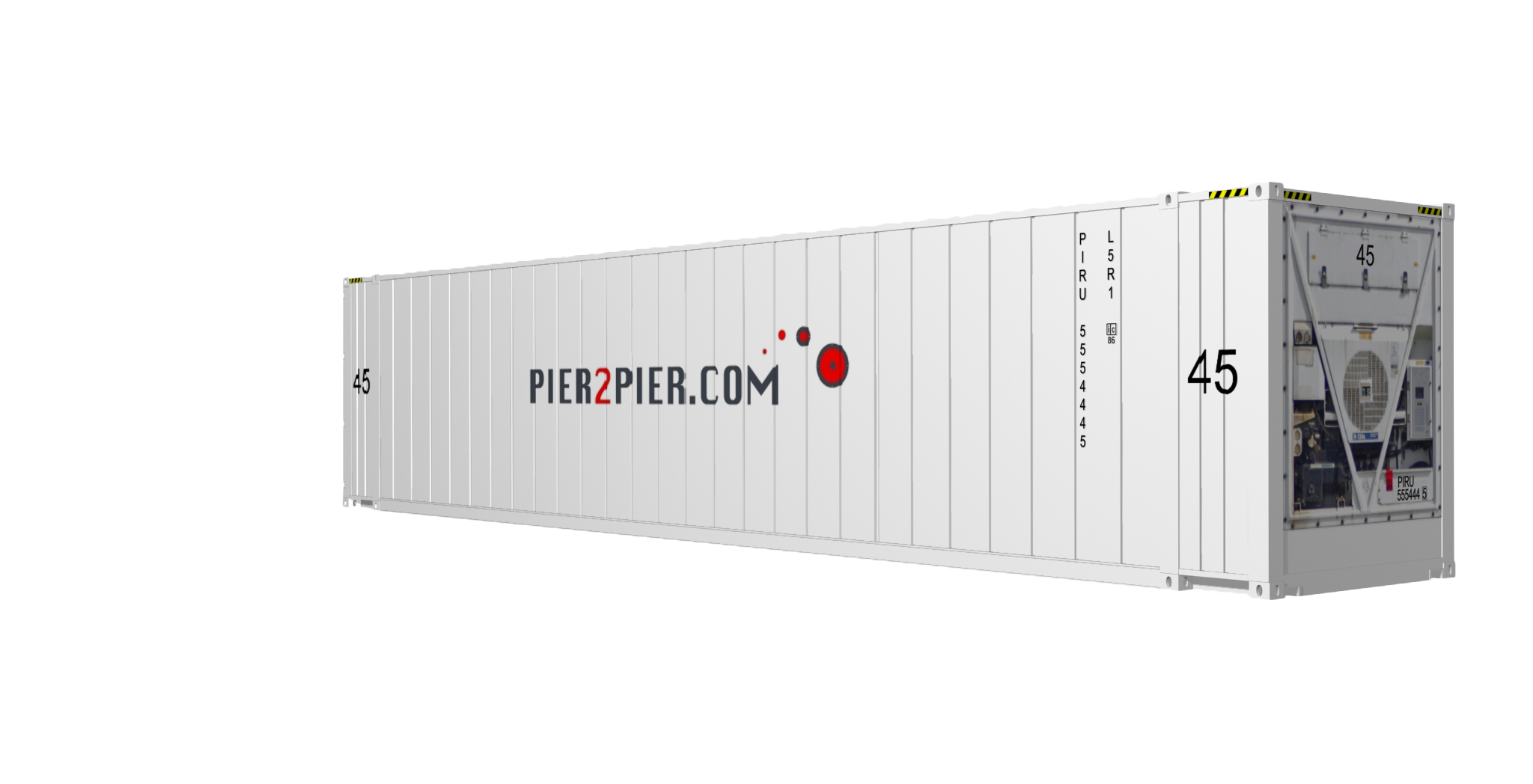

45HCReefer container picture rotated 140 degrees - Prefix PIRU

45HCReefer container picture rotated 150 degrees - Prefix PIRU

45HCReefer container picture rotated 160 degrees - Prefix PIRU

45HCReefer container picture rotated 170 degrees - Prefix PIRU

45HCReefer container picture rotated 180 degrees - Prefix PIRU

45HCReefer container picture rotated 190 degrees - Prefix PIRU

45HCReefer container picture rotated 200 degrees - Prefix PIRU

45HCReefer container picture rotated 210 degrees - Prefix PIRU

45HCReefer container picture rotated 220 degrees - Prefix PIRU

45HCReefer container picture rotated 230 degrees - Prefix PIRU

45HCReefer container picture rotated 240 degrees - Prefix PIRU

45HCReefer container picture rotated 250 degrees - Prefix PIRU

45HCReefer container picture rotated 260 degrees - Prefix PIRU

45HCReefer container picture rotated 270 degrees - Prefix PIRU

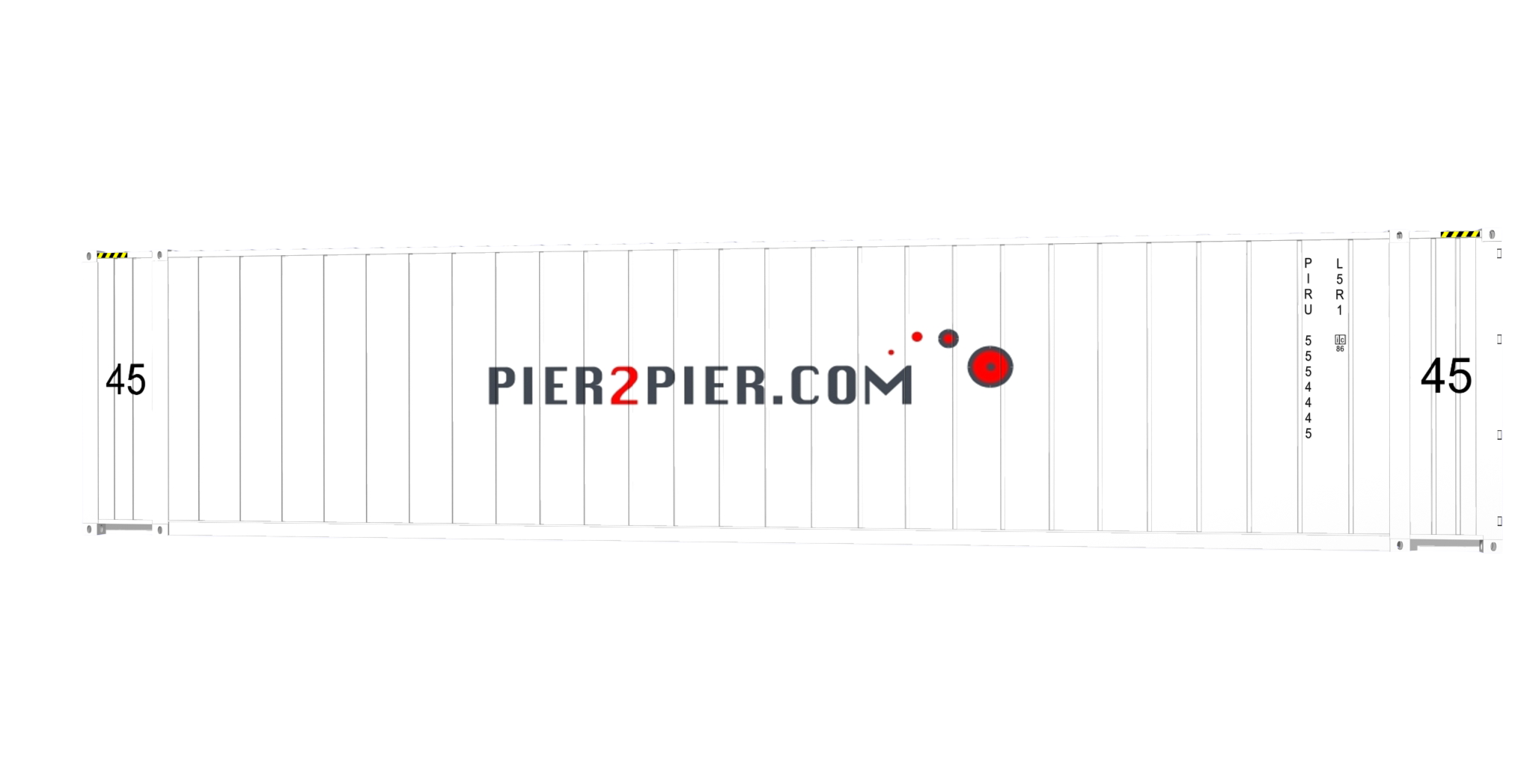

45HCReefer container picture rotated 280 degrees - Prefix PIRU

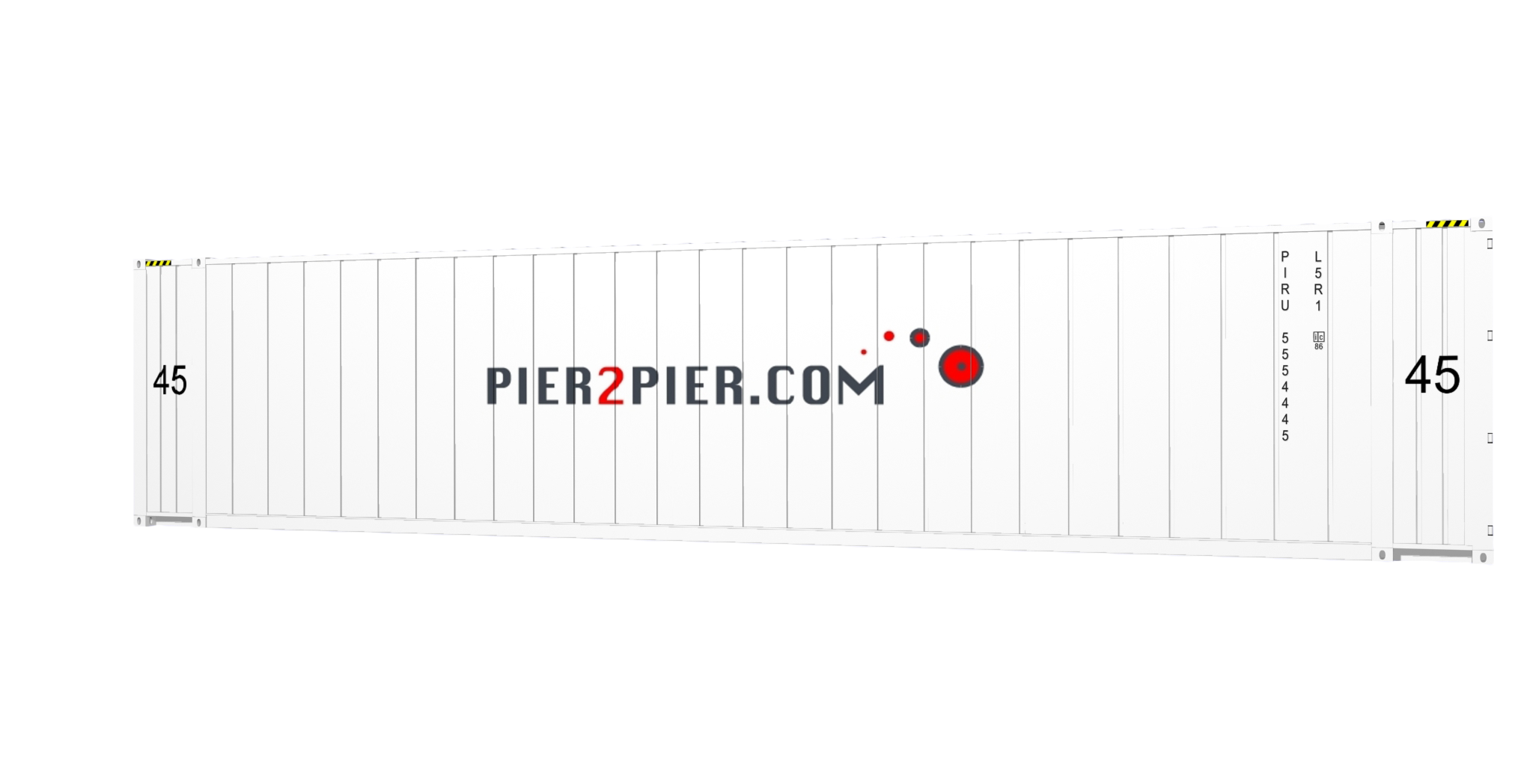

45HCReefer container picture rotated 290 degrees - Prefix PIRU

45HCReefer container picture rotated 300 degrees - Prefix PIRU

45HCReefer container picture rotated 310 degrees - Prefix PIRU

45HCReefer container picture rotated 320 degrees - Prefix PIRU

45HCReefer container picture rotated 330 degrees - Prefix PIRU

45HCReefer container picture rotated 340 degrees - Prefix PIRU

45HCReefer container picture rotated 350 degrees - Prefix PIRU

45HCReefer container picture rotated 0 degrees - Prefix PIRU

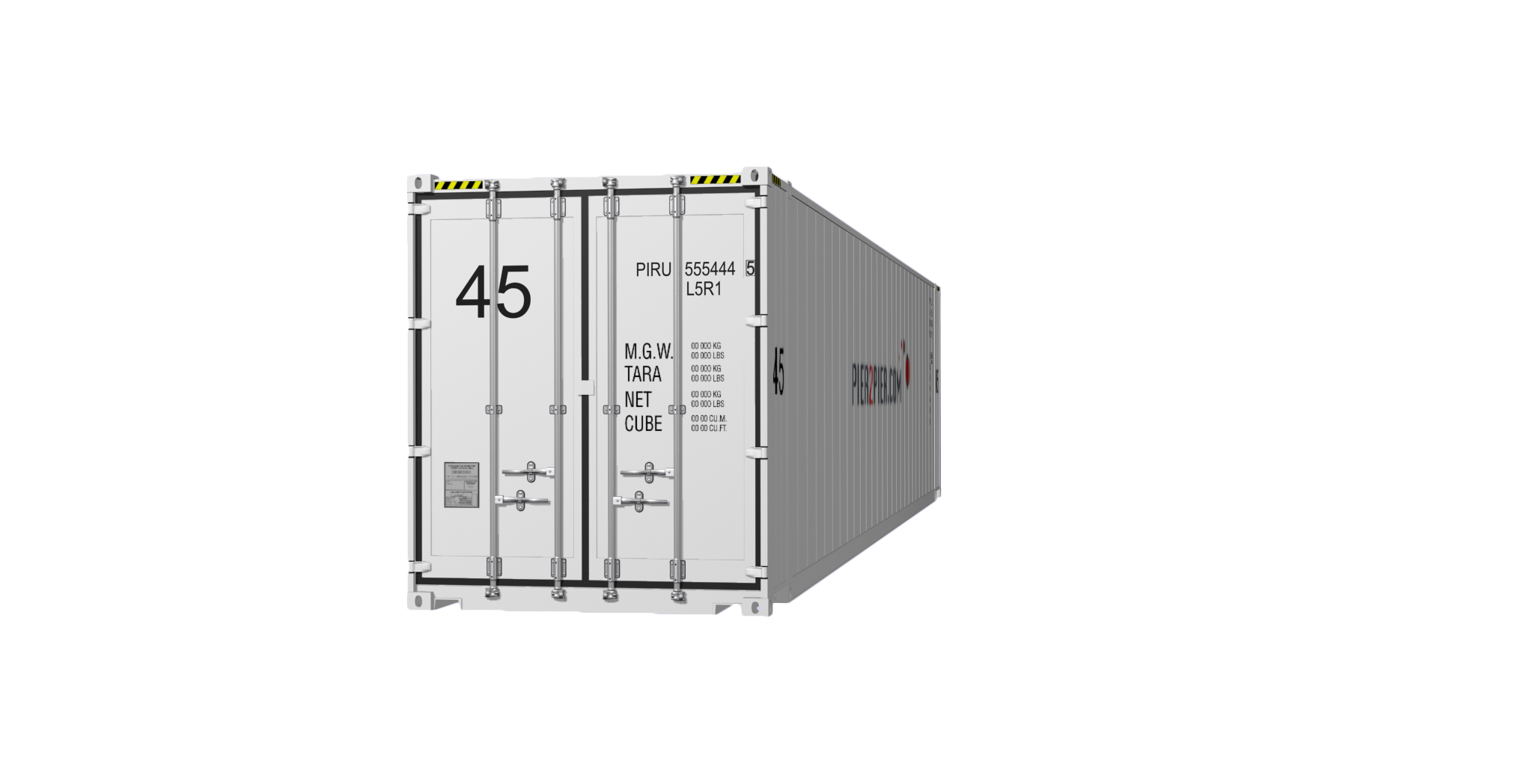

45HCReefer container picture rotated 10 degrees - Prefix PIRU

45HCReefer container picture rotated 20 degrees - Prefix PIRU

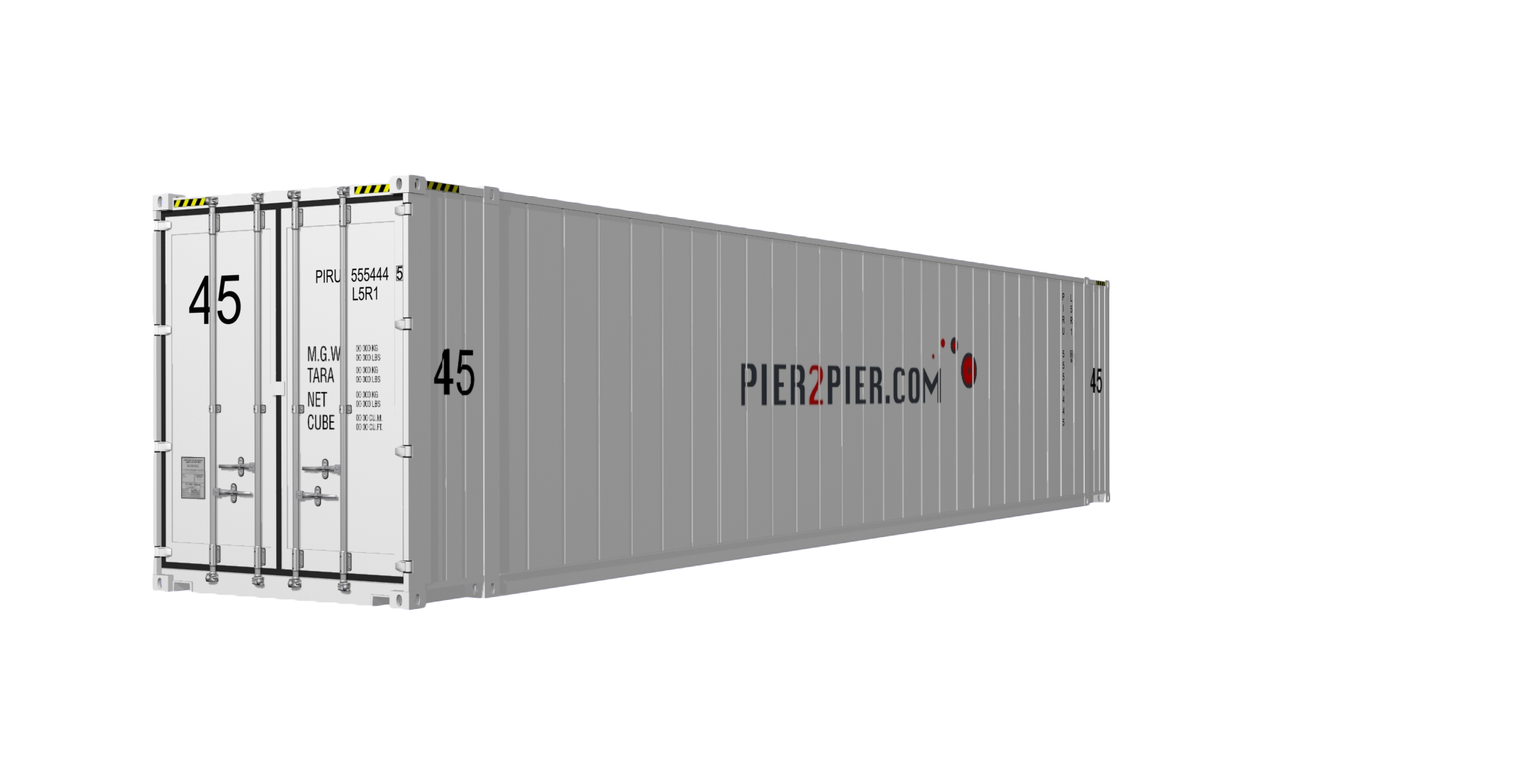

45HCReefer container picture rotated 30 degrees - Prefix PIRU

45HCReefer container picture rotated 40 degrees - Prefix PIRU

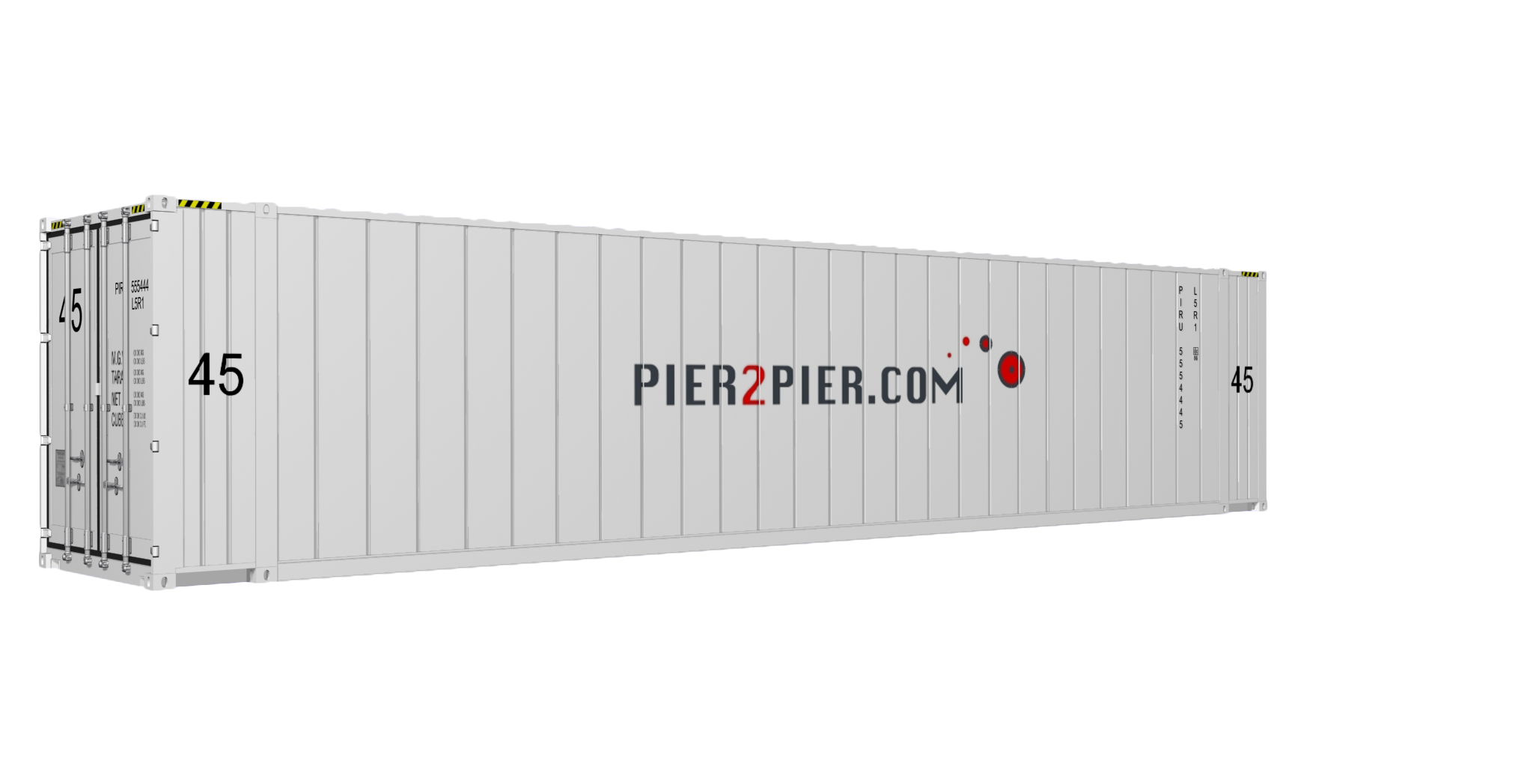

45HCReefer container picture rotated 50 degrees - Prefix PIRU

45HCReefer container picture rotated 60 degrees - Prefix PIRU

45HCReefer container picture rotated 70 degrees - Prefix PIRU

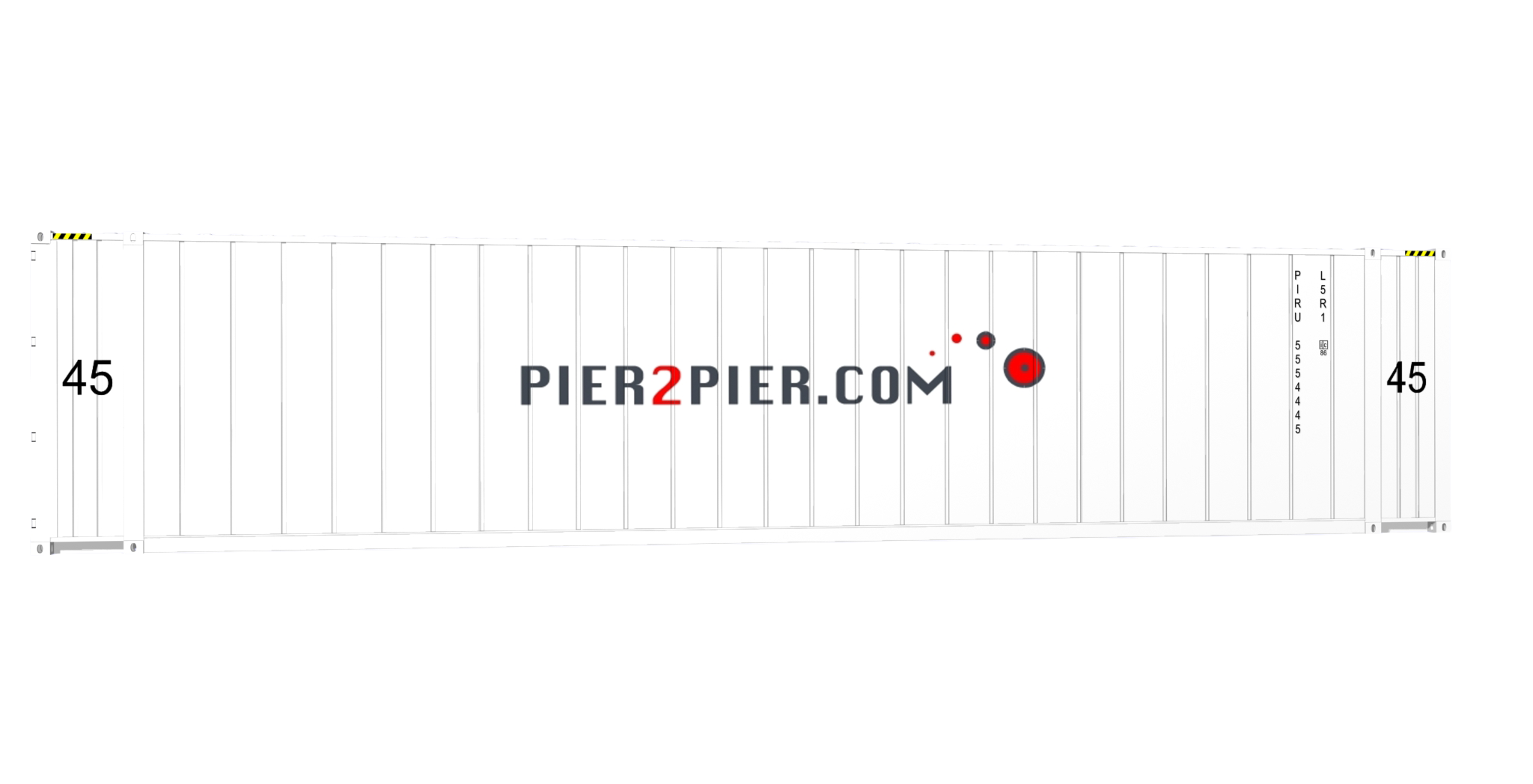

45HCReefer container picture rotated 80 degrees - Prefix PIRU
