40'Open Top container

Dimensions, weight and capacity

Internal dimensions	Length	12.029 mm	39'5 9/16 ft
	Width	2.340 mm	7'8 1/16 ft
	Height	2.348 mm	7'8 1/3 ft
Door opening	Width	2.286 mm	7'6 ft
Door opening	Height	2.251 mm	7'4 9/16 ft
Roof opening	Length	11.806 mm	38'8 3/4 ft
Roof opening	Width	2.223 mm	7'3 1/2 ft
Weights	Max. Gross	30.480 kgs	67.200 lbs
	Tare	3.820 kgs	8.420 lbs
	Max. Payload	26.660 kgs	58.780 lbs
Capacity		64 cbm	2.355 cu.ft

Please note that above is only for your guidance, contact your shipping line in order to get detail information about a specific container.

Click to enlarge picture

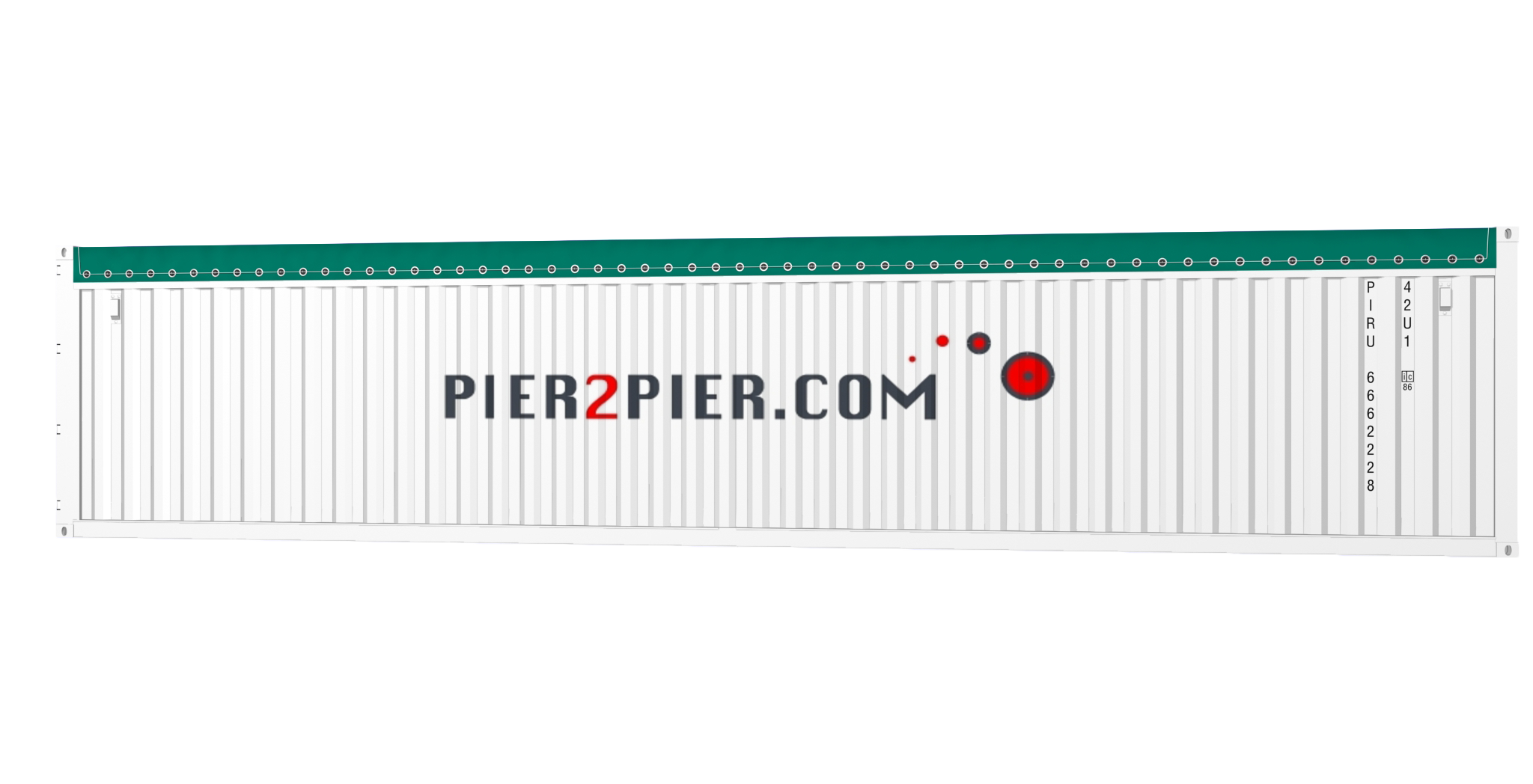

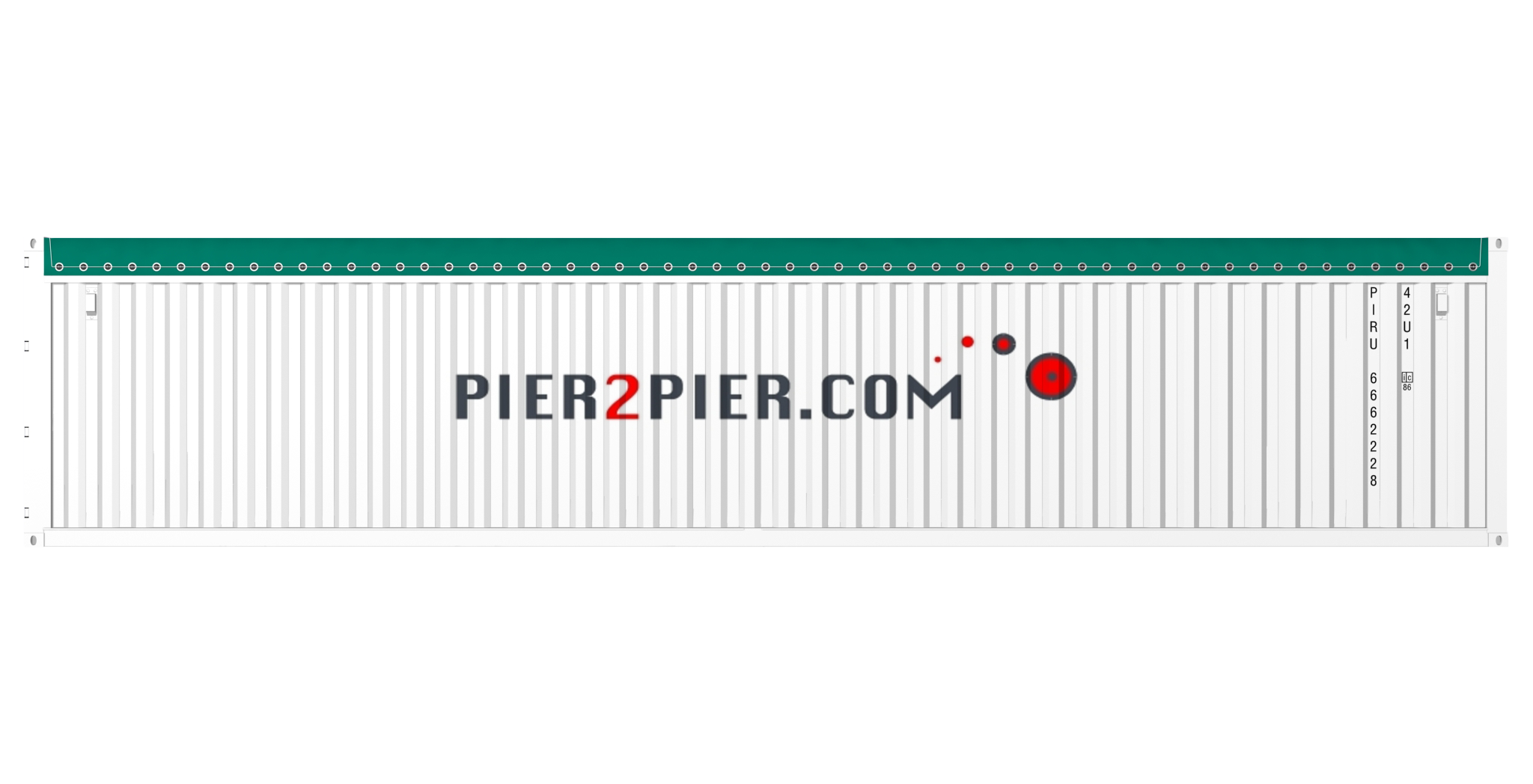

40Opentop container picture rotated 90 degrees - Prefix PIRU	40Opentop container picture rotated 100 degrees - Prefix PIRU
40Opentop container picture rotated 110 degrees - Prefix PIRU	40Opentop container picture rotated 120 degrees - Prefix PIRU

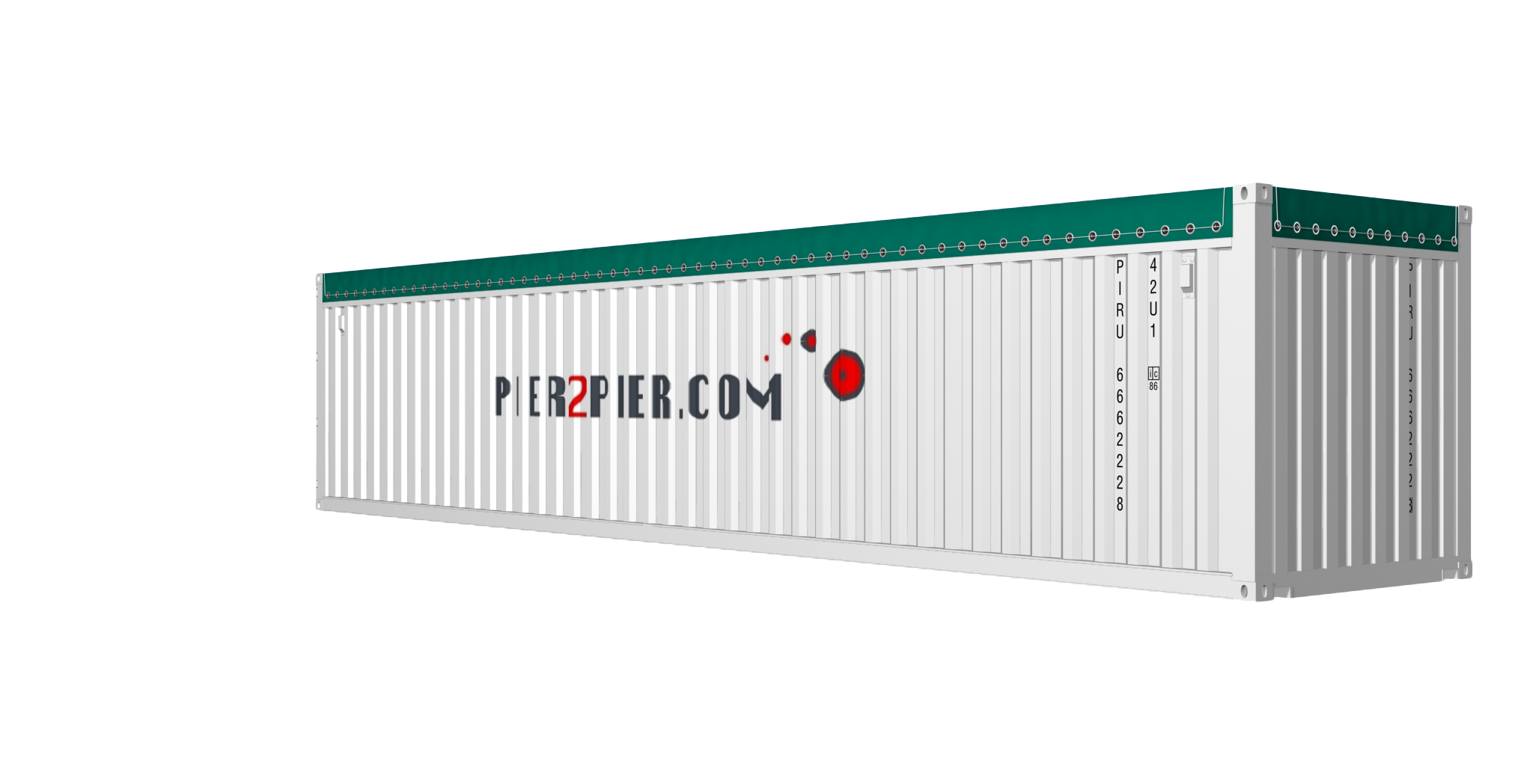

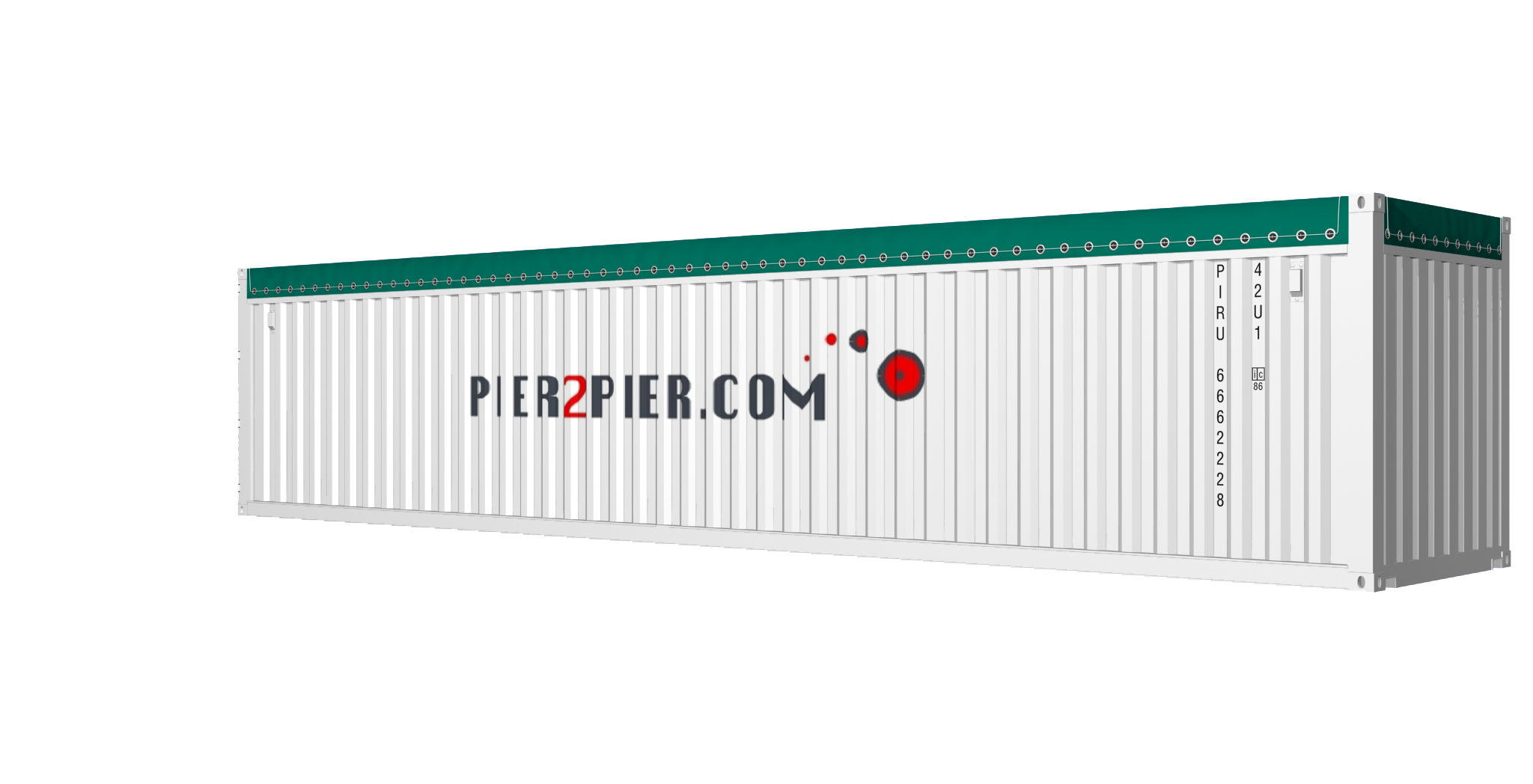

40Opentop container picture rotated 130 degrees - Prefix PIRU	40Opentop container picture rotated 140 degrees - Prefix PIRU

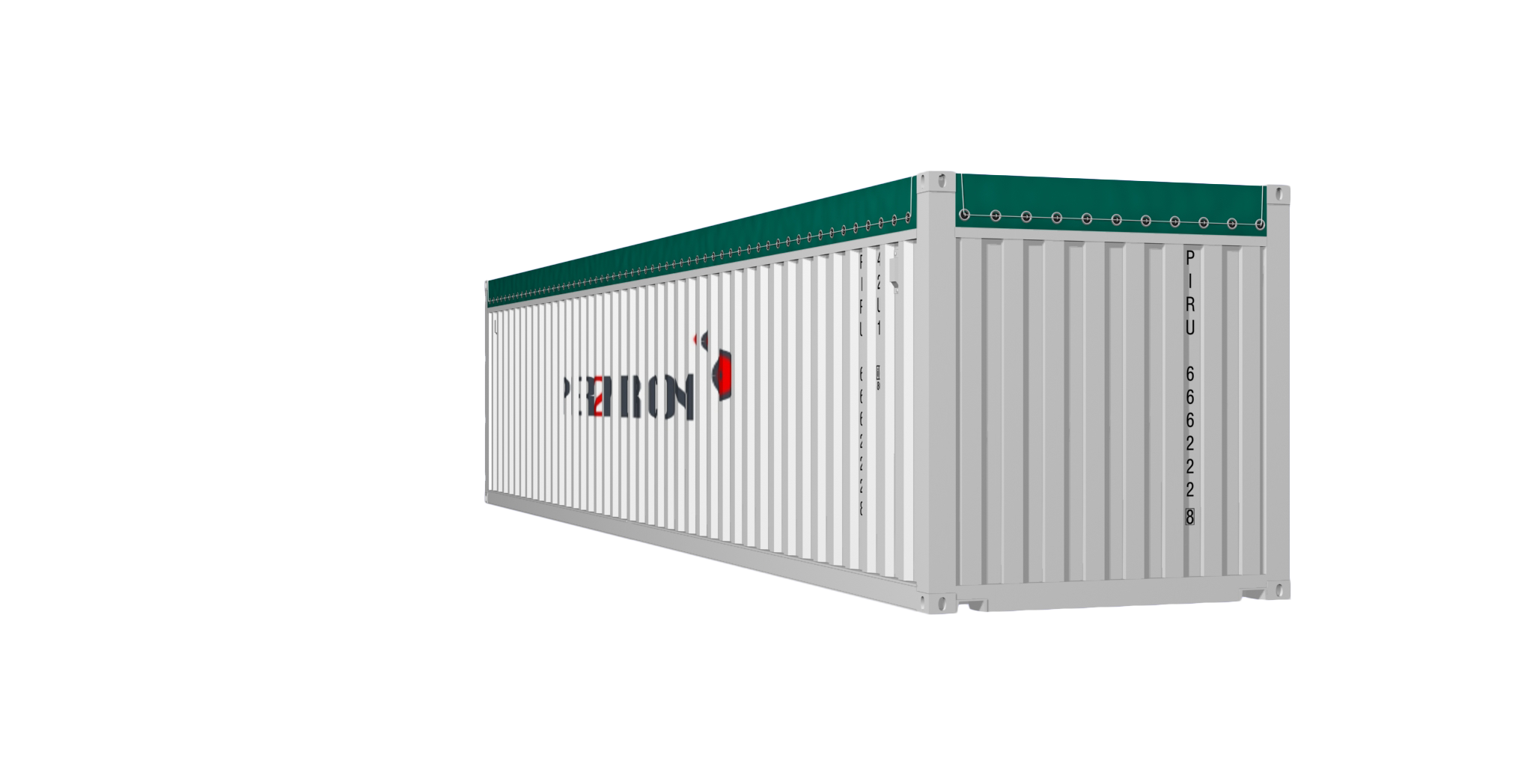

40Opentop container picture rotated 150 degrees - Prefix PIRU	40Opentop container picture rotated 160 degrees - Prefix PIRU
40Opentop container picture rotated 170 degrees - Prefix PIRU	40Opentop container picture rotated 180 degrees - Prefix PIRU

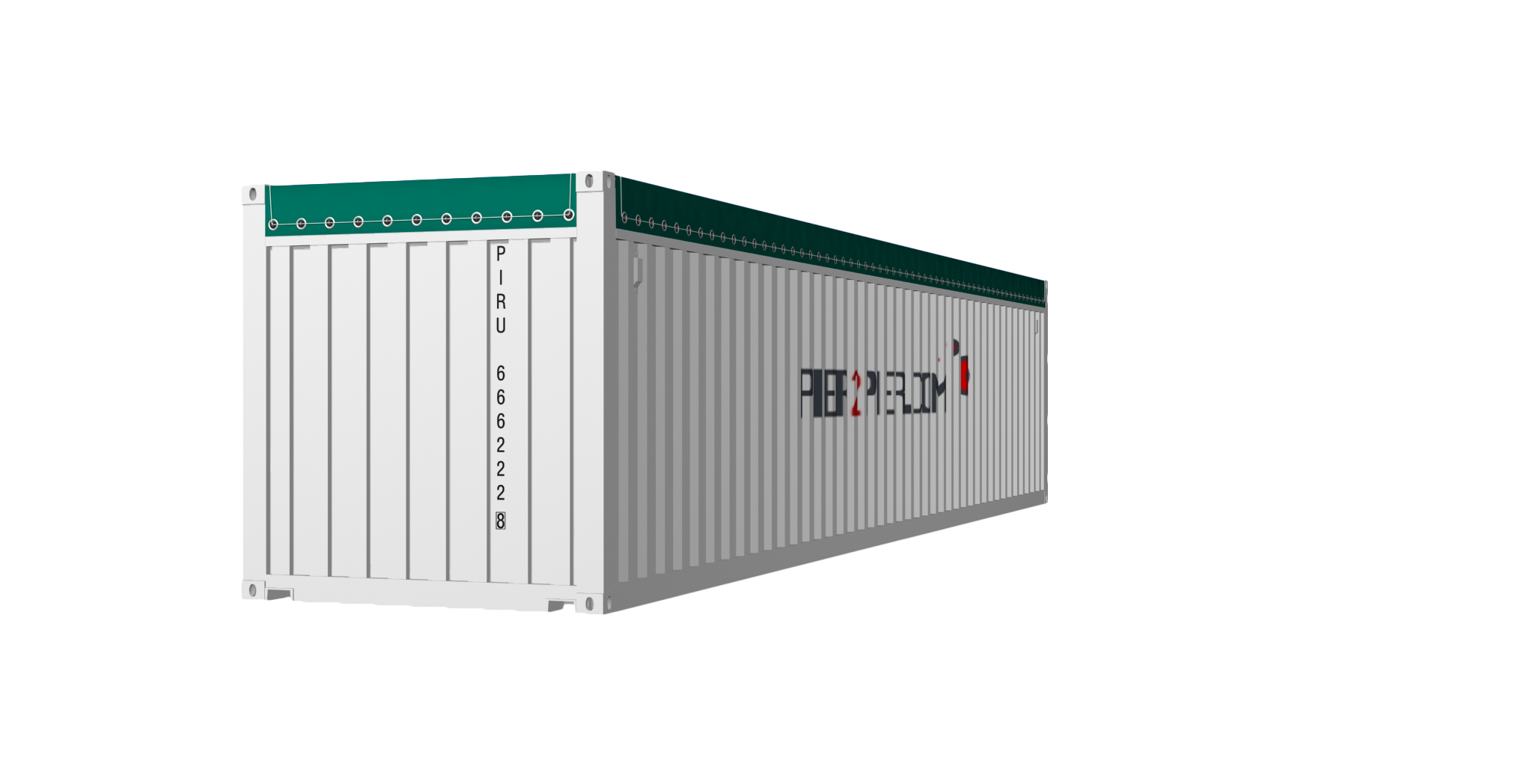

40Opentop container picture rotated 190 degrees - Prefix PIRU	40Opentop container picture rotated 200 degrees - Prefix PIRU
40Opentop container picture rotated 210 degrees - Prefix PIRU	40Opentop container picture rotated 220 degrees - Prefix PIRU

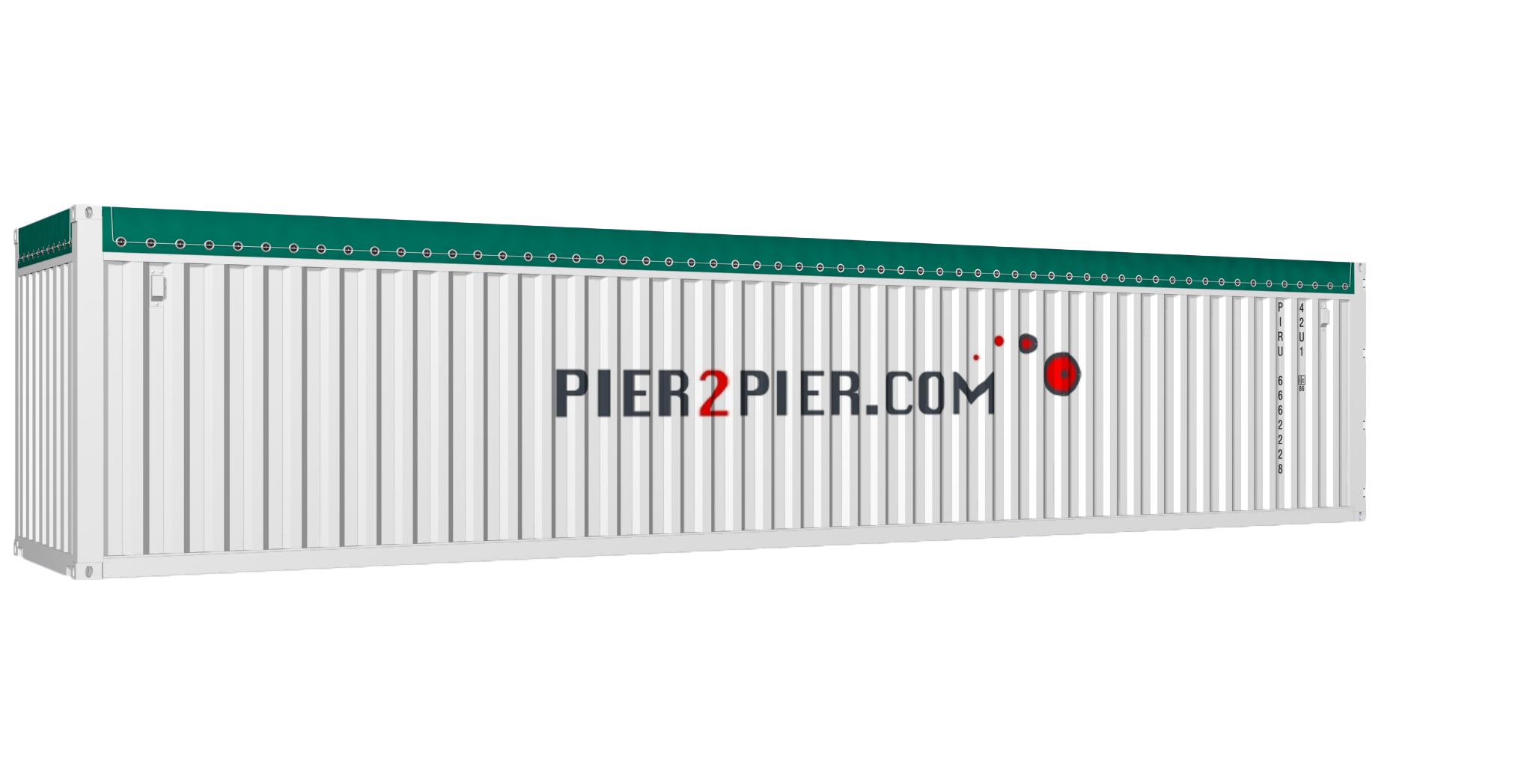

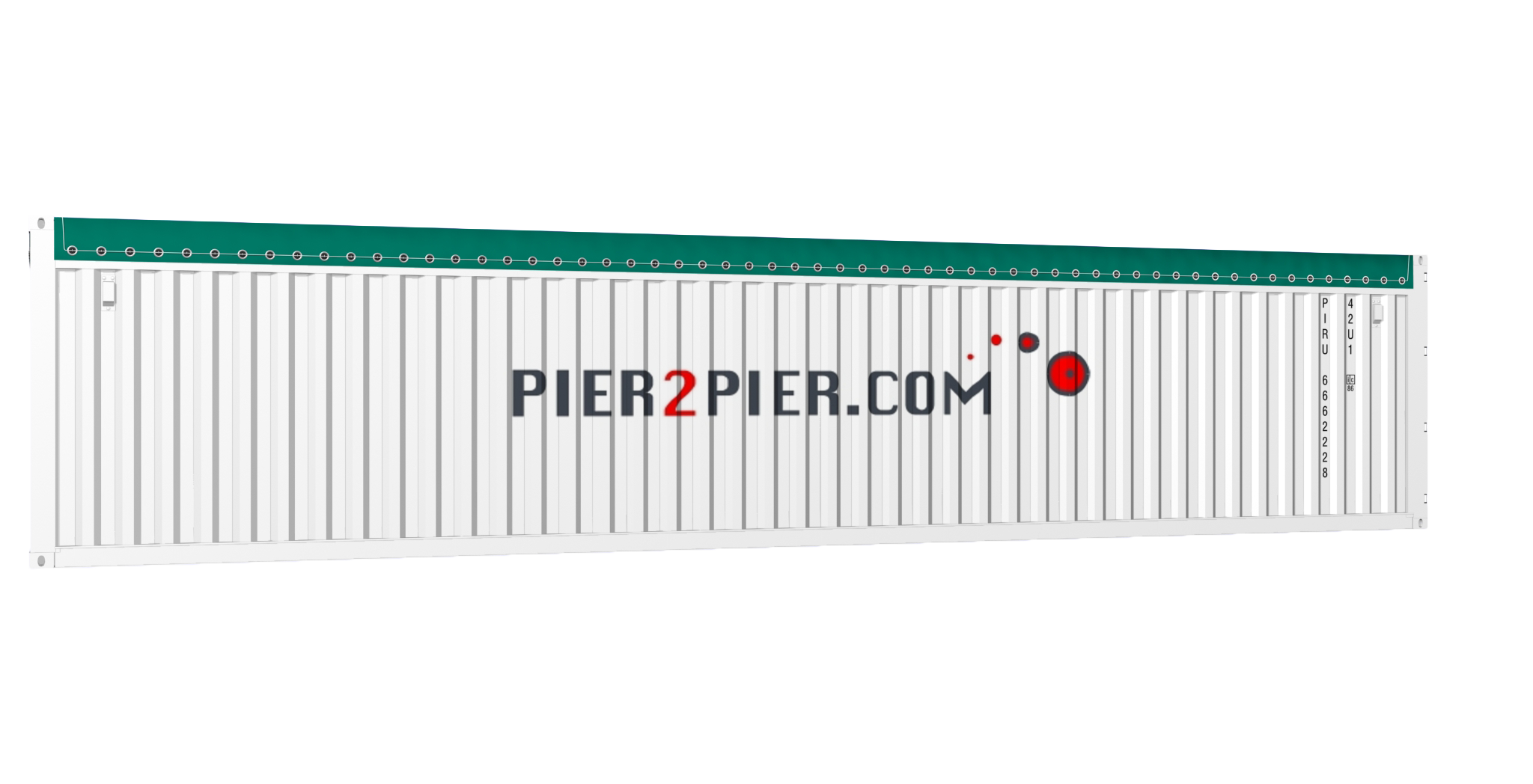

40Opentop container picture rotated 230 degrees - Prefix PIRU	40Opentop container picture rotated 240 degrees - Prefix PIRU
40Opentop container picture rotated 250 degrees - Prefix PIRU	40Opentop container picture rotated 270 degrees - Prefix PIRU
40Opentop container picture rotated 280 degrees - Prefix PIRU	40Opentop container picture rotated 290 degrees - Prefix PIRU

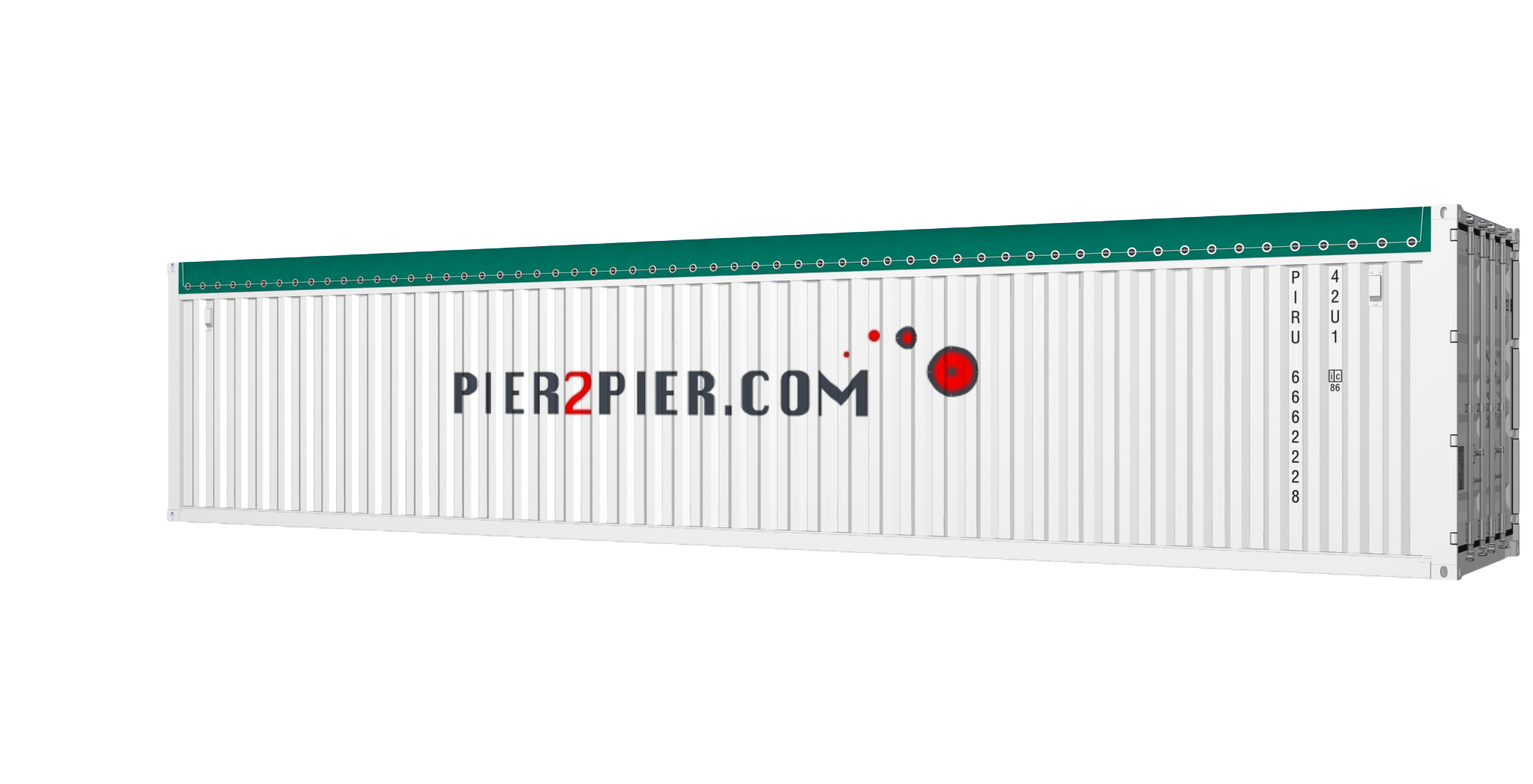

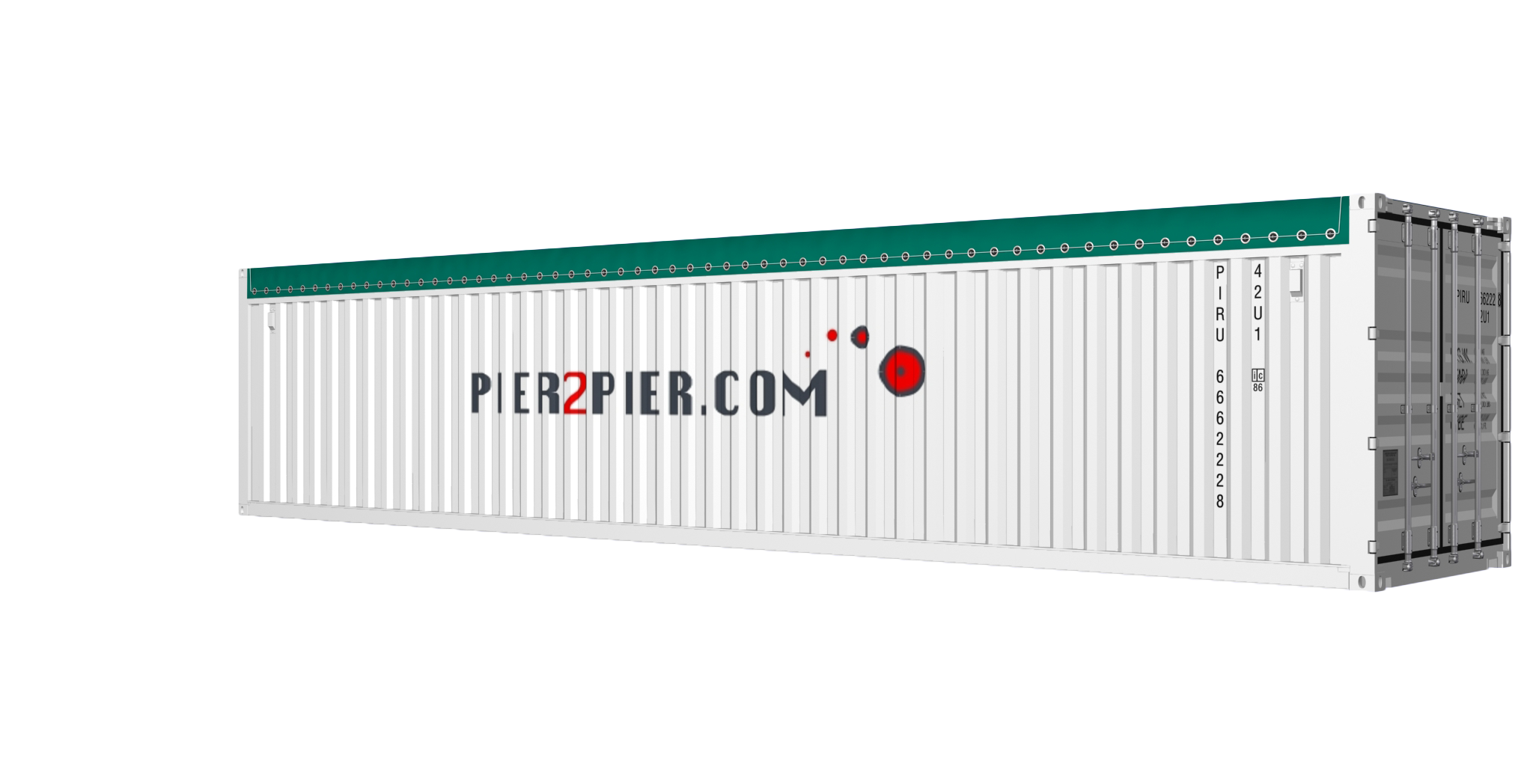

40Opentop container picture rotated 300 degrees - Prefix PIRU	40Opentop container picture rotated 310 degrees - Prefix PIRU

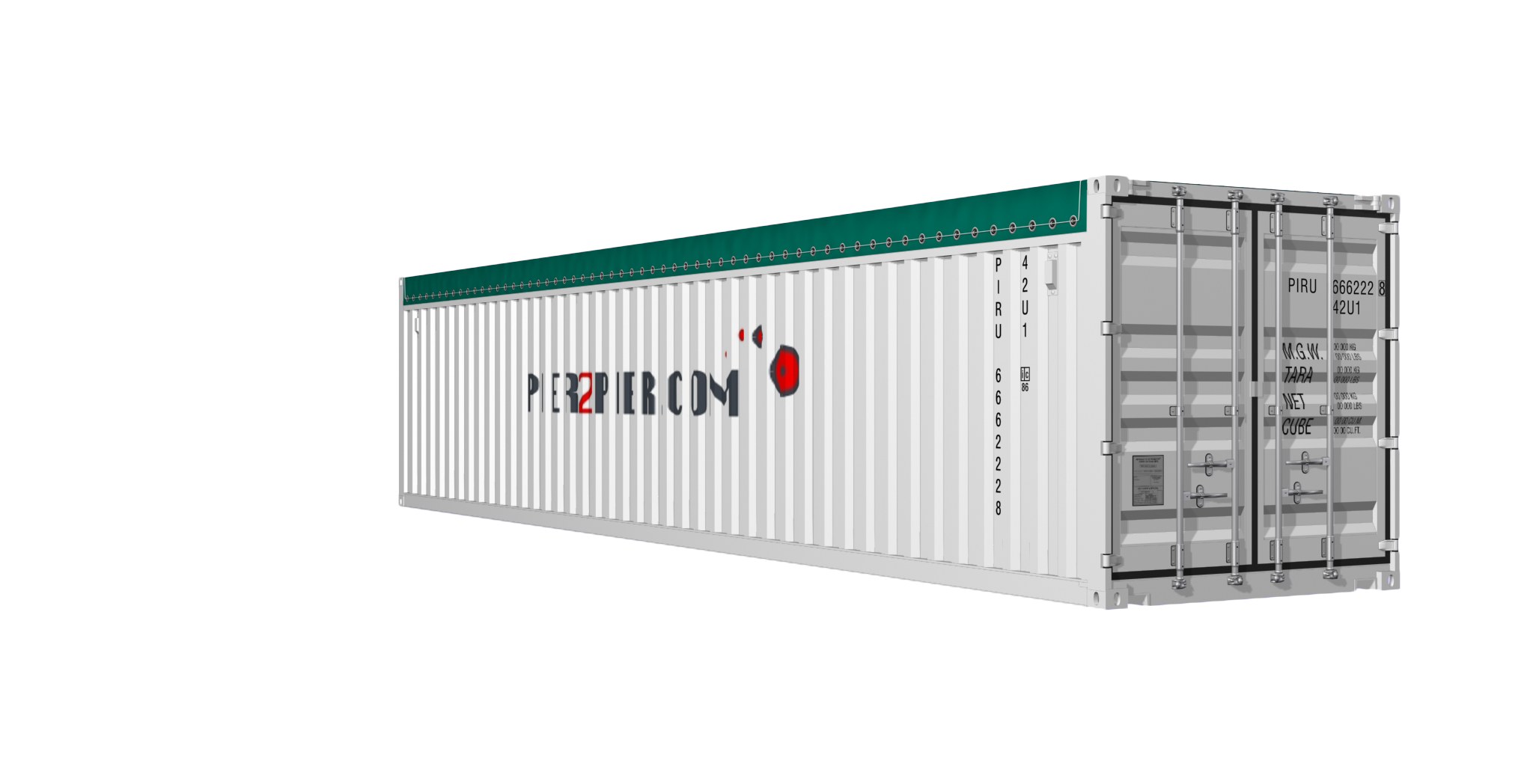

40Opentop container picture rotated 320 degrees - Prefix PIRU	40Opentop container picture rotated 330 degrees - Prefix PIRU
40Opentop container picture rotated 340 degrees - Prefix PIRU	40Opentop container picture rotated 350 degrees - Prefix PIRU

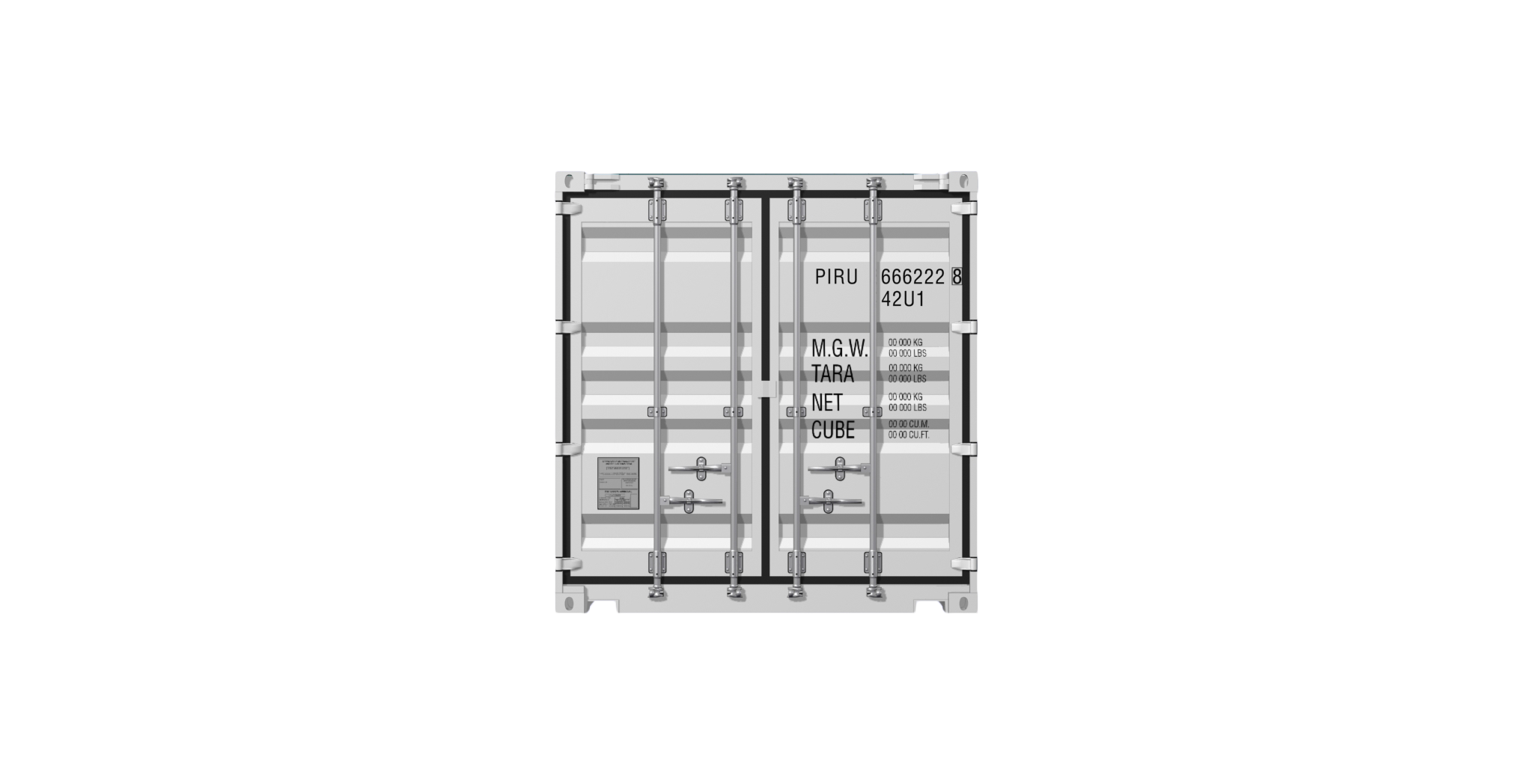

40Opentop container picture rotated 0 degrees - Prefix PIRU	40Opentop container picture rotated 10 degrees - Prefix PIRU
40Opentop container picture rotated 20 degrees - Prefix PIRU	40Opentop container picture rotated 30 degrees - Prefix PIRU

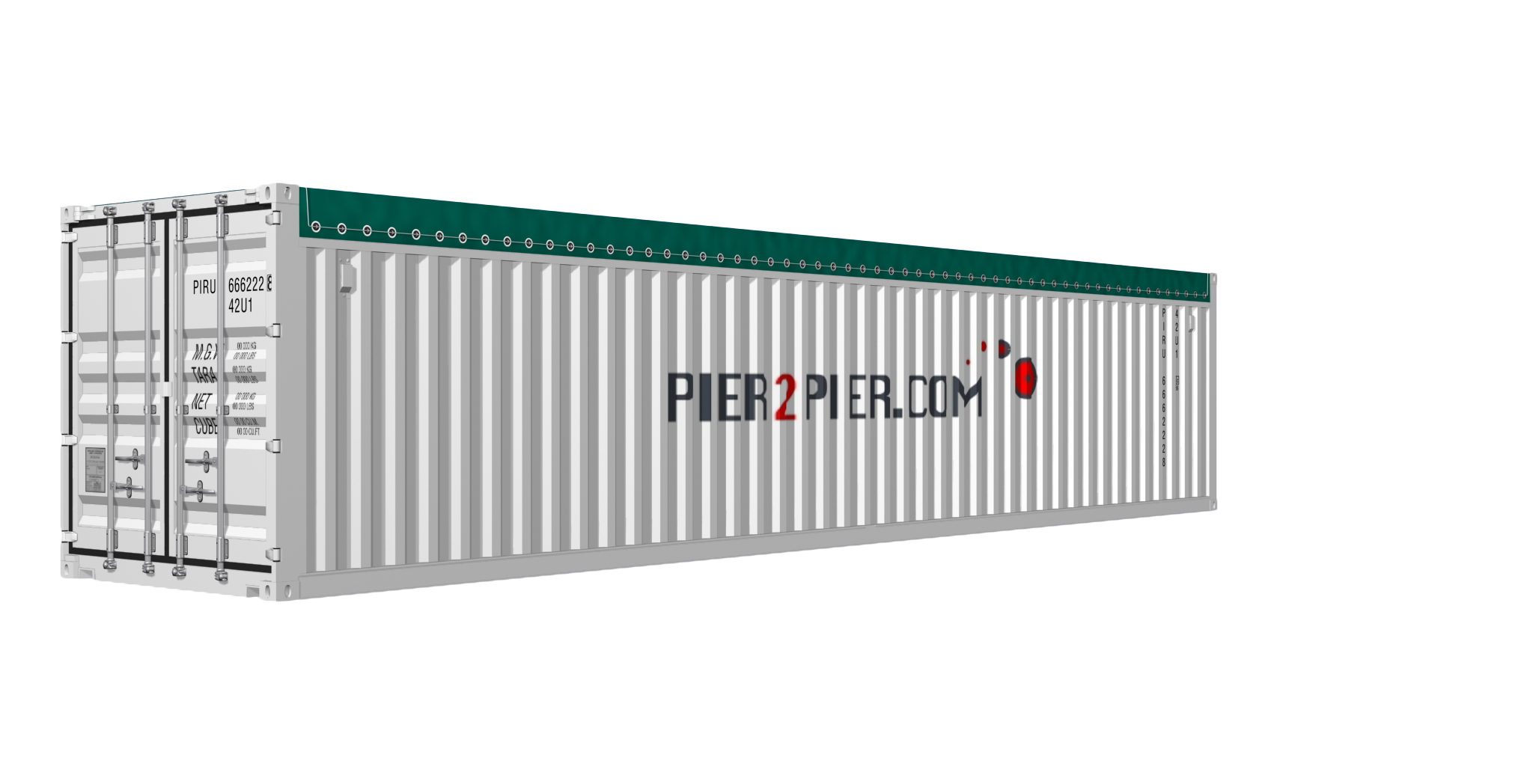

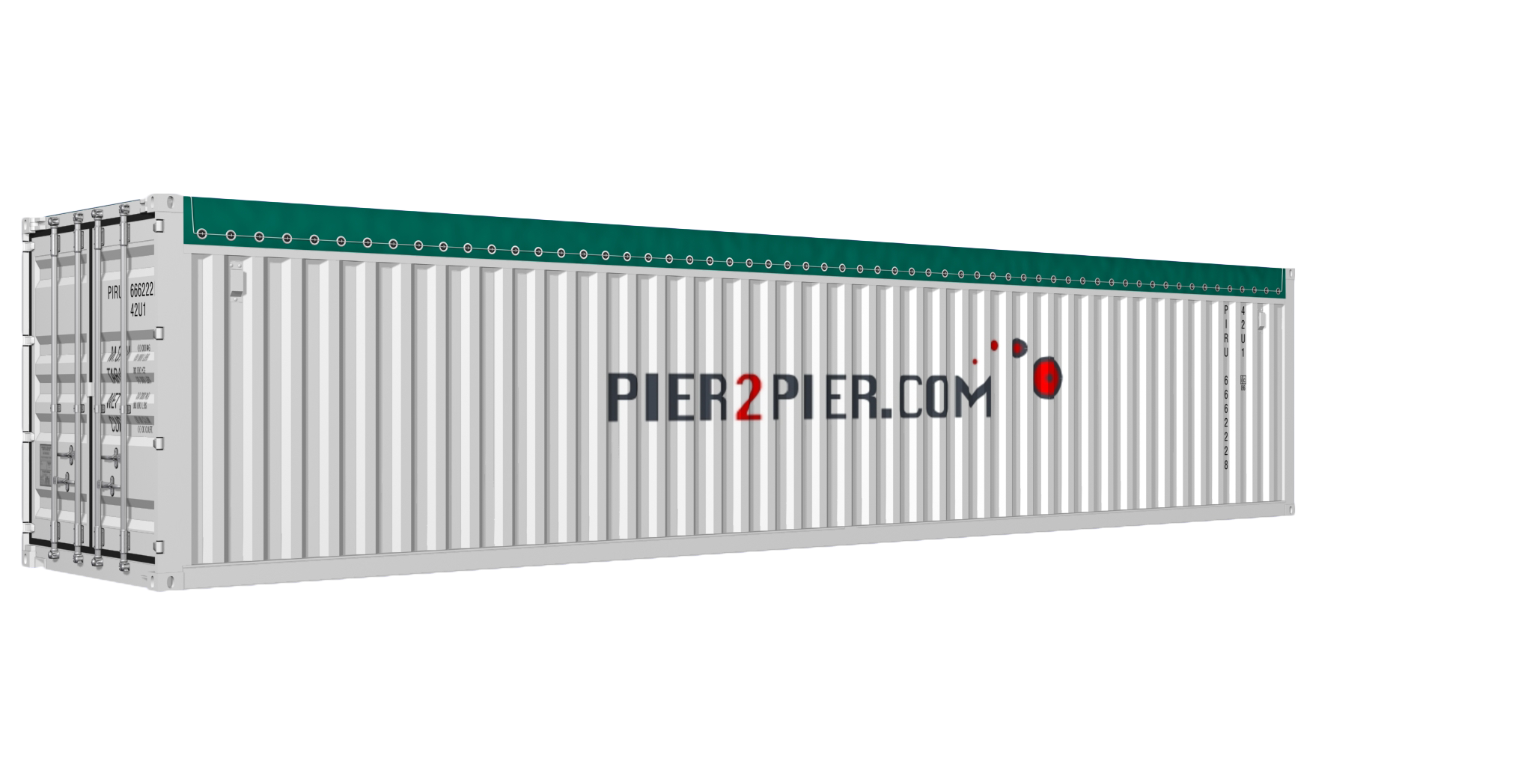

40Opentop container picture rotated 40 degrees - Prefix PIRU	40Opentop container picture rotated 50 degrees - Prefix PIRU

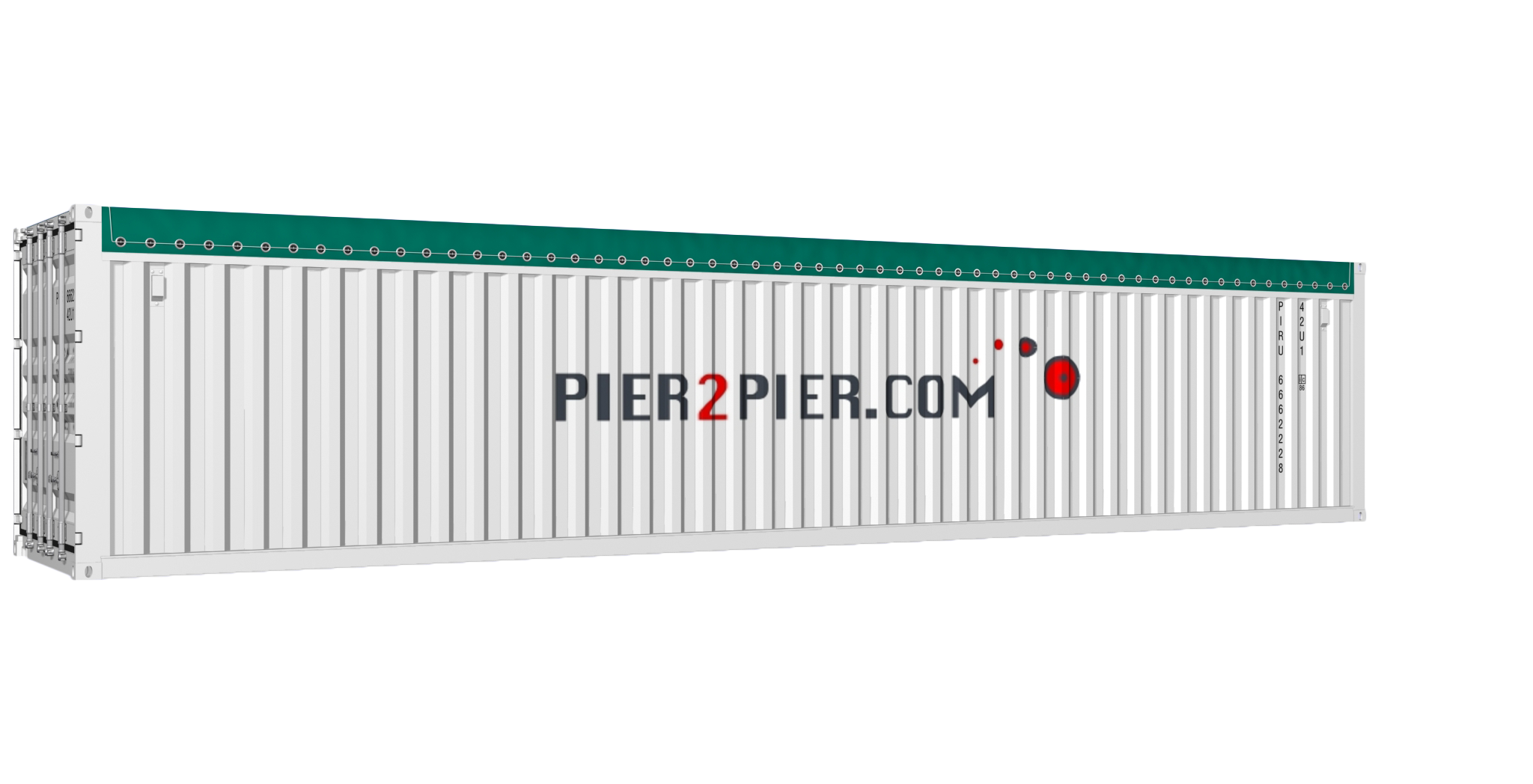

40Opentop container picture rotated 60 degrees - Prefix PIRU	40Opentop container picture rotated 70 degrees - Prefix PIRU

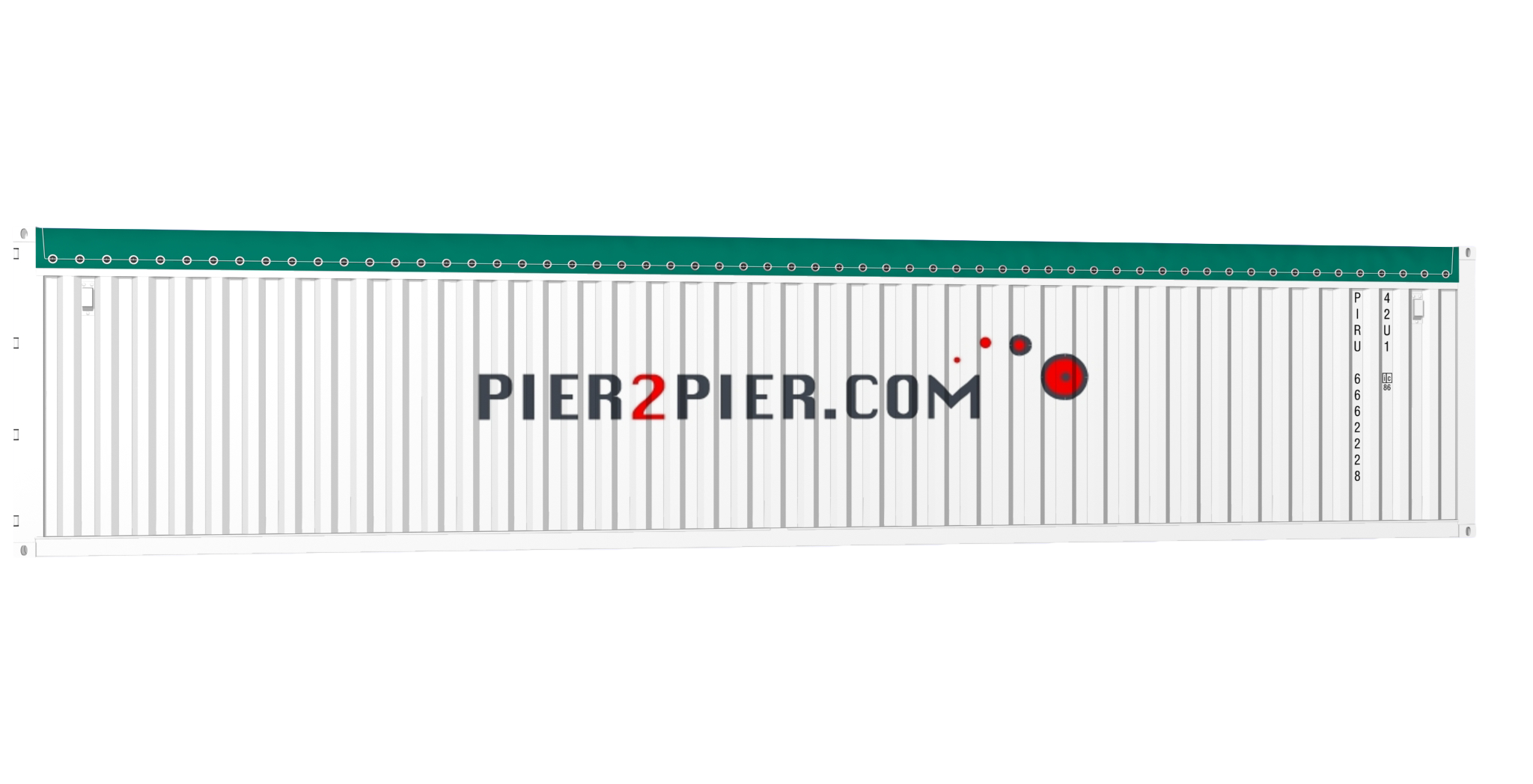

40Opentop container picture rotated 80 degrees - Prefix PIRU

High resolution images:

40Opentop container picture rotated 90 degrees - Prefix PIRU

40Opentop container picture rotated 100 degrees - Prefix PIRU

40Opentop container picture rotated 110 degrees - Prefix PIRU

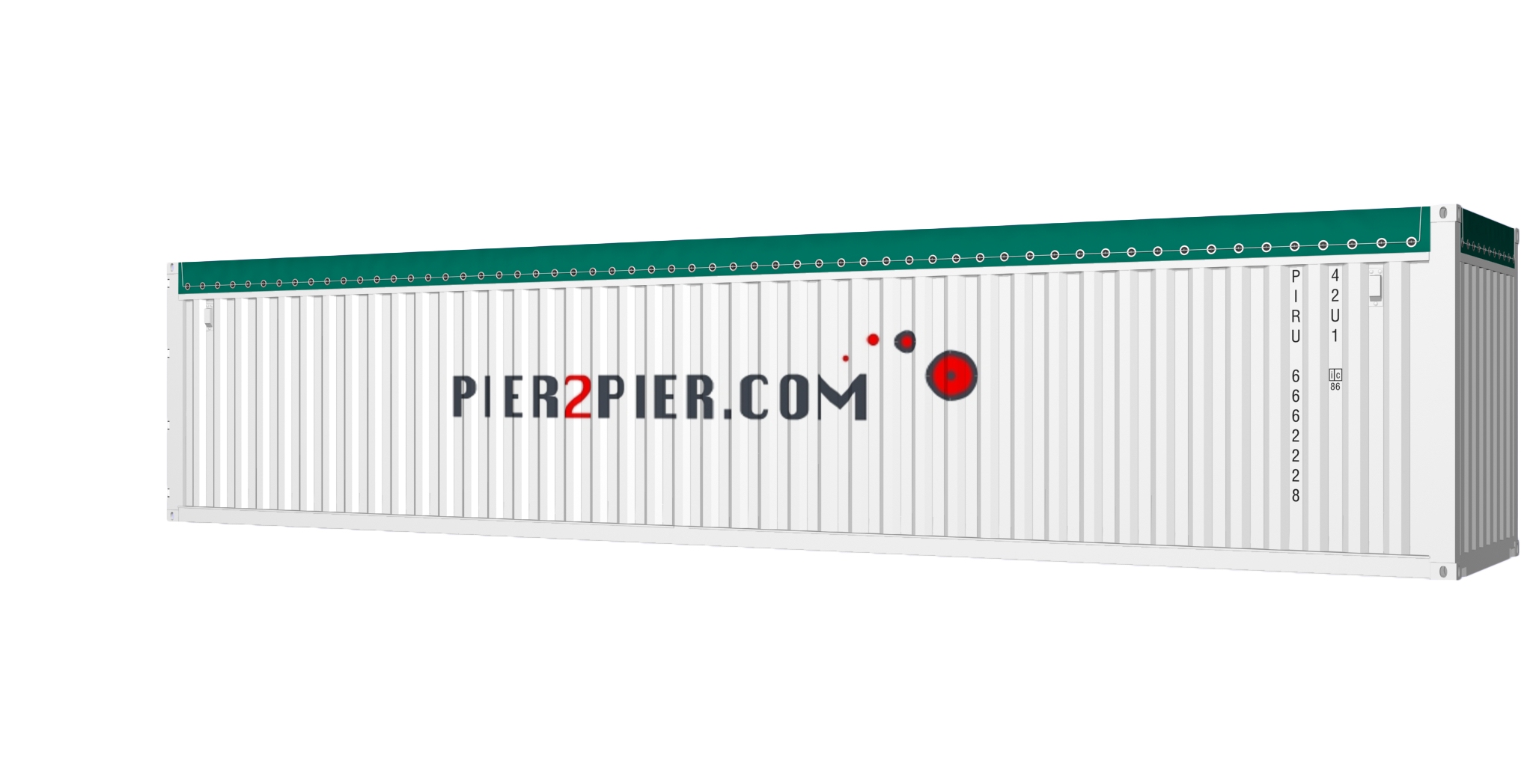

40Opentop container picture rotated 120 degrees - Prefix PIRU

40Opentop container picture rotated 130 degrees - Prefix PIRU

40Opentop container picture rotated 140 degrees - Prefix PIRU

40Opentop container picture rotated 150 degrees - Prefix PIRU

40Opentop container picture rotated 160 degrees - Prefix PIRU

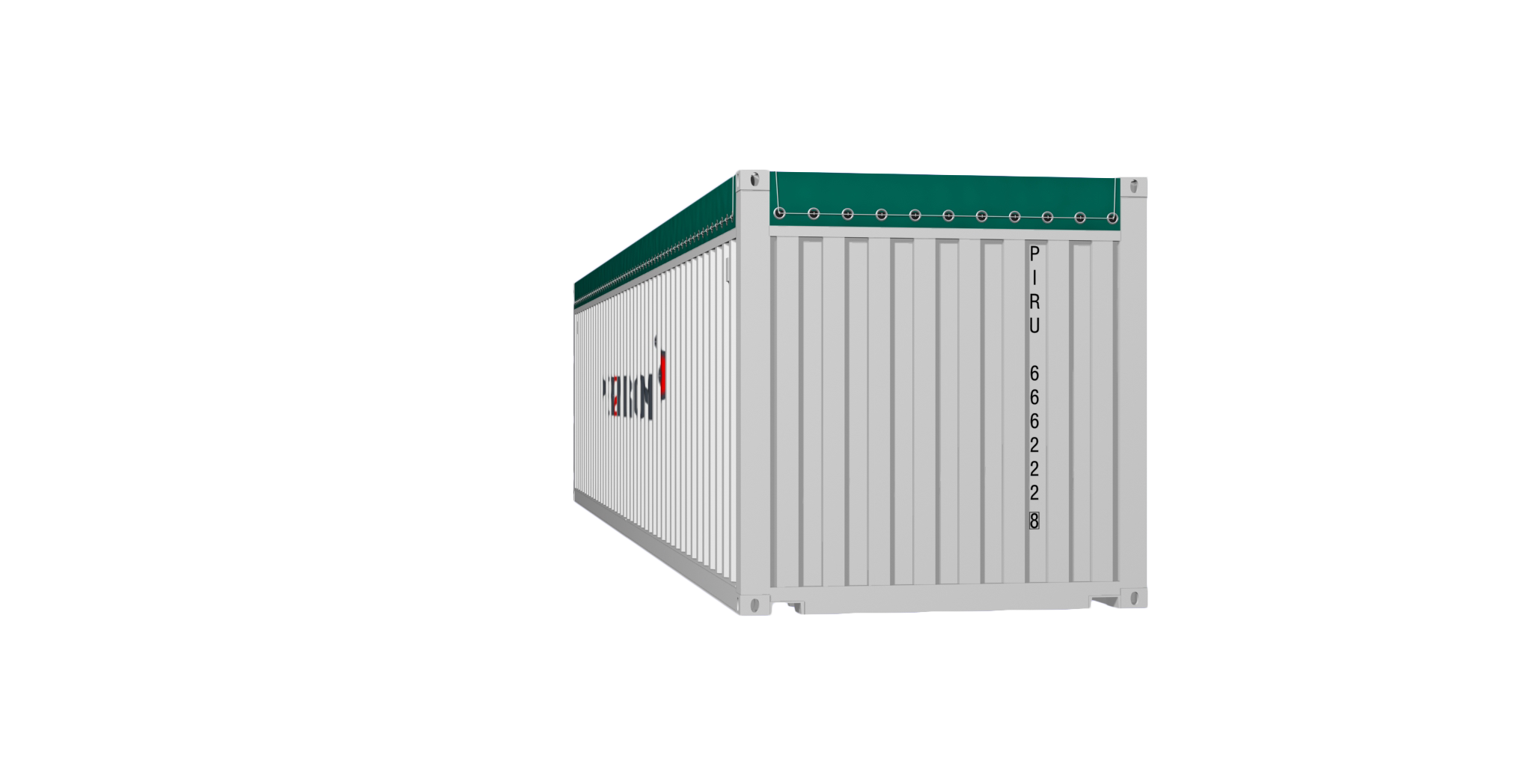

40Opentop container picture rotated 170 degrees - Prefix PIRU

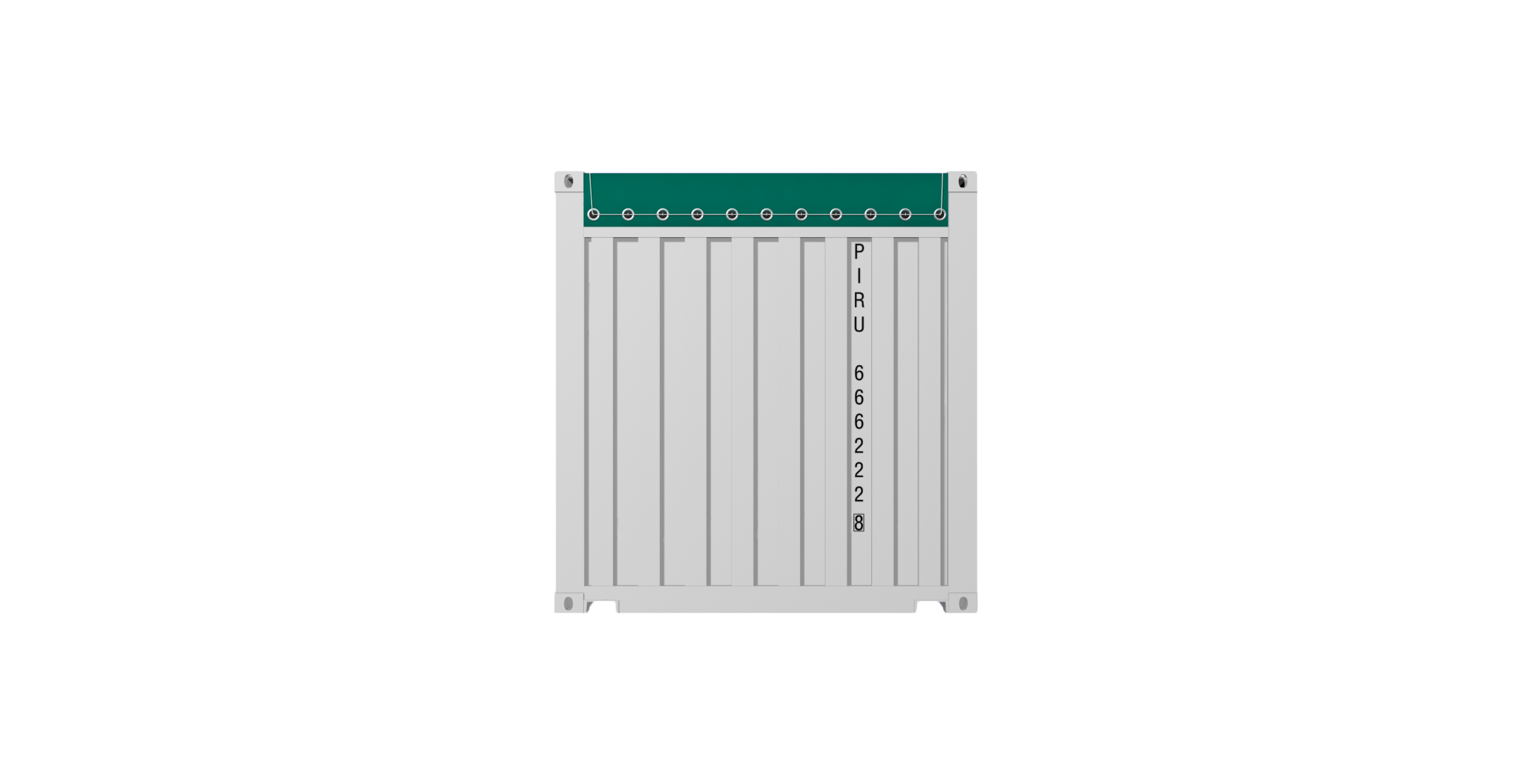

40Opentop container picture rotated 180 degrees - Prefix PIRU

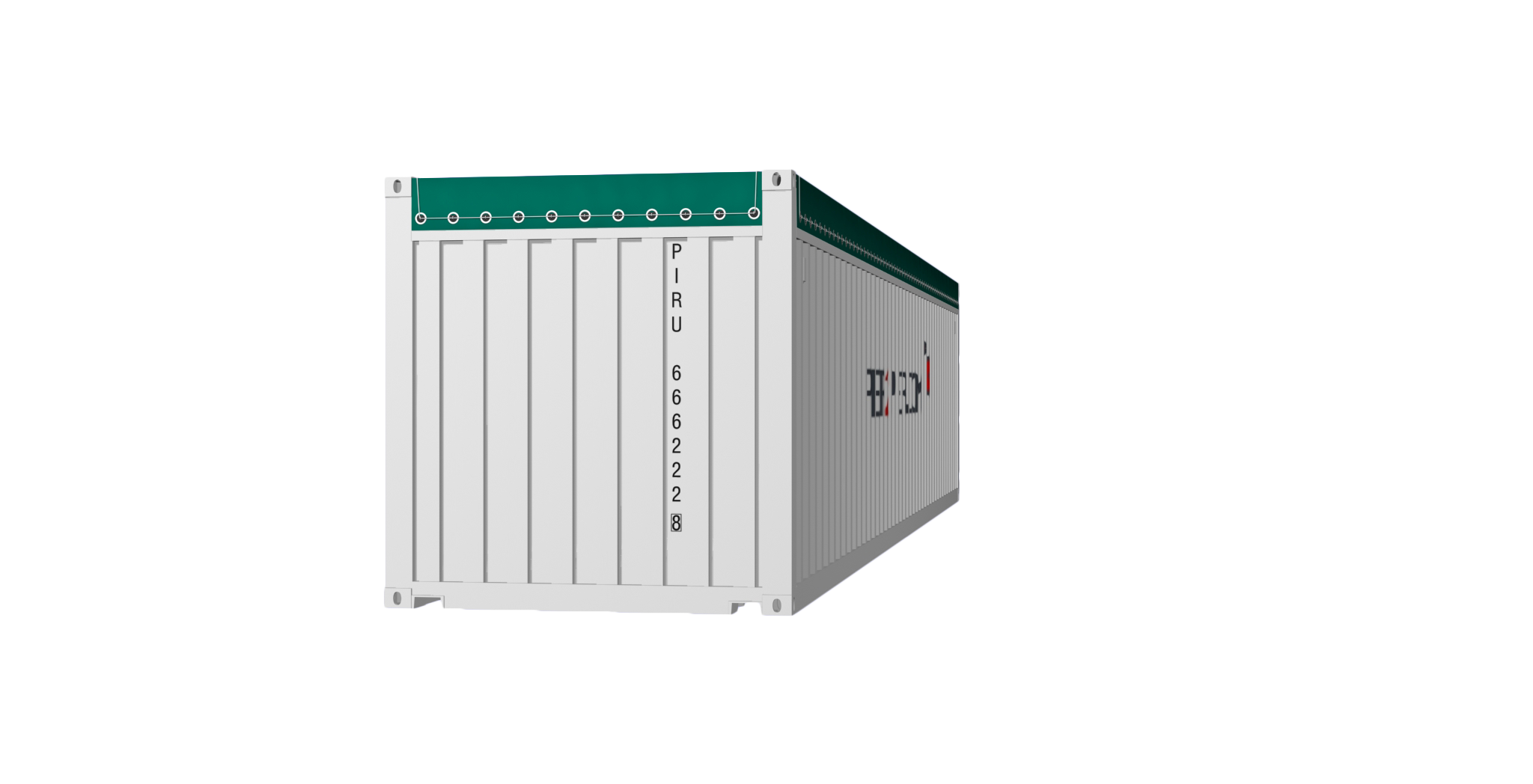

40Opentop container picture rotated 190 degrees - Prefix PIRU

40Opentop container picture rotated 200 degrees - Prefix PIRU

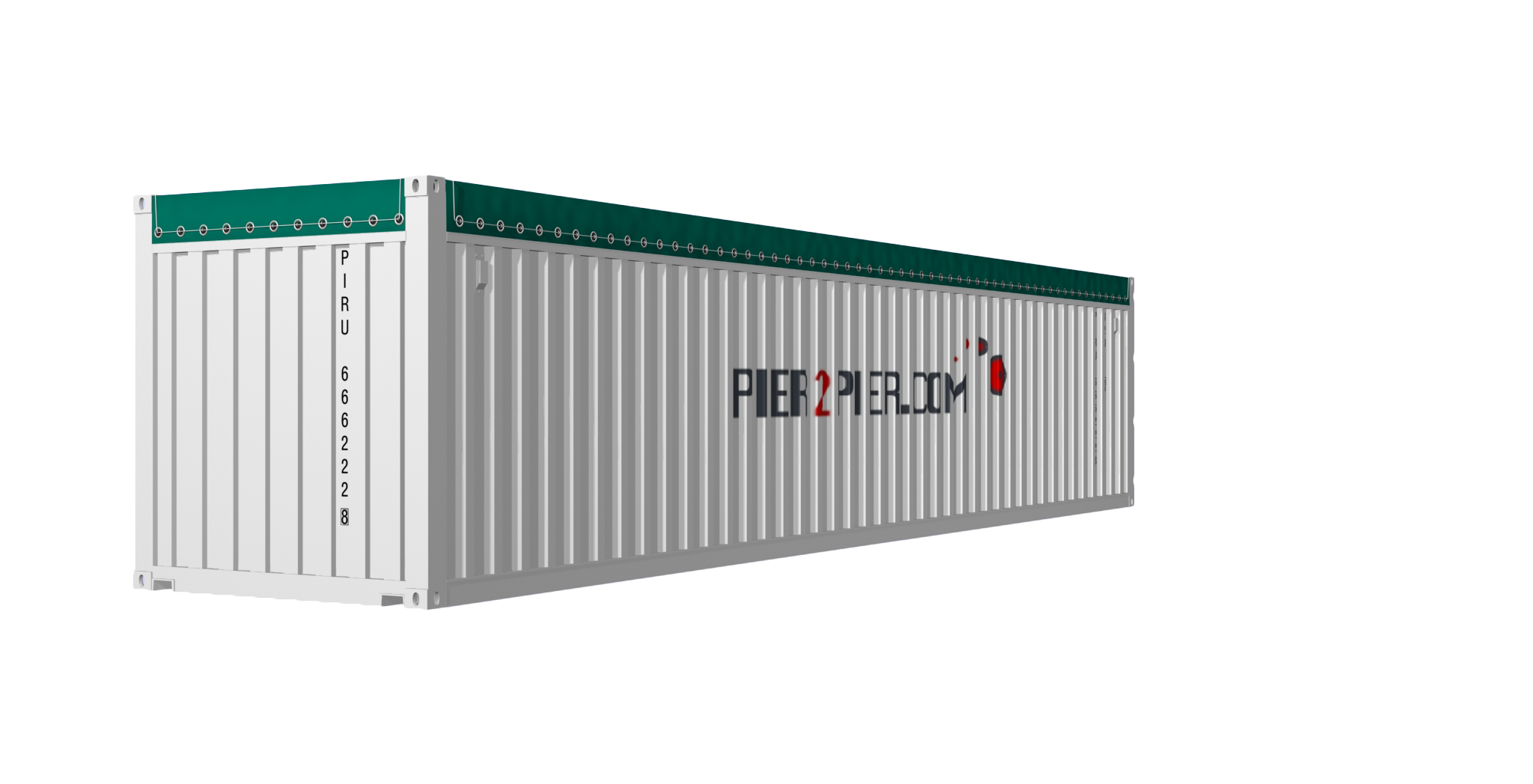

40Opentop container picture rotated 210 degrees - Prefix PIRU

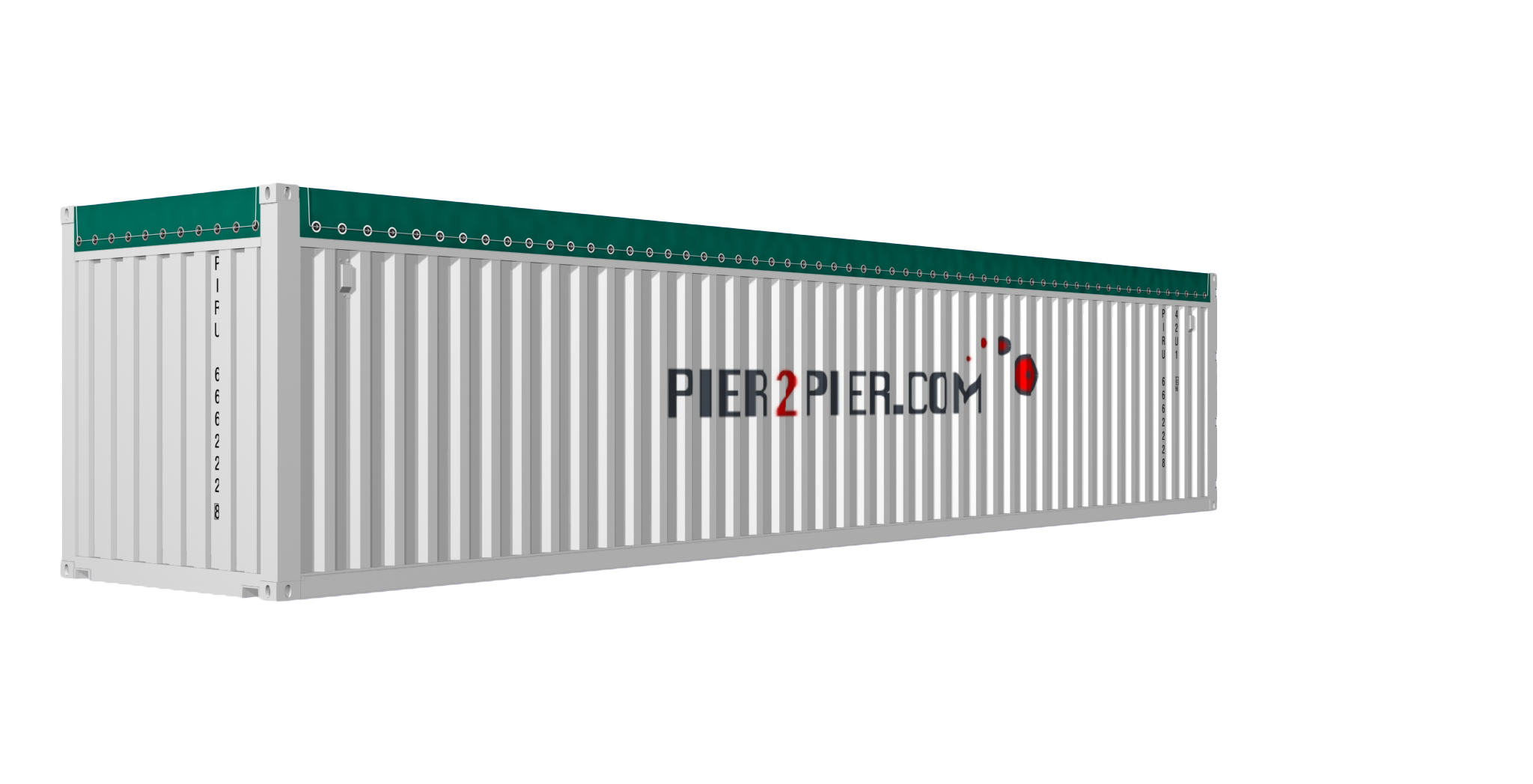

40Opentop container picture rotated 220 degrees - Prefix PIRU

40Opentop container picture rotated 230 degrees - Prefix PIRU

40Opentop container picture rotated 240 degrees - Prefix PIRU

40Opentop container picture rotated 250 degrees - Prefix PIRU

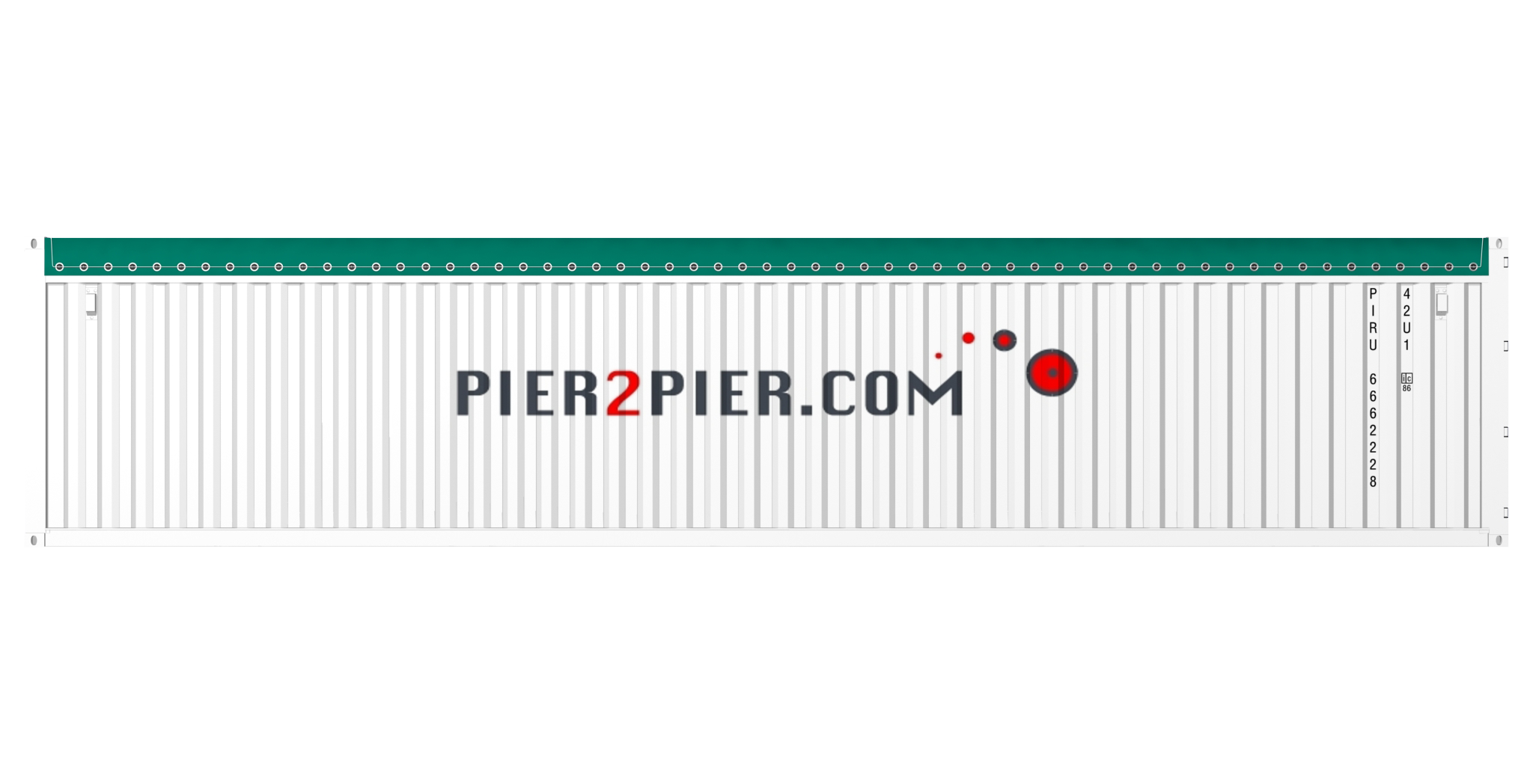

40Opentop container picture rotated 270 degrees - Prefix PIRU

40Opentop container picture rotated 280 degrees - Prefix PIRU

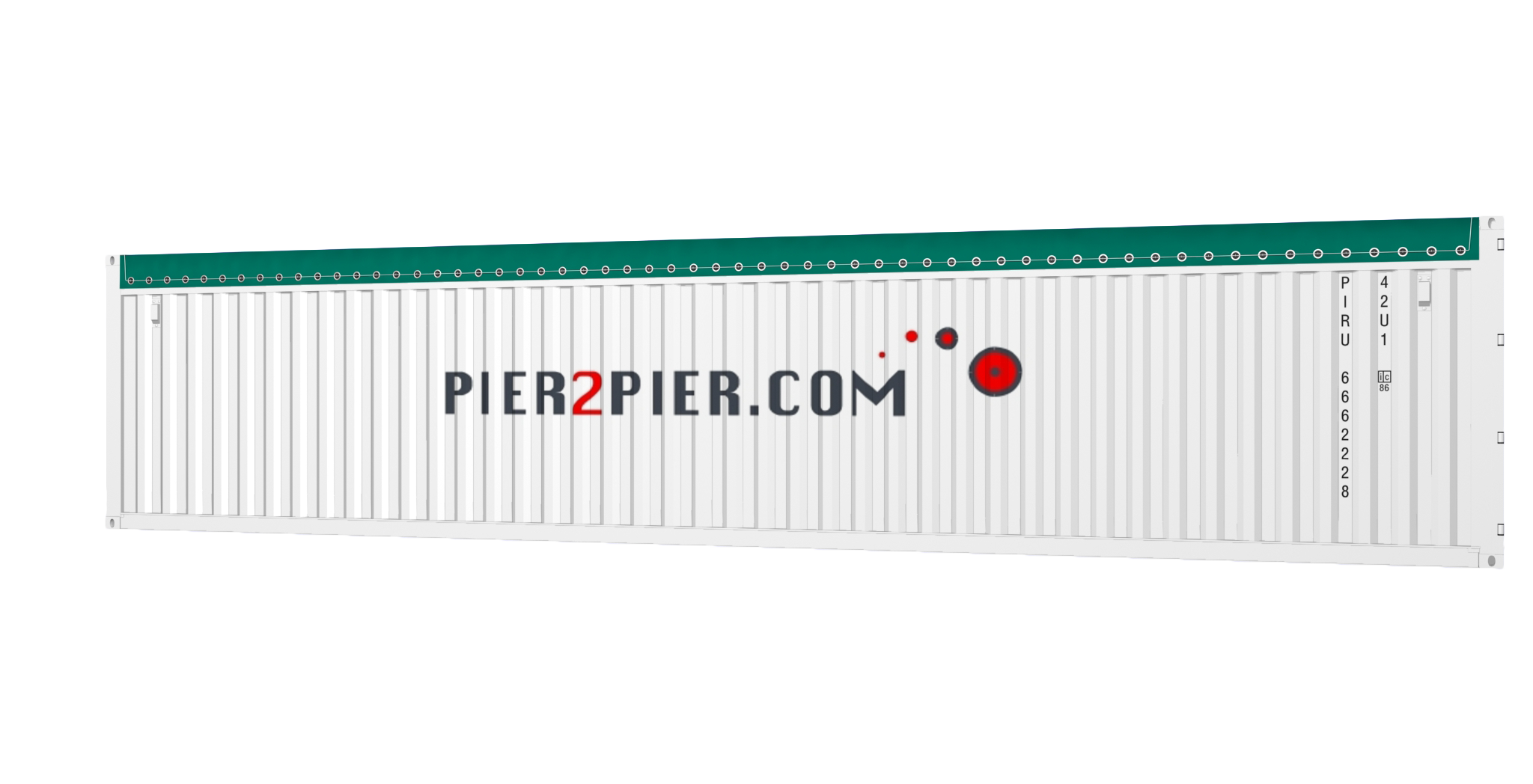

40Opentop container picture rotated 290 degrees - Prefix PIRU

40Opentop container picture rotated 300 degrees - Prefix PIRU

40Opentop container picture rotated 310 degrees - Prefix PIRU

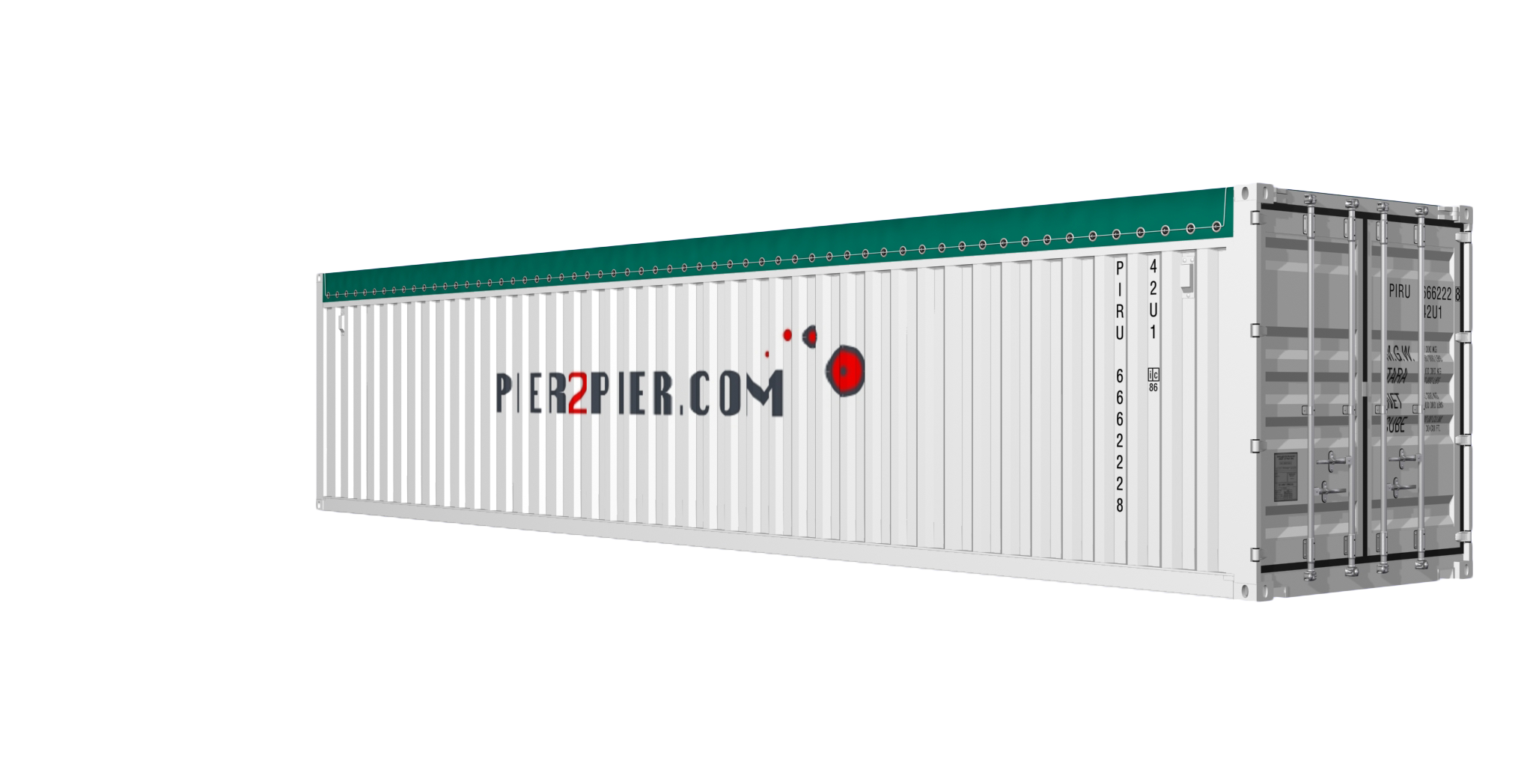

40Opentop container picture rotated 320 degrees - Prefix PIRU

40Opentop container picture rotated 330 degrees - Prefix PIRU

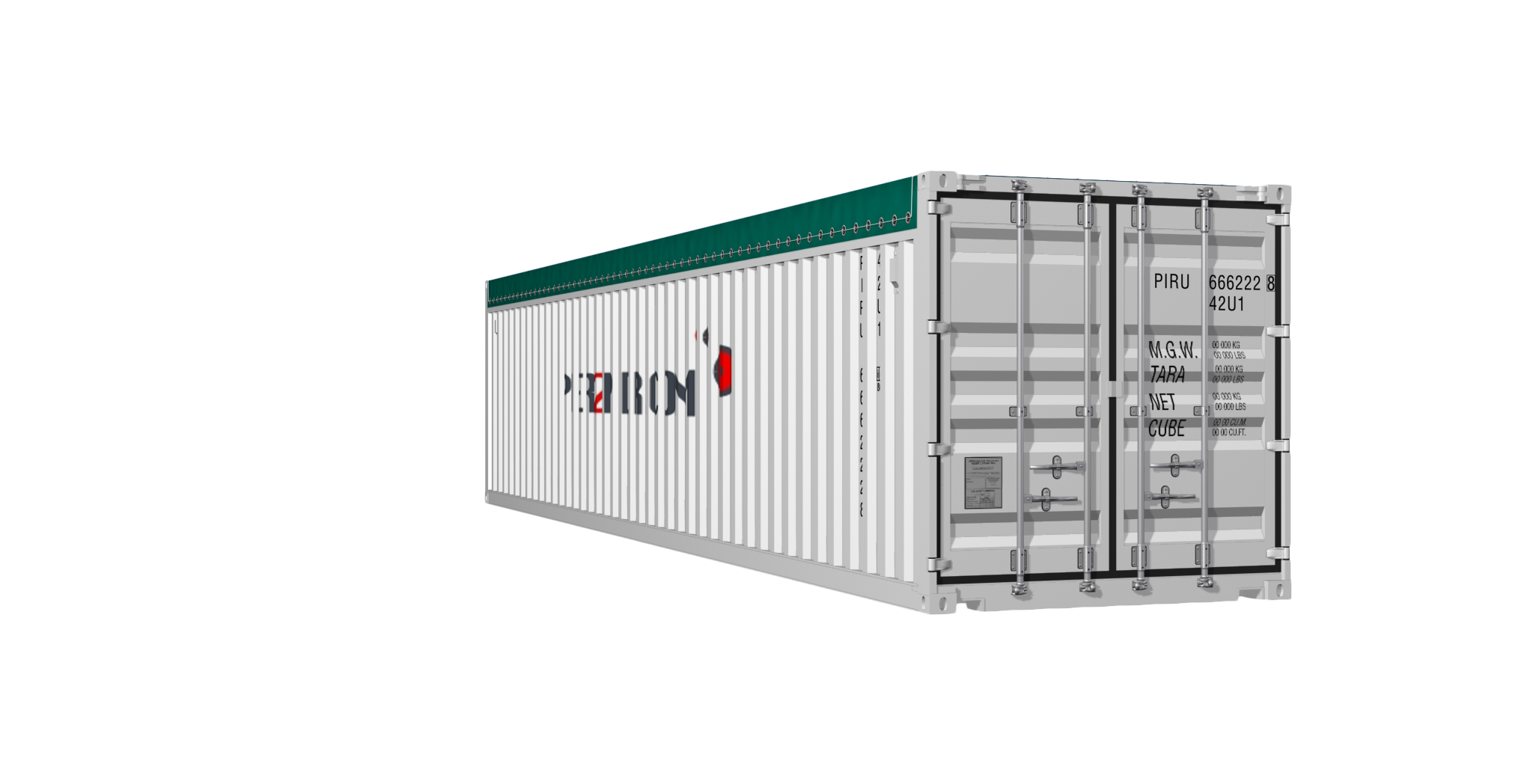

40Opentop container picture rotated 340 degrees - Prefix PIRU

40Opentop container picture rotated 350 degrees - Prefix PIRU

40Opentop container picture rotated 0 degrees - Prefix PIRU

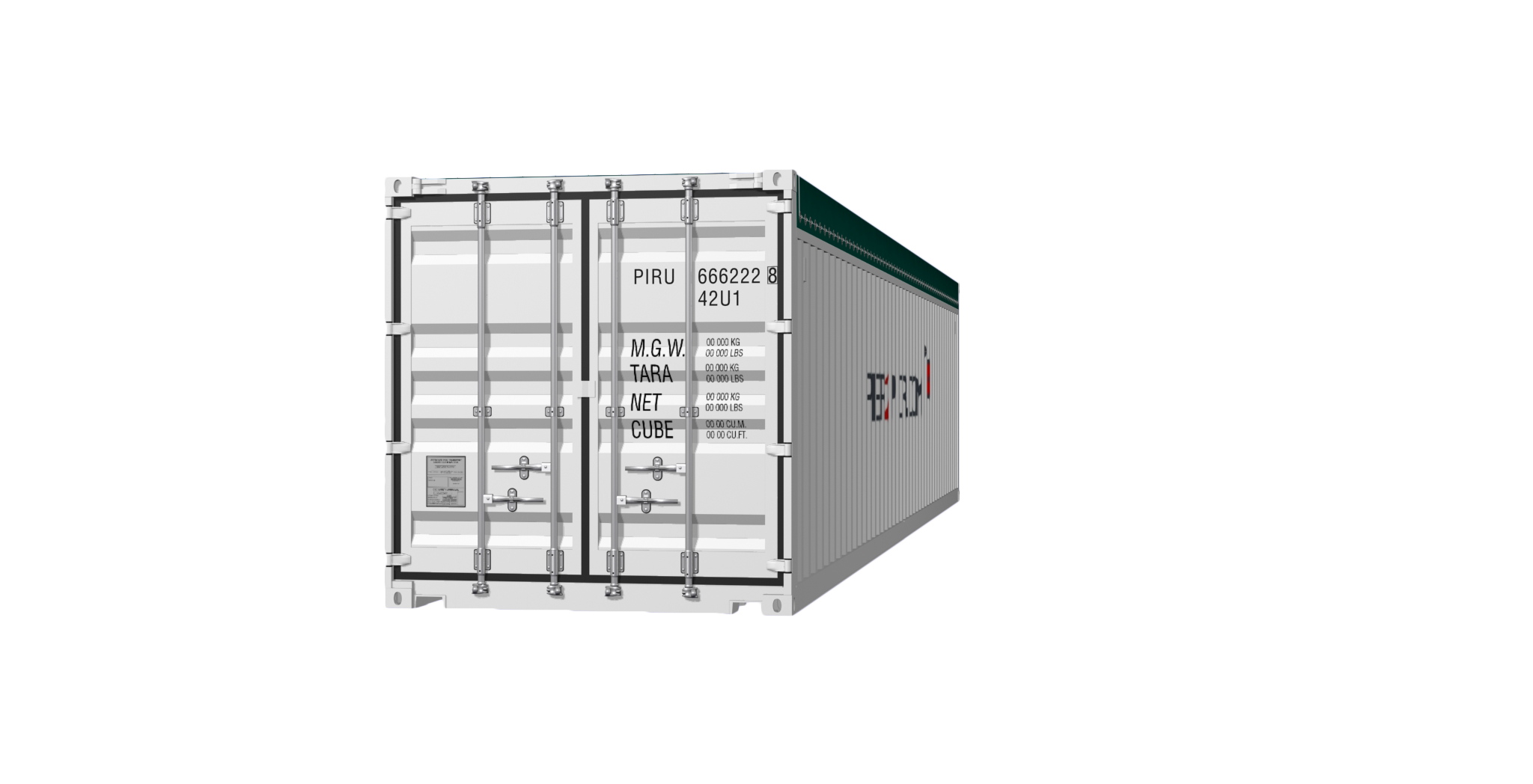

40Opentop container picture rotated 10 degrees - Prefix PIRU

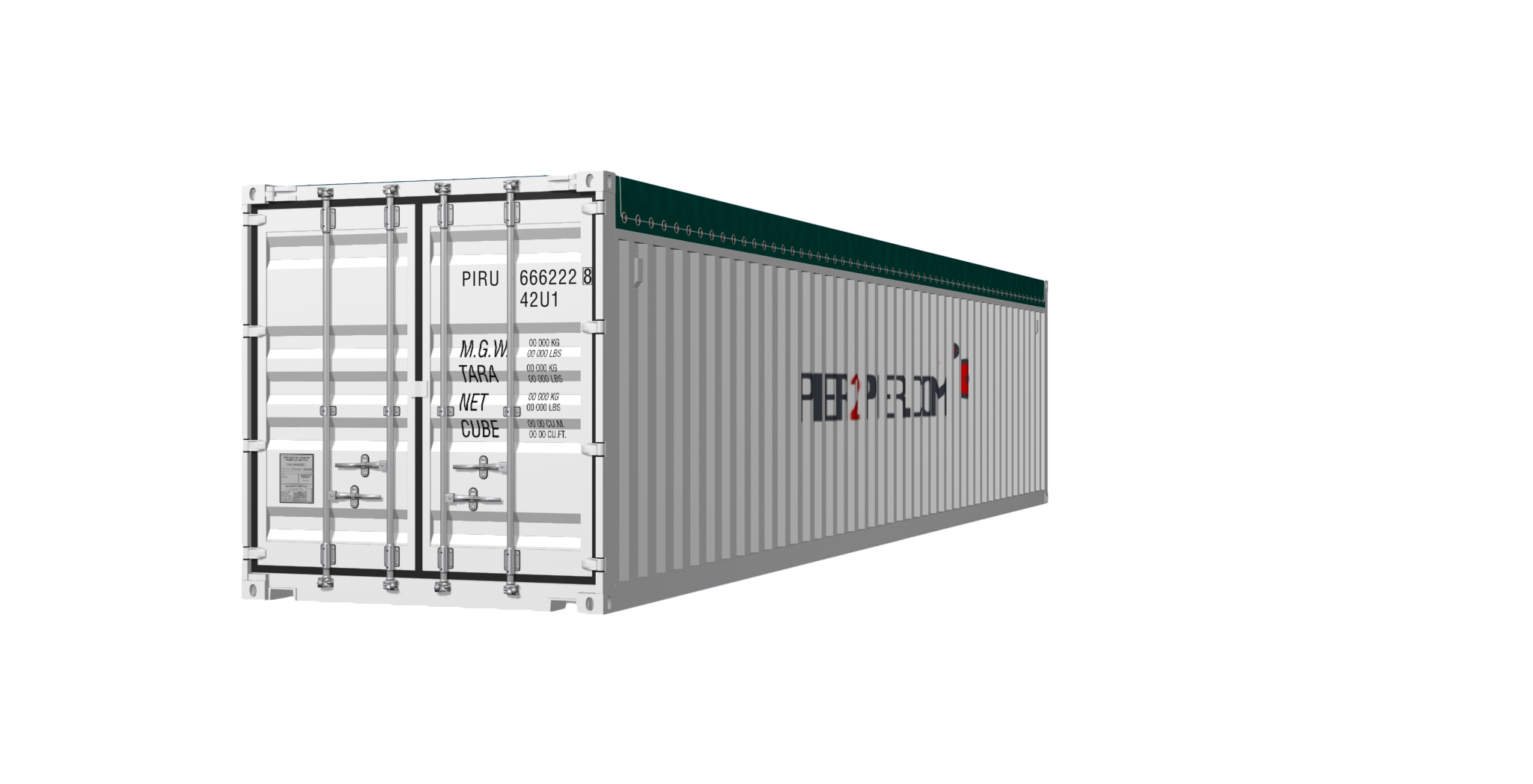

40Opentop container picture rotated 20 degrees - Prefix PIRU

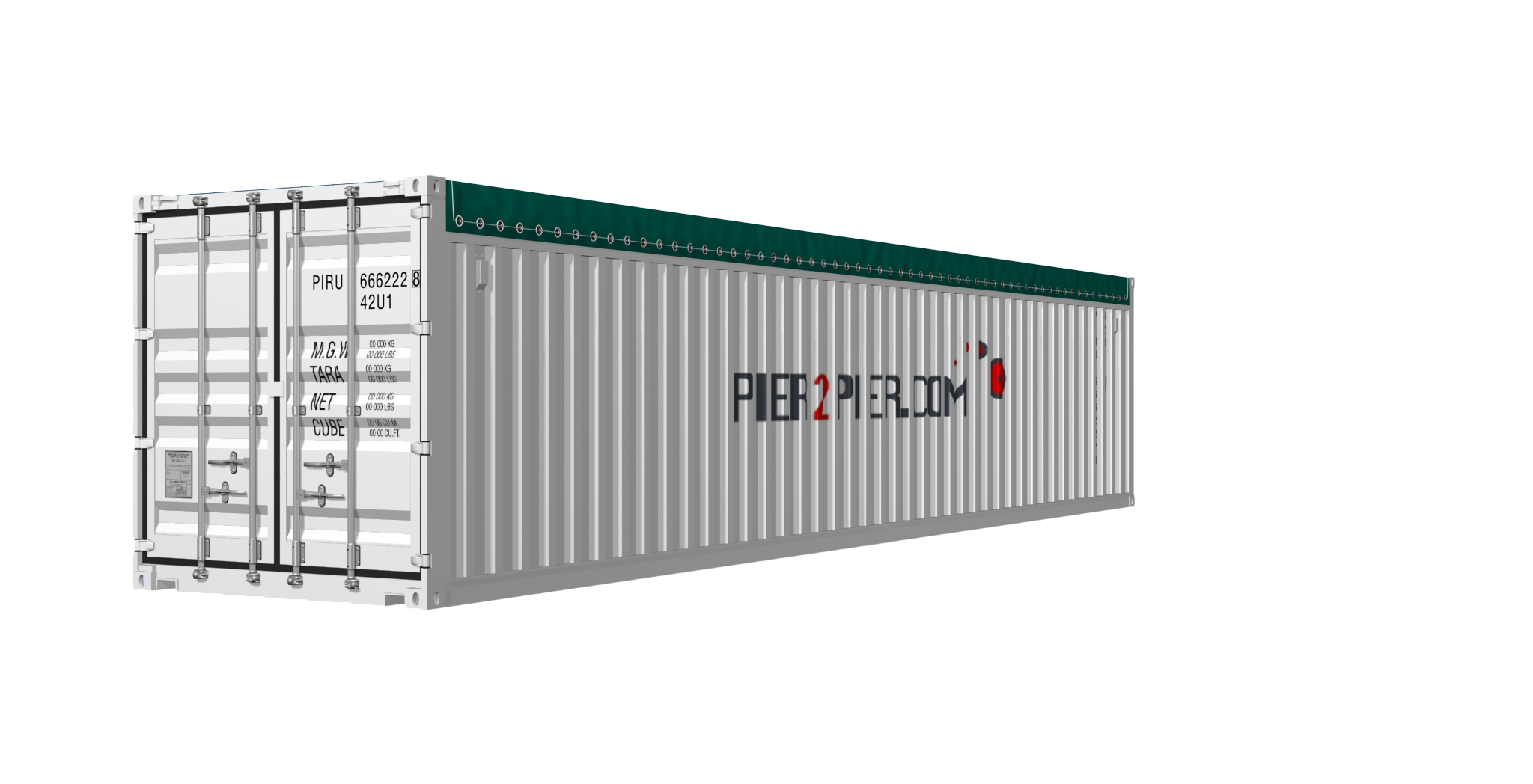

40Opentop container picture rotated 30 degrees - Prefix PIRU
